Passenger Compartment Trims 2

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Passenger Compartment Trims 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

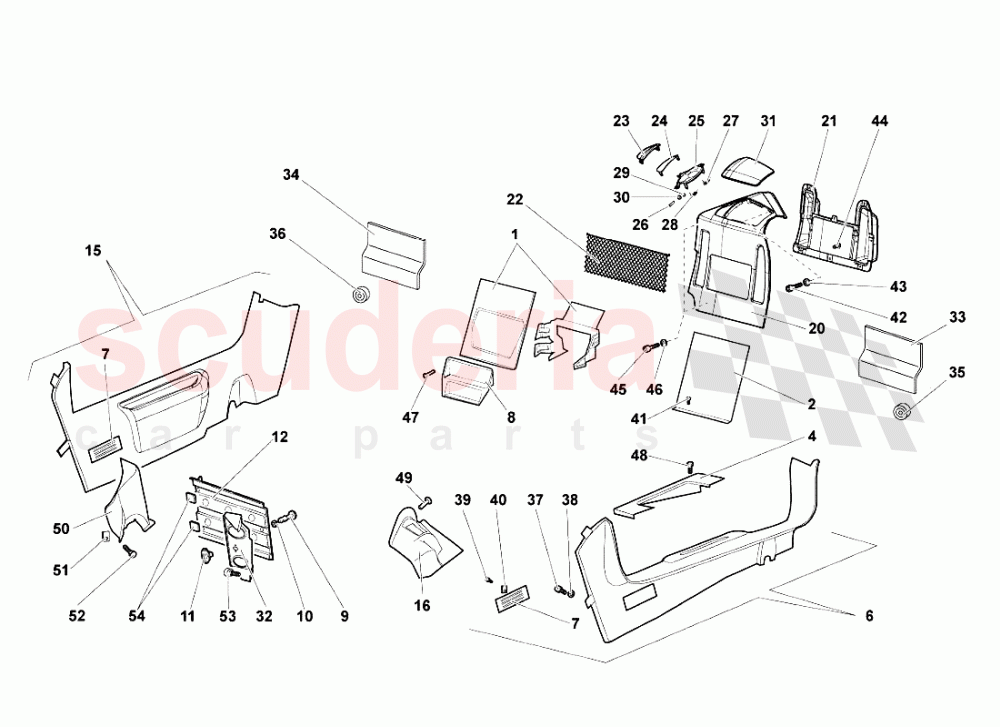

Passenger Compartment Trims 2 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 417867477
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND LEFT SEAT (Supply VIN) 		$735.62 1
002 417867477B
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND SEAT - DRIVER SIDE (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
002 417867477E
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND SEAT - PASSENGER SIDE (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
002 417867477C
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND SEAT - PASSENGER SIDE (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
002 417867477A
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND SEAT - PASSENGER SIDE (LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
002 417867477D
LOWER REAR UPHOLSTERY ASSEMBLY BEHIND SEAT - DRIVER SIDE (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
004 417711461
COVERING (LEATHER INTERIOR - SUPPLY VIN) 		$668.05 1
004 417711461A
COVERING (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
004 417711461B
COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
006 417854887F
LEFT SIDE MEMBER COVER ASSEMBLY (ALCANTARA UPHOLSTERY -WITHOUT STORAGE COMPARTMENT - SUPPLY VIN) 		- 1 Enquire
006 417854887E
LEFT SIDE MEMBER COVER ASSEMBLY (PERFORATED LEATHER INTERIOR - WITHOUT STORAGE COMPARTMENT - SUPPLY VIN) 		- 1 Enquire
006 417854887D
LEFT SIDE MEMBER COVER ASSEMBLY (LEATHER INTERIOR -WITHOUT STORAGE COMPARTMENT - SUPPLY VIN) 		$2,329.30 1
007 400867397
GRID 		$17.42 2
009 400864519A
JOURNAL 		$16.37 3
010 400864179A
RUBBER RING 		$1.88 (73.4% off) 3
011 470864994
CLIP 		$7.44 3
012 413864420
PLATE 		$170.45 1
015 417854888E
RIGHT SIDE MEMBER COVER ASSEMBLY (LEATHER INTERIOR -WITHOUT STORAGE COMPARTMENT - SUPPLY VIN) 		$2,329.30 1
015 417854888F
RIGHT SIDE MEMBER COVER ASSEMBLY (PERFORATED LEATHER INTERIOR - WITHOUT STORAGE COMPARTMENT - SUPPLY VIN) 		- 1 Enquire
015 417854888G
RIGHT SIDE MEMBER COVER ASSEMBLY (ALCANTARA UPHOLSTERY -WITHOUT STORAGE COMPARTMENT - SUPPLY VIN) 		- 1 Enquire
016 413721585A
ACCELERATOR COVER BOX 		$383.36 1
020 417868223
UPHOLSTERY ASSEMBLY BEHIND LEFT SEAT (Supply VIN) 		$1,835.54 1
020 417868224
UPHOLSTERY ASSEMBLY BEHIND RIGHT SEAT (Supply VIN) 		$1,835.54 1
021 417867404
REAR UPHOLSTERY ASSEMBLY BEHIND RIGHT SEAT (Supply VIN) 		$932.77 1
021 417867403
REAR UPHOLSTERY ASSEMBLY BEHIND LEFT SEAT (Supply VIN) 		$931.51 1
022 417867613
NET 		$63.95 1
023 417868442
RIGHT ROTATING FLAP UPHOLSTERY ASSEMBLY (Supply VIN) 		$198.60 1
023 417868441
LEFT ROTATING FLAP UPHOLSTERY ASSEMBLY (Supply VIN) 		$198.60 1
024 417863494
RIGHT INTERIOR COVER 		$111.52 1
024 417863493
LEFT INTERIOR COVER 		$111.52 1
025 417867827
LH BRACKET 		$170.45 1
025 417867828
RH BRACKET 		$170.45 1
026 410868280
JOURNAL 		$11.87 4
027 417867546
RIGHT SPRING 		$12.12 2
028 417867733
LEFT SPRING 		$12.12 2
029 410863191
RING 		$0.79 (89.1% off) 4
030 N01152221
WASHER
IN STOCK 		$0.23 (96.9% off) 4
031 418863576
RIGHT ROLL BAR COVER ASSEMBLY (Supply VIN) 		$397.16 1
031 418863575
LEFT ROLL BAR COVER ASSEMBLY (Supply VIN) 		$380.84 1
032 413864775
SUPPORT (Supply VIN) 		$139.23 1
033 417867385
PROTECTION 		$5.26 1
034 417867385A
PROTECTION 		$6.49 1
035 63000321
TAPE (1 M) 		$9.58 (7.9% off) 1
036 63000321
TAPE (1 M) 		$9.58 (7.9% off) 1
037 N10648502
SCREW M5X10
IN STOCK 		$1.24 (82.7% off) 4
038 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 4
039 WHT003102
SCREW 2.9X13
IN STOCK 		$0.12 (98.4% off) 4
040 WHT003424
CLIP
IN STOCK 		$0.83 (88.6% off) 4
041 WHT003065
SCREW (2,9X16)
IN STOCK 		$1.24 (82.7% off) 6
042 WHT003111
SCREW M5X16
IN STOCK 		$1.08 (85% off) 4
043 N10612001
WASHER
IN STOCK 		$0.50 4
044 400867299
FASTENER LYS FUSION, YELLOW
IN STOCK 		$16.69 4
045 N10648502
SCREW M5X10
IN STOCK 		$1.24 (82.7% off) 6
046 N10612001
WASHER
IN STOCK 		$0.50 6
047 N91153701
POP RIVET
IN STOCK 		$0.62 (91.5% off) 5
048 N10406504
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.89 (73.8% off) 3
049 N91153701
POP RIVET
IN STOCK 		$0.62 (91.5% off) 5
053 N91126601
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.24 (83% off) 2
054 410863939
DAMPING ELEMENT 		$2.25 4
