Brake System

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Brake System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

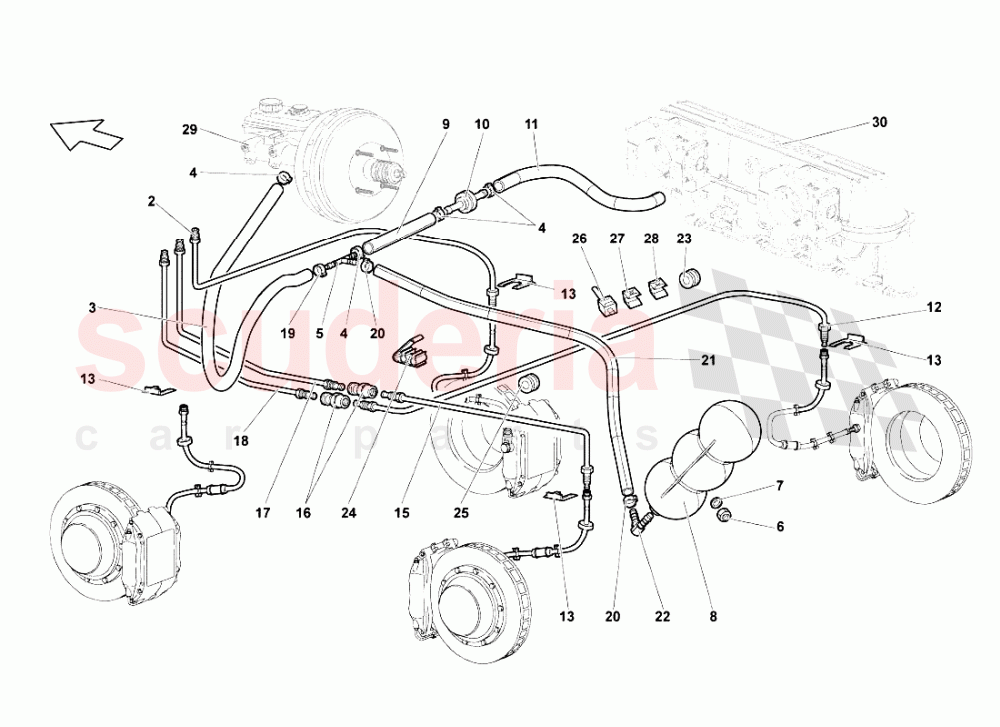

Brake System of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 410611724B
RIGHT PIPE 		$138.17 1
003 413611971A
BRAKE BOOSTER/VACUUM FLEXIBLE HOSE 		$50.80 1
004 N10201901
CLAMP 		$1.93 (72.8% off) 4
005 400611921
CONNECTOR 		$1.87 (73.4% off) 1
006 WHT003112
NUT M5 		$0.65 2
007 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.03 2
008 443131541
VACUUM TANK ASSEMBLY 		$32.13 1
009 401611971A
PIPE FROM VALVE VACUUM TANK 		$76.67 1
010 410616807
VALVE 		$33.14 1
011 410611937A
VACUUM MANIFOLD BRANCH 		$80.16 1
012 410611748B
RIGHT CALIPER FLEXIBLE/CONNECTION 		$149.36 1
013 191611715
HOSE BRACKET 		$1.93 (73% off) 4
015 410611747B
LEFT CALIPER FLEXIBLE/CONNECTION 		$114.75 1
016 400611809
CONNECTING PIECE 		$39.66 2
017 410611745B
LEFT CENTRAL/CONNECTION PIPE 		$126.32 1
018 410611746B
RIGHT CENTRAL/CONNECTION PIPE 		$126.32 1
019 N0245097
CLAMP 		$16.94 1
020 400251189E
CLAMP 		$13.44 1
021 410611939
HOSE 		$112.15 1
022 400612173
CONNECTOR 		$1.32 (81.6% off) 1
023 400820287
FAIRLEAD 18,5X25X1,5 		$9.04 1
024 1H0611797
SUPPORT 		$2.17 (69.6% off) 1
025 410801988
FAIRLEAD 12X20X1,5 		$51.09 1
026 400611757
JOURNAL
IN STOCK 		$1.93 (72.6% off) 25
027 400611799
BRACKET 0 5 MM
IN STOCK 		$0.72 (90.1% off) 21
028 400971848
BRACKET 0 6 MM
IN STOCK 		$0.59 (91.9% off) 4
