Lamborghini Murcielago LP640 Roadster - Steering 1

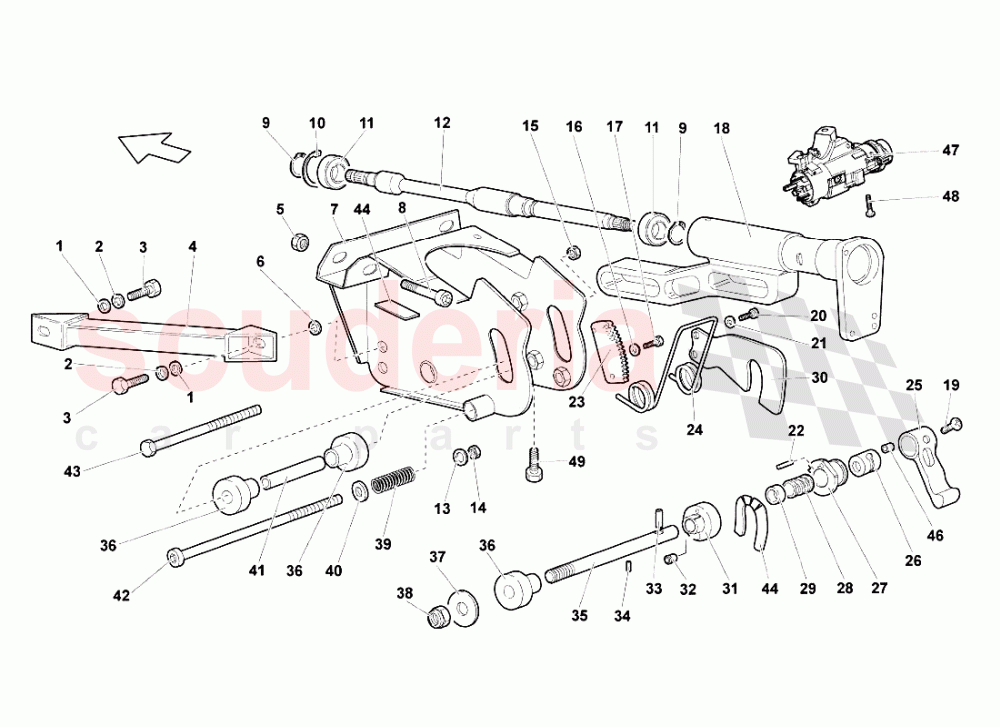

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.44	2
002	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	2
003	N01024032	SCREW M8X20 IN STOCK	N01024032 SCREW M8X20 IN STOCK	$2.70 MSRP: ~~7.19~~ (62.4% off)	2
004	417419281A	STRUT	417419281A STRUT	$290.61	1
005	N10609202	HEXAGON COLLAR NUT IN STOCK	N10609202 HEXAGON COLLAR NUT IN STOCK	$0.35	2
006	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	$4.27	1
007	417419087A	SUPPORT	417419087A SUPPORT	$764.04	1
008	N10651701	SCREW	N10651701 SCREW	$3.66 MSRP: ~~7.14~~ (48.7% off)	2
009	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	2
010	WHT002647	RETAINING RING IN STOCK	WHT002647 RETAINING RING IN STOCK	$3.14 MSRP: ~~7.27~~ (56.8% off)	1
011	410419905	BEARING	410419905 BEARING	$59.37	2
012	410419967A	SHAFT	410419967A SHAFT	$190.39	1
013	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	1
014	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.94	1
015	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.94	1
016	WHT001187	WASHER IN STOCK	WHT001187 WASHER IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	2
017	N0447347	SCREW M5X16	N0447347 SCREW M5X16	$8.89	2
018	410419561A	STEERING COLUMN SUPPORT (E-GEAR)	410419561A STEERING COLUMN SUPPORT (E-GEAR)	$1,540.61	1
018	410419561	STEERING COLUMN SUPPORT (MANUAL GEARBOX)	410419561 STEERING COLUMN SUPPORT (MANUAL GEARBOX)	$1,540.61	1
019	WHT003308	SCREW M4X8 (STANDARD)	WHT003308 SCREW M4X8 (STANDARD)	$0.83 MSRP: ~~7.29~~ (88.6% off)	2
020	N10580702	SCREW	N10580702 SCREW	$5.54	2
021	N10612001	WASHER IN STOCK	N10612001 WASHER IN STOCK	$0.50	2
022	N10692901	PIN	N10692901 PIN	$12.05	1
023	410419301	TOOTHED STRIKER	410419301 TOOTHED STRIKER	$130.88	1
024	410419341	SPRING	410419341 SPRING	$178.49	1
025	410419355	LEVER	410419355 LEVER	$631.28	1
026	410419202	SLEEVE	410419202 SLEEVE	$542.34	1
027	410422283	TOOTHED TAPPET	410422283 TOOTHED TAPPET	$172.86	1
028	410419209	SPRING	410419209 SPRING	$14.86	1
029	410419758	WASHER	410419758 WASHER	$58.55	1
030	410419522A	COVER	410419522A COVER	$45.23	1
031	410419588	SPACER	410419588 SPACER	$292.48	1
032	410419811A	POSITION BALL	410419811A POSITION BALL	$39.72	1
033	N10693001	CYLINDER PIN IN STOCK	N10693001 CYLINDER PIN IN STOCK	$1.62 MSRP: ~~7.16~~ (77.4% off)	1
034	WHT003591	PIN	WHT003591 PIN	$12.60	1
035	410419645A	JOURNAL	410419645A JOURNAL	$349.45	1
036	410419588A	SPACER	410419588A SPACER	$52.61	1
037	410407295D	WASHER	410407295D WASHER	$27.70	1
038	N90635001	NUT M12	N90635001 NUT M12	$1.76 MSRP: ~~7.11~~ (75.2% off)	1
039	410419598	SPRING	410419598 SPRING	$22.73	1
040	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	1
041	410419331B	BUSHING	410419331B BUSHING	$65.77	1
042	WHT003070	SCREW M6X90	WHT003070 SCREW M6X90	$2.65	1
043	N01037511	SCREW M8X75	N01037511 SCREW M8X75	$13.59	1
044	410419780	GASKET	410419780 GASKET	$8.71	1
046	410419811	POSITION BALL	410419811 POSITION BALL	$12.96	1
047	4B0905851Q	IGNITION SWITCH SET	4B0905851Q IGNITION SWITCH SET	$175.35	1
048	410905133	SCREW M8X22	410905133 SCREW M8X22	$3.71	2
049	N01024032	SCREW M8X20 IN STOCK	N01024032 SCREW M8X20 IN STOCK	$2.70 MSRP: ~~7.19~~ (62.4% off)	2
