Fuel System 1 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

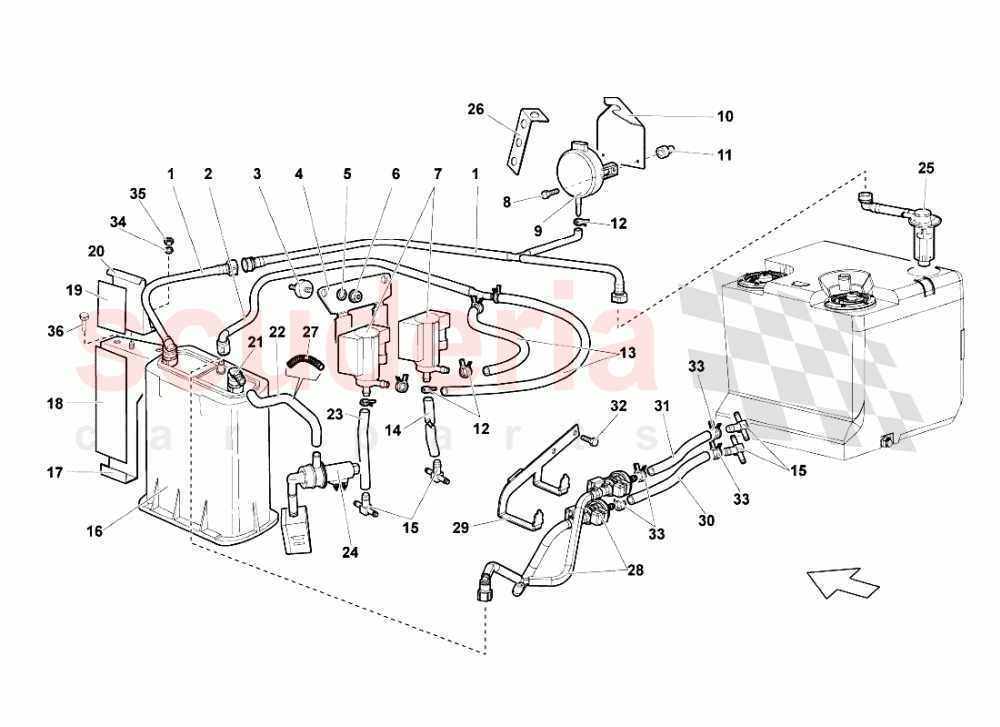

Lamborghini Murcielago LP640 Roadster - Fuel System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410201163	PIPE	410201163 PIPE	$243.89	1
005	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	4
008	WHT001389	SCREW M3X0,5X16	WHT001389 SCREW M3X0,5X16	$0.91 MSRP: ~~7.24~~ (87.4% off)	2
009	400906206C	EVAPORATIVE EMISSION CONTROL SENSOR	400906206C EVAPORATIVE EMISSION CONTROL SENSOR	$1,857.64	1
010	417906217	SUPPORT	417906217 SUPPORT	$68.17	1
011	400906310	PUFFER	400906310 PUFFER	$2.01 MSRP: ~~7.03~~ (71.4% off)	2
015	470133794A	T-PIECE	470133794A T-PIECE	$98.45	2
016	400201799	VAPOUR FILTER IN STOCK	400201799 VAPOUR FILTER IN STOCK	$284.56	1
017	410201898A	SUPPORT	410201898A SUPPORT	$117.31	1
018	410201119	GASKET	410201119 GASKET	$2.01 MSRP: ~~7.04~~ (71.4% off)	1
019	410201309	GASKET	410201309 GASKET	$5.39	1
020	410201827A	SUPPORT	410201827A SUPPORT	$580.31	1
021	410133022A	CONNECTOR	410133022A CONNECTOR	$42.47	1
022	410133739	PIPE	410133739 PIPE	$62.53	1
024	400906311	CANISTER FILTER VALVE + WIRING HARNESS ASSEMBLY	400906311 CANISTER FILTER VALVE + WIRING HARNESS ASSEMBLY	$86.49	1
025	410201521	FLOATING VALVE	410201521 FLOATING VALVE	$675.36	1
026	410971789A	BRACKET	410971789A BRACKET	$53.08	1
027	410133524	SPRING	410133524 SPRING	$61.17	1
028	410133366A	Y-CONNECTOR/CANISTER PIPE ASSEMBLY	410133366A Y-CONNECTOR/CANISTER PIPE ASSEMBLY	$213.86	1
029	410906285C	SUPPORT	410906285C SUPPORT	$57.92	1
030	410133595B	PIPE	410133595B PIPE	$312.66	1
031	410133606C	PIPE	410133606C PIPE	$312.66	1
032	N90833102	SCREW M6X10 IN STOCK	N90833102 SCREW M6X10 IN STOCK	$1.33 MSRP: ~~7.30~~ (81.8% off)	2
033	N90686701	SPRING BAND CLAMP IN STOCK	N90686701 SPRING BAND CLAMP IN STOCK	$1.88 MSRP: ~~7.11~~ (73.6% off)	4
034	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	3
035	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.07	1
036	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$1.33 MSRP: ~~7.30~~ (81.8% off)	2
