Water Cooling System 1 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

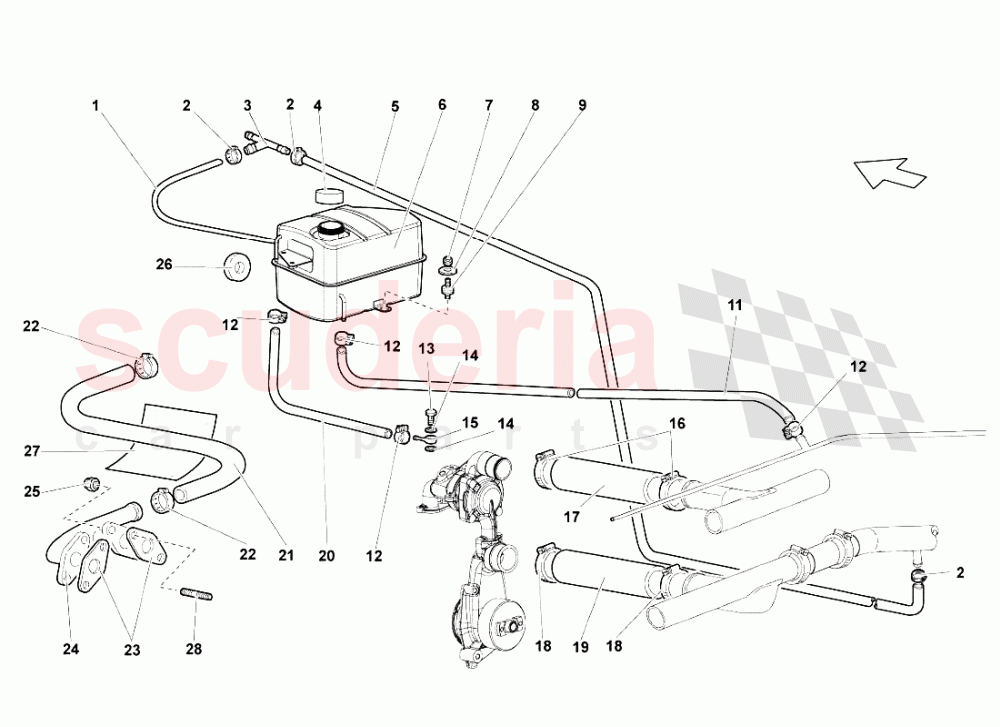

Lamborghini Murcielago LP640 Roadster - Water Cooling System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M121109	PIPE	7M121109 PIPE	$18.43	1
002	N90293002	CLAMP	N90293002 CLAMP	$1.76 MSRP: ~~7.09~~ (75.2% off)	2
003	7M121087	CONNECTOR	7M121087 CONNECTOR	$198.03	1
004	7M121482	FILLER CAP IN STOCK	7M121482 FILLER CAP IN STOCK	$33.99	1
005	7M121127	SLEEVE	7M121127 SLEEVE	$110.66	1
006	7M121407C	TANK	7M121407C TANK	$1,340.82	1
007	WHT002953	NUT M6	WHT002953 NUT M6	$3.27	1
008	N91115501	WASHER	N91115501 WASHER	$1.16 MSRP: ~~7.33~~ (84.2% off)	1
009	400972081B	FLEXIBLE SUPPORT	400972081B FLEXIBLE SUPPORT	$67.67	3
011	7M121448	PIPE	7M121448 PIPE	$37.59	1
012	N91130601	CLAMP	N91130601 CLAMP	$34.53 MSRP: ~~59.60~~ (42.1% off)	4
013	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$26.19	1
014	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.69 MSRP: ~~7.33~~ (49.7% off)	2
015	N91104301	BANJO FITTING	N91104301 BANJO FITTING	$34.35	1
016	WHT003080	CLAMP IN STOCK	WHT003080 CLAMP IN STOCK	$5.69	2
017	7M121163	SLEEVE	7M121163 SLEEVE	$122.56	1
018	WHT003080	CLAMP IN STOCK	WHT003080 CLAMP IN STOCK	$5.69	2
019	7M121057	PIPE	7M121057 PIPE	$93.10	1
020	7M121500	PIPE	7M121500 PIPE	$40.12	1
021	410819370	Sleeve for Auxiliary Water Pump IN STOCK	410819370 Sleeve for Auxiliary Water Pump IN STOCK	$61.09	1
022	N90409501	CLAMP IN STOCK	N90409501 CLAMP IN STOCK	$1.11 MSRP: ~~7.22~~ (84.6% off)	2
023	7M121091	GASKET IN STOCK	7M121091 GASKET IN STOCK	$41.18	2
024	7M121076C	CONNECTOR	7M121076C CONNECTOR	$1,209.50	1
025	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.08	4
026	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$10.85	2
027	8D0971461	PROTECTION	8D0971461 PROTECTION	$12.91 MSRP: ~~14.90~~ (13.4% off)	1
028	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.29	4
