Lamborghini Murcielago LP640 - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

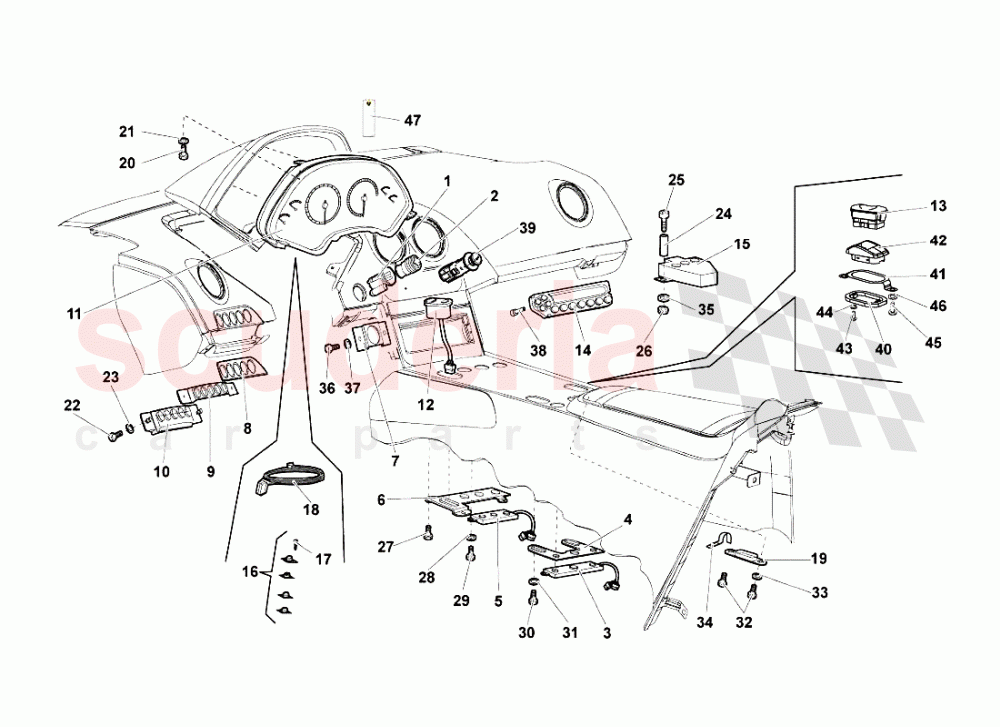

Dashboard Instruments of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410857529
RING 		$85.44 1
002 410919307
LIGHTER 		$59.25 1
003 418927127A
ANSOR KEYBOARD IN THE GEARBOX REAR SIDE 		$3,184.11 1
004 418858092B
FRAME (MANUAL GEARBOX) 		$609.37 1
005 413927143
ANSOR KEYBOARD IN THE GEARBOX FRONT SIDE 		$4,851.08 1
006 418858091
FRAME 		$608.10 1
007 410858023
BRACKET 		$62.07 1
008 413863365C
FRAME (KLAVIERLACK INTERIOR) 		$1,101.32 1
008 413864147
FRAME 		$199.78 1
008 413863365B
FRAME (CARBON INTERIOR LIGHT) 		$1,056.38 1
008 413863365A
FRAME (CARBON INTERIOR - SUPPLY VIN) 		$3,315.22 1
009 413864107
BRACKET 		$463.36 1
010 413941567A
ANSOR KEYBOARD IN THE DASHBOARD (E-GEAR) 		$2,266.83 1
010 413941567
ANSOR KEYBOARD IN THE DASHBOARD (MANUAL GEARBOX) 		$1,486.25 1
011 410920901A
INSTRUMENT PANEL ASSEMBLY (WARNING USE REF. 47) 		$4,451.50 1
012 410959565A
SIDE VIEW MIRRORS SWITCH 		$844.12 1
013 410919815A
RH/LH POWER WINDOW SWITCH
IN STOCK 		$425.80 1
014 410820043B
DIAVIA A/C DASHBOARD ASSEMBLY 		$3,671.10 1
015 418919823A
E-GEAR CONTROL PANEL 		$5,525.37 1
016 410919225
Button Set (For VDO parts)
IN STOCK 		$501.82 1
017 WHT003297
SCREW 2.2X6.5 		$0.33 (95.5% off) 8
018 410971315B
HARNESS BUTTONS SET 		$201.09 1
020 WHT003088
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$0.44 (94% off) 2
020 N90455205
SCREW M4X10
IN STOCK 		$1.15 (84.1% off) 2
021 N01152221
WASHER
IN STOCK 		$0.23 (96.9% off) 4
022 N01020717
SCREW M5X12
IN STOCK 		$1.24 (83% off) 2
023 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 2
024 410857441
SPACER 		$202.92 2
025 N91078401
SCREW 		$15.24 2
026 WHT002953
NUT M6 		$3.26 2
027 WHT003067
SCREW M4X10 (CARBON INTERIOR) 		$3.13 4
028 N0115359
WASHER 		$44.70 4
029 WHT003084
SCREW M3X12 		$11.06 4
030 WHT003110
SCREW M4X10 		$5.32 4
034 410864191
SUPPORT (E-GEAR) 		$51.26 2
035 WHT002961
WASHER
IN STOCK 		$0.39 2
036 N10580702
SCREW 		$5.52 2
037 N10612001
WASHER
IN STOCK 		$0.50 2
038 N10613301
SCREW M3X8
IN STOCK 		$1.09 (85.1% off) 2
039 7M3919311
OUTLET 12V (NON SMOKING VERSION) 		$7.05 1
040 410858781
FRAME 		$763.11 2
041 410858092
SUPPORT (E-GEAR) 		$146.73 2
042 410858099A
FRAME (RH/LH POWER WINDOW SWITCH) 		$544.44 2
043 N10613301
SCREW M3X8
IN STOCK 		$1.09 (85.1% off) 4
044 N01152221
WASHER
IN STOCK 		$0.23 (96.9% off) 4
045 WHT003110
SCREW M4X10 		$5.32 4
046 N01152221
WASHER
IN STOCK 		$0.23 (96.9% off) 4
047 63000337
NAMEPLATE FOR A INSTRUMENT PANEL 		$3.77 1
