Left Head Timing System 2

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Left Head Timing System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

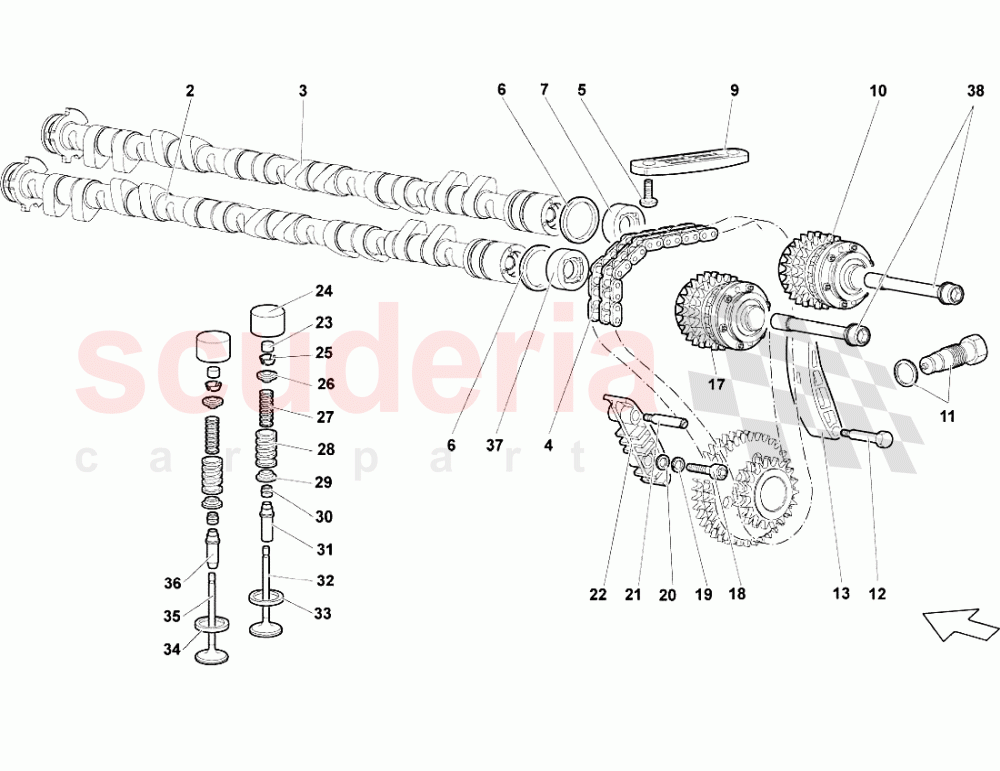

Left Head Timing System 2 of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 7M109303K
INTAKE CAMSHAFT 		$2,470.38 1
003 7M109305H
EXHAUST CAMSHAFT 		$2,470.38 1
004 7M109231C
UPPER TIMING CHAIN
IN STOCK 		$477.81 1
005 N90638102
ROUND HD. SCREW
IN STOCK 		$1.56 (78.5% off) 1
006 7M109349
SEAL RING TIMING SYSTEM
IN STOCK 		$48.33 1
007 7M109423A
SUPPORT 		$1,243.31 1
009 7M109513
SHOE 		$721.74 1
010 7M109084D
EXHAUST PHASE TRANSFORMER 		$2,295.24 1
011 7M109255
Chain Tightener
IN STOCK 		$798.01 1
012 7M109225A
JOURNAL 		$48.78 1
013 7M109508
Shoe
IN STOCK 		$222.05 1
017 7M109083C
INTAKE PHASE TRANSFORMER 		$3,902.55 1
018 WHT003071
SCREW 		$6.44 1
019 WHT001397
WASHER
IN STOCK 		$0.18 (97.6% off) 1
020 WHT002962
WASHER 14X8.4X1.5
IN STOCK 		$0.32 (95.6% off) 1
021 7M109224
JOURNAL 		$51.92 1
022 7M109469
SHOE 		$46.78 1
023 7M109320CA
ADJUSTMENT SHIM (1,85 		$51.35 24
023 7M109320BS
ADJUSTMENT SHIM (1,75 		$51.35 24
023 7M109320BT
ADJUSTMENT SHIM (1,80 		$51.35 24
023 7M109320BR
ADJUSTMENT SHIM (1,70 		$51.35 24
023 7M109320BP
ADJUSTMENT SHIM (1,60 		$51.35 24
023 7M109320CB
ADJUSTMENT SHIM (1,90 		$51.35 24
023 7M109320BQ
ADJUSTMENT SHIM (1,65 		$51.35 24
023 7M109320CN
ADJUSTMENT SHIM (2,45 		$51.35 24
023 7M109320CC
ADJUSTMENT SHIM (1,95 		$51.35 24
023 7M109320CM
ADJUSTMENT SHIM (2,40 		$51.35 24
023 7M109320CP
ADJUSTMENT SHIM (2,50 		$51.35 24
023 7M109320CQ
ADJUSTMENT SHIM (2,55 		$51.35 24
023 7M109320CF
ADJUSTMENT SHIM (2,10 		$49.91 24
023 7M109320CJ
ADJUSTMENT SHIM (2,25 		$49.91 24
023 7M109320CG
ADJUSTMENT SHIM (2,15 		$49.91 24
023 7M109320CE
ADJUSTMENT SHIM (2,05 		$616.65 24
023 7M109320CD
ADJUSTMENT SHIM (2,00 		$51.35 24
023 7M109320CK
ADJUSTMENT SHIM (2,30 		$49.91 24
023 7M109320CL
ADJUSTMENT SHIM (2,35 		$616.65 24
023 7M109320CH
ADJUSTMENT SHIM (2,20 		$49.91 24
024 7M109309A
VALVE CONTROL TAPPET 		$411.62 24
025 36109651B
VALVE COTTER 		$0.28 (96.2% off) 48
026 7M109641A
TAPPET UPPER PLATE 		$45.79 24
027 7M109633B
INNER SPRING 		$11.52 24
028 7M109623B
OUTER SPRING 		$12.75 24
029 7M109642B
TAPPET LOWER PLATE 		$33.27 24
030 57109675
VALVE STEM SEAL
IN STOCK 		$28.88 24
031 7M103416C
EXHAUST VALVE GUIDE 		$148.22 12
032 7M109611A
EXHAUST VALVE 		$113.19 12
033 7M103441A
EXHAUST VALVE SEAT 		$41.67 12
034 7M103431A
INTAKE VALVE SEAT 		$39.54 12
035 7M109601B
INTAKE VALVE 		$90.97 12
036 7M103416B
INTAKE VALVE GUIDE 		$54.79 12
037 7M109423A
SUPPORT 		$1,243.31 1
038 7M109177C
SCREW
IN STOCK 		$55.84 2
