Hydraulic System For Brake Servo

Lamborghini Huracan STO

Illustration Number: 6120200

Find Your Part

Lamborghini Huracan STO - HYDRAULIC SYSTEM FOR BRAKE SERVO (6120200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4S0612105L BRAKE SERVO $722.16 To Order
Photo Part No Description Price (each) Stock
4T0611936D VACUUM HOSE $70.85 To Order
Photo Part No Description Price (each) Stock
4S0611936L VACUUM PIPE $132.71 To Order
Photo Part No Description Price (each) Stock
4S0611931C VACUUM PIPE $53.15 To Order
Photo Part No Description Price (each) Stock
8E0927317K ELECTRIC VACUUM PUMP FOR BRAKE $436.87 To Order
Photo Part No Description Price (each) Stock
4S0614709D RETAINER FOR VACUUM PUMP $33.98 To Order
Photo Part No Description Price (each) Stock
N10406504 OVAL HEXAGON SOCKET HEAD BOLT $1.90 IN STOCK
Photo Part No Description Price (each) Stock
8E0614177A STOP BUFFER $3.14 To Order
Photo Part No Description Price (each) Stock
8E0614177B STOP BUFFER $3.14 IN STOCK
Photo Part No Description Price (each) Stock
4B0614145 CLIP $1.13 IN STOCK
Photo Part No Description Price (each) Stock
N90685101 BRACKET FOR CONNECTOR HOUSING $4.32 To Order
Photo Part No Description Price (each) Stock
4S0611797D BRACKET $7.07 To Order
Photo Part No Description Price (each) Stock
B000750M3 BRAKE FLUID $33.22 To Order
Photo Part No Description Price (each) Stock
WHT003382A 12-POINT HEAD BOLT $13.71 To Order
Photo Part No Description Price (each) Stock
N0206015 CLAMP $2.08 To Order
Photo Part No Description Price (each) Stock
N10255601 CLAMP $1.94 To Order
Photo Part No Description Price (each) Stock
4S2611931F VACUUM HOSE WITH NON-RETURN VALVE AND PRESSURE SENSOR $194.66 To Order
Photo Part No Description Price (each) Stock
8K0260759H BRACKET $5.53 To Order
Photo Part No Description Price (each) Stock
4T0611837 HOLDER FOR VACUUM HOSE $10.89 To Order
Photo Part No Description Price (each) Stock
N91096702 OVAL HEXAGON SOCKET HEAD BOLT $1.52 IN STOCK
Photo Part No Description Price (each) Stock
N10201901 CLAMP $1.94 To Order
Photo Part No Description Price (each) Stock
5Q0611349A CAP FOR EXPANSION TANK $8.15 To Order
5Q0611349B CAP FOR EXPANSION TANK $8.15 To Order
View All

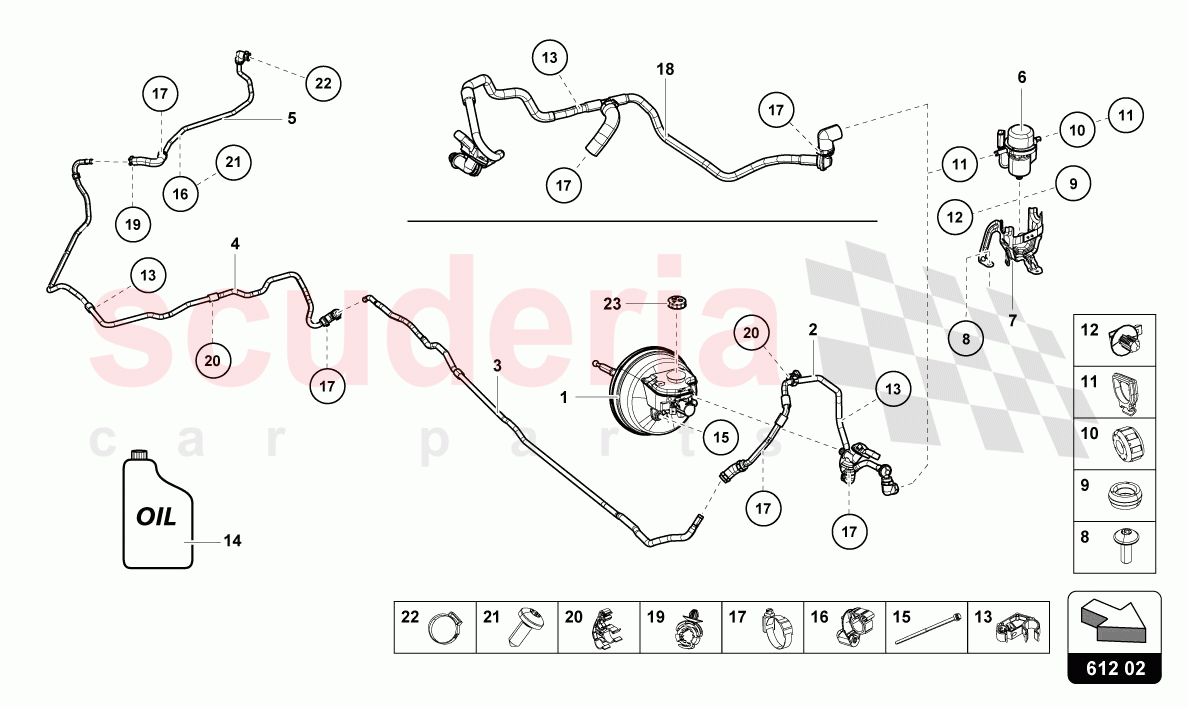

HYDRAULIC SYSTEM FOR BRAKE SERVO of Lamborghini Lamborghini Huracan STO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4S0612105L
BRAKE SERVO 		$722.16 1
3 4T0611936D
VACUUM HOSE 		$70.85 1
4 4S0611936L
VACUUM PIPE 		$132.71 1
5 4S0611931C
VACUUM PIPE 		$53.15 1
6 8E0927317K
ELECTRIC VACUUM PUMP FOR BRAKE 		$436.87 1
7 4S0614709D
RETAINER FOR VACUUM PUMP 		$33.98 1
8 N10406504
OVAL HEXAGON SOCKET HEAD BOLT
M6X12
IN STOCK 		$1.90 (73.6% off) 1
9 8E0614177A
STOP BUFFER 		$3.14 1
10 8E0614177B
STOP BUFFER
IN STOCK 		$3.14 2
11 4B0614145
CLIP
IN STOCK 		$1.13 (84.3% off) 2
12 N90685101
BRACKET FOR CONNECTOR HOUSING
6 -5 		$4.32 3
13 4S0611797D
BRACKET
DOUBLE 		$7.07 4
14 B000750M3
BRAKE FLUID
1.0 LTR. 		$33.22 1
15 WHT003382A
12-POINT HEAD BOLT
M8X205X125 		$13.71 3
16 N0206015
CLAMP
12X15 		$2.08 (70.7% off) 1
17 N10255601
CLAMP
23 -5X7X0,6 		$1.94 (72.7% off) 4
18 4S2611931F
VACUUM HOSE WITH NON-RETURN VALVE AND PRESSURE SENSOR
RHD 		$194.66 1
19 8K0260759H
BRACKET 		$5.53 1
20 4T0611837
HOLDER FOR VACUUM HOSE 		$10.89 1
21 N91096702
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
IN STOCK 		$1.52 (79.1% off) 1
22 N10201901
CLAMP
22 -6X7X0,60 		$1.94 (72.7% off) 1
23 5Q0611349A
CAP FOR EXPANSION TANK 		$8.15 1
23 5Q0611349B
CAP FOR EXPANSION TANK 		$8.15 1
