Timing Chain

Lamborghini Huracan STO

Illustration Number: 1090400

Find Your Part

Lamborghini Huracan STO - TIMING CHAIN (1090400)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6E109465BL TIMING CHAIN $144.50 IN STOCK
Photo Part No Description Price (each) Stock
N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $6.41 IN STOCK
Photo Part No Description Price (each) Stock
N10554005 ROUND HD. SCREW $2.51 IN STOCK
Photo Part No Description Price (each) Stock
N91119601 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $4.22 To Order
Photo Part No Description Price (each) Stock
N90740801 O-RING $3.83 IN STOCK
Photo Part No Description Price (each) Stock
N91046302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) $2.51 To Order
Photo Part No Description Price (each) Stock
7L109359AA PLATE $1,113.11 To Order
Photo Part No Description Price (each) Stock
N10124304 OVAL HEXAGON SOCKET HEAD BOLT $1.69 IN STOCK
Photo Part No Description Price (each) Stock
79109139M SEAL $10.31 IN STOCK
Photo Part No Description Price (each) Stock
79109507AF CHAIN TENSIONER $208.01 IN STOCK
Photo Part No Description Price (each) Stock
79103337P BRACKET $47.32 To Order
Photo Part No Description Price (each) Stock
79109570AT CHAIN SPROCKET $93.00 To Order
Photo Part No Description Price (each) Stock
6E109220A BEARING PIN $85.70 IN STOCK
Photo Part No Description Price (each) Stock
79109570AP CHAIN SPROCKET $93.00 To Order
Photo Part No Description Price (each) Stock
N10478301 CYLINDER PIN $1.33 To Order
Photo Part No Description Price (each) Stock
79109135E SPACER BUSH $14.51 To Order
Photo Part No Description Price (each) Stock
N0124161 SECURING RING $0.72 To Order
Photo Part No Description Price (each) Stock
79103051E SHAFT OIL SEAL $43.17 To Order
Photo Part No Description Price (each) Stock
N90893202 FITTED BOLT, HEXAGON HEAD $3.52 To Order
View All

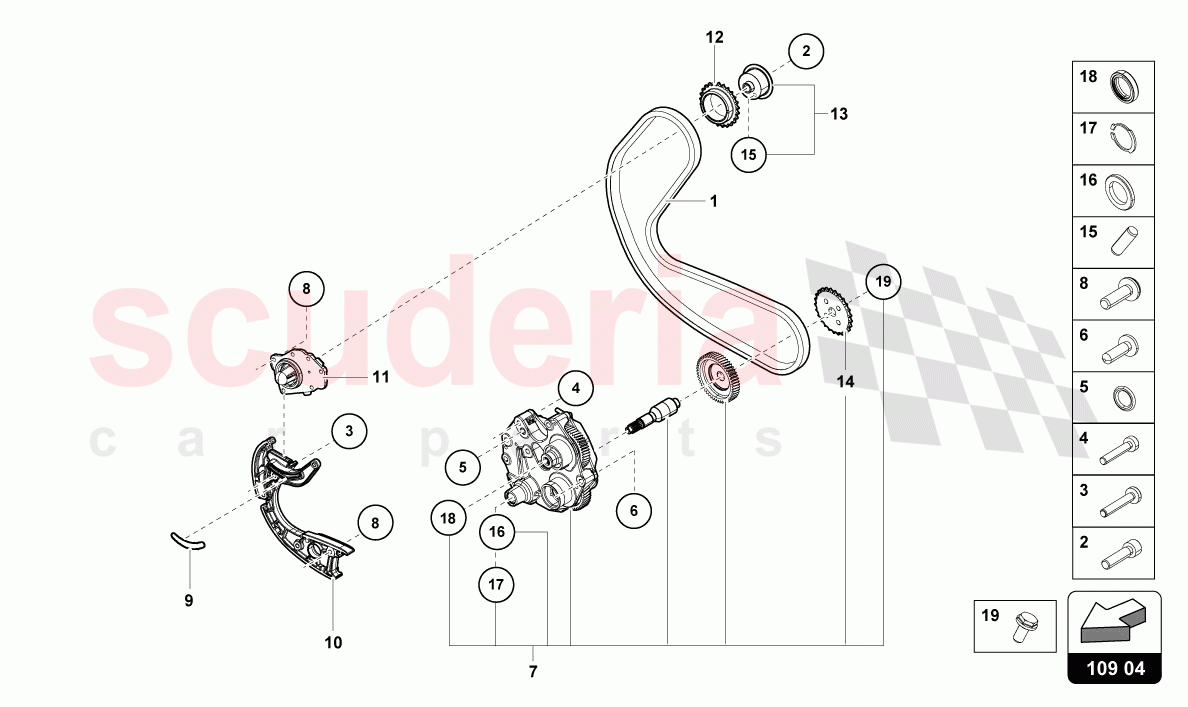

TIMING CHAIN of Lamborghini Lamborghini Huracan STO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6E109465BL
TIMING CHAIN
LOWER CENTRE
IN STOCK 		$144.50 1
2 N10660901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X40
IN STOCK 		$6.41 (2.1% off) 2
3 N10554005
ROUND HD. SCREW
M6X35
IN STOCK 		$2.51 1
4 N91119601
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X45 		$4.22 5
5 N90740801
O-RING
7 -65X1,78
IN STOCK 		$3.83 (47.4% off) 2
6 N91046302
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
M8X28 		$2.51 (64.8% off) 1
7 7L109359AA
PLATE 		$1,113.11 1
8 N10124304
OVAL HEXAGON SOCKET HEAD BOLT
M6X20
IN STOCK 		$1.69 21
9 79109139M
SEAL
LOWER CENTRE
IN STOCK 		$10.31 1
10 79109507AF
CHAIN TENSIONER
IN STOCK 		$208.01 1
11 79103337P
BRACKET 		$47.32 1
12 79109570AT
CHAIN SPROCKET
Z=25 		$93.00 1
13 6E109220A
BEARING PIN
IN STOCK 		$85.70 1
14 79109570AP
CHAIN SPROCKET
Z=25 		$93.00 1
15 N10478301
CYLINDER PIN
5X14 		$1.33 (81.5% off) 1
16 79109135E
SPACER BUSH 		$14.51 1
17 N0124161
SECURING RING
16X1 		$0.72 (90.1% off) 1
18 79103051E
SHAFT OIL SEAL 		$43.17 1
19 N90893202
FITTED BOLT, HEXAGON HEAD
M10X20 		$3.52 21
