Chassis

Lamborghini Huracan Evo Coupe

Find Your Part

Lamborghini Huracan Evo Coupe - CHASSIS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4T8813031K FRAME $12,466.56 To Order
Photo Part No Description Price (each) Stock
4S0813441F REINFORCEMENT $179.26 To Order
Photo Part No Description Price (each) Stock
4T8817361D SUPPORT $100.56 To Order
4T8817362D SUPPORT $100.56 To Order
Photo Part No Description Price (each) Stock
4T8810244F RH TIE ROD (CONTACT YOUR AREA MANAGER) $140.54 To Order
4T8810243F SUPPORT $104.68 To Order
Photo Part No Description Price (each) Stock
4T0813499B ADAPTER $21.06 To Order
4T0813500B ADAPTER $15.75 To Order
Photo Part No Description Price (each) Stock
4T8814201E SUPPORT $532.15 To Order
4T8814202D SUPPORT $140.54 To Order
Photo Part No Description Price (each) Stock
CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
4S0813254B REINFORCEMENT $74.83 To Order
4S0813253D REINFORCEMENT $74.83 To Order
Photo Part No Description Price (each) Stock
4T0810251B CARRIER $64.47 To Order
4T0810252B RH BRACKET $59.15 To Order
Photo Part No Description Price (each) Stock
4T0810439B BRACKET $20.88 To Order
4T0810440B BRACKET $20.88 To Order
Photo Part No Description Price (each) Stock
N91097301 HEXAGON SOCKET FLAT HEAD BOLT $2.13 IN STOCK
Photo Part No Description Price (each) Stock
4S0813857B REINFORCEMENT $179.26 To Order
Photo Part No Description Price (each) Stock
4T0813483C SUPPORT $187.39 To Order
Photo Part No Description Price (each) Stock
N01508210 HEXAGON COLLAR NUT $2.00 IN STOCK
Photo Part No Description Price (each) Stock
N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $2.64 IN STOCK
Photo Part No Description Price (each) Stock
N10683301 HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) $6.88 To Order
Photo Part No Description Price (each) Stock
4S0813239C BRACE $68.85 To Order
Photo Part No Description Price (each) Stock
4S0813945K SLEEVE $255.46 To Order
Photo Part No Description Price (each) Stock
BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4T0813541E ARM $211.11 To Order
4T0813542E ARM $211.11 To Order
Photo Part No Description Price (each) Stock
N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 $1.74 IN STOCK
Photo Part No Description Price (each) Stock
BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
ADJUSTING PIN Enquire To Order
Photo Part No Description Price (each) Stock
CAP CLOSURE Enquire To Order
Photo Part No Description Price (each) Stock
N10664801 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $3.01 IN STOCK
View All

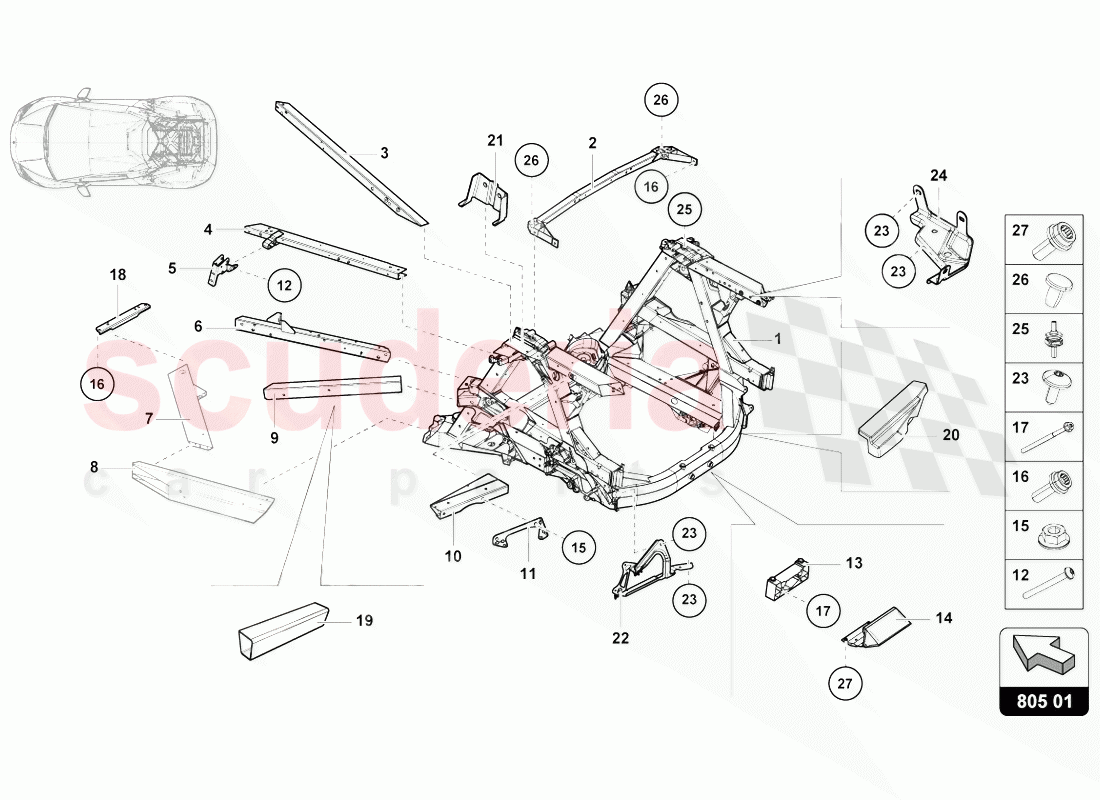

CHASSIS of Lamborghini Lamborghini Huracan Evo Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4T8813031K
FRAME
CONTACT YOUR AREA MANAGER-REAR ENGINE BAY 		$12,466.56 1
2 4S0813441F
REINFORCEMENT 		$179.26 1
3 4T8817361D
SUPPORT
LEFT REAR 		$100.56 1
3 4T8817362D
SUPPORT
RIGHT REAR 		$100.56 1
4 4T8810244F
RH TIE ROD (CONTACT YOUR AREA MANAGER)
CONTACT YOUR AREA MANAGER-RIGHT UPPER 		$140.54 1
4 4T8810243F
SUPPORT
LEFT UPPER 		$104.68 1
5 4T0813499B
ADAPTER
LEFT 		$21.06 1
5 4T0813500B
ADAPTER
RIGHT 		$15.75 1
6 4T8814201E
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT LOWER 		$532.15 1
6 4T8814202D
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT LOWER 		$140.54 1
7 CROSS MEMBER
CANNOT BE SOLD SEPARATELY 		- - Enquire
8 CROSS MEMBER
CANNOT BE SOLD SEPARATELY 		- - Enquire
9 4S0813254B
REINFORCEMENT
CONTACT YOUR AREA MANAGER-RIGHT 		$74.83 1
9 4S0813253D
REINFORCEMENT
CONTACT YOUR AREA MANAGER-LEFT 		$74.83 -
10 4T0810251B
CARRIER
LEFT 		$64.47 1
10 4T0810252B
RH BRACKET
RIGHT 		$59.15 1
11 4T0810439B
BRACKET
LEFT 		$20.88 1
11 4T0810440B
BRACKET
RIGHT 		$20.88 1
12 N91097301
HEXAGON SOCKET FLAT HEAD BOLT
M6X45
IN STOCK 		$2.13 (70.6% off) 8
13 4S0813857B
REINFORCEMENT 		$179.26 1
14 4T0813483C
SUPPORT 		$187.39 1
15 N01508210
HEXAGON COLLAR NUT
M6
IN STOCK 		$2.00 4
16 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
IN STOCK 		$2.64 (63.4% off) 4
17 N10683301
HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
M10X115 		$6.88 2
18 4S0813239C
BRACE 		$68.85 1
19 4S0813945K
SLEEVE
TO BE USED FOR REF. 9 - CONTACT YOUR AREA MANAGER-LEFT 		$255.46 2
20 BRACKET
ONLY FOR 2WD VERSION 		- - Enquire
21 BRACKET
ONLY FOR SPYDER VERSION 		- - Enquire
22 4T0813541E
ARM
LEFT 		$211.11 1
22 4T0813542E
ARM
RIGHT 		$211.11 1
23 N91042302
OVAL HEXAGON SOCKET HEAD BOLT M6 X 16
M6X16
IN STOCK 		$1.74 12
24 BRACKET
ONLY FOR PERFORMANTE MODEL 		- - Enquire
25 ADJUSTING PIN
FOR SPYDER MODEL 		- - Enquire
26 CAP CLOSURE
SEE ILLUSTRATION :- 827-020,11 		- - Enquire
27 N10664801
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X20
IN STOCK 		$3.01 (58.7% off) 2
