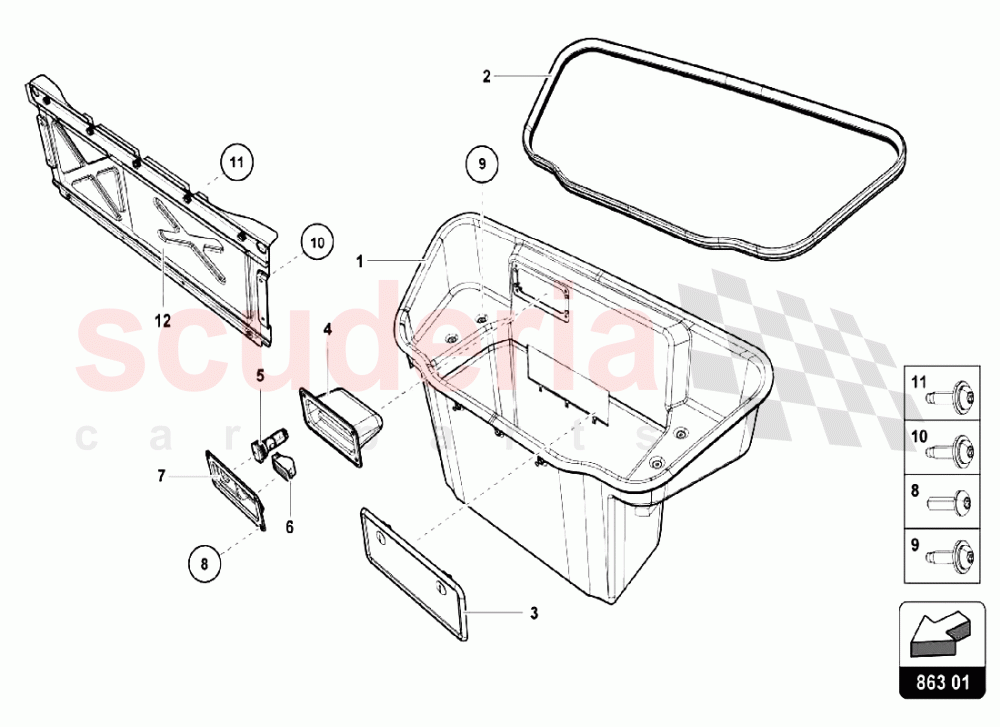

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4T0863405L	LUGGAGE COMPARTMENT TRIM	4T0863405L LUGGAGE COMPARTMENT TRIM	$6,753.71	1
002	4T0823727B	SEAL LUGGAGE COMPARTMENT IN STOCK	4T0823727B SEAL LUGGAGE COMPARTMENT IN STOCK	$226.77	1
003	4T0863440B	TRIM COVER FOR BATTERY IN STOCK	4T0863440B TRIM COVER FOR BATTERY IN STOCK	$392.72	1
004	4T0863571A	COVER FOR STOWAGE COMPARTMENT ARRIVING SOON	4T0863571A COVER FOR STOWAGE COMPARTMENT ARRIVING SOON	$311.32	1
005	4E0919299	COVER WITH SOCKET	4E0919299 COVER WITH SOCKET	$42.27	1
006	4B0947415	Light	4B0947415 Light	$2.18	1
007	4T0863387	Cover	4T0863387 Cover	$313.94	1
008	N10720101	COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10720101 COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	4
009	N91180901	FLAT HEAD MULTI-POINT SOCKET BOLT IN STOCK	N91180901 FLAT HEAD MULTI-POINT SOCKET BOLT IN STOCK	$1.74 MSRP: ~~7.29~~ (76.1% off)	6
010	N10473203	HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	N10473203 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	$1.09 MSRP: ~~7.32~~ (85.1% off)	3
011	N10680601	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10680601 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.52 MSRP: ~~7.30~~ (79.2% off)	10
012	4T0863635E	PARTITION TRIM	4T0863635E PARTITION TRIM	$706.64	1
