Jacking System of Lamborghini Lamborghini Gallardo Superleggera

View All

Lamborghini Gallardo Superleggera - Jacking System

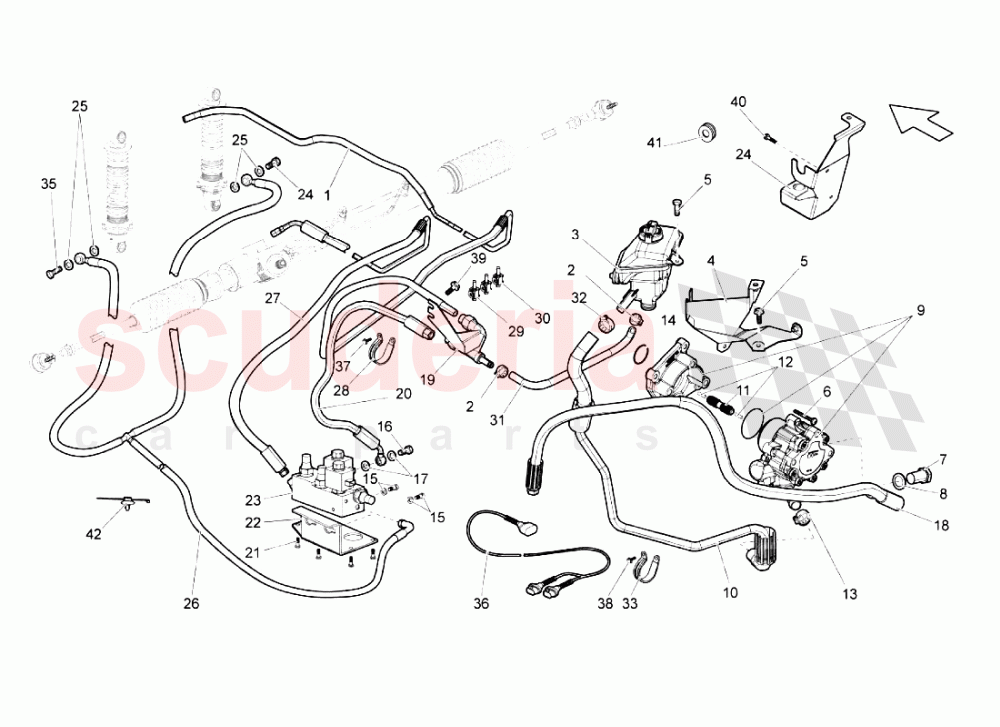

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400422857A	RETURN HOSE	400422857A RETURN HOSE	$1,056.68	1
002	4B0422379	SPRING BAND CLAMP IN STOCK	4B0422379 SPRING BAND CLAMP IN STOCK	$2.75	2
003	400422371	OIL TANK	400422371 OIL TANK	$1,313.04	1
005	N90749002	HEXAGON HEAD BOLT (COMBI)	N90749002 HEXAGON HEAD BOLT (COMBI)	$2.18 MSRP: ~~7.28~~ (70.1% off)	4
006	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.07 MSRP: ~~7.26~~ (71.5% off)	3
007	400422279A	SCREW WITH HOLE	400422279A SCREW WITH HOLE	$10.69	1
008	N0138481	WASHER IN STOCK	N0138481 WASHER IN STOCK	$0.65 MSRP: ~~7.28~~ (91.1% off)	2
009	400145153C	HYDRAULIC PUMP IN STOCK	400145153C HYDRAULIC PUMP IN STOCK	$1,976.24	1
010	408422890	PIPE	408422890 PIPE	$2,144.62	1
011	57145225D	DRIVE SHAFT IN STOCK	57145225D DRIVE SHAFT IN STOCK	$54.97	1
012	79145115B	PIN IN STOCK	79145115B PIN IN STOCK	$12.03	2
013	N10418001	CLAMP IN STOCK	N10418001 CLAMP IN STOCK	$1.08 MSRP: ~~7.23~~ (85.1% off)	1
014	WHT000417	O-Ring IN STOCK	WHT000417 O-Ring IN STOCK	$2.38	1
015	N90520507	SCREW M6X20	N90520507 SCREW M6X20	$2.83	2
016	400422269A	SCREW WITH HOLE	400422269A SCREW WITH HOLE	$18.21	1
017	N0138492	WASHER IN STOCK	N0138492 WASHER IN STOCK	$3.82 MSRP: ~~7.21~~ (47% off)	2
018	400422973	HOSE	400422973 HOSE	$421.42	1
019	400422293C	CONNECTOR	400422293C CONNECTOR	$192.58	1
020	400422891F	HOSE	400422891F HOSE	$310.75	1
021	N10335202	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10335202 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.15 MSRP: ~~7.29~~ (84.2% off)	4
022	400616143A	BRACKET	400616143A BRACKET	$52.28	1
023	400412185C	JACKING SYSTEM CONTROL UNIT	400412185C JACKING SYSTEM CONTROL UNIT	$11,435.98	1
024	408422493	SUPPORT	408422493 SUPPORT	$84.05	1
025	400616817A	WASHER IN STOCK	400616817A WASHER IN STOCK	$2.75	4
026	400616733D	PIPE	400616733D PIPE	$982.89	1
027	402422893J	HOSE (OIL FLOW)	402422893J HOSE (OIL FLOW)	$920.38	1
028	N0206253	CLAMP	N0206253 CLAMP	$1.83 MSRP: ~~7.07~~ (74.1% off)	2
029	400611799F	CLAMP ( - 8)	400611799F CLAMP ( - 8)	$0.75	1
029	400611799B	BRACKET	400611799B BRACKET	$0.62 MSRP: ~~7.29~~ (91.5% off)	1
030	400611799A	CLIP	400611799A CLIP	$0.75 MSRP: ~~7.27~~ (89.7% off)	2
031	400422887A	PIPE	400422887A PIPE	$98.30	1
032	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$5.77	1
033	N206104	CLAMP	N206104 CLAMP	-	2	Enquire
035	WHT003303	SCREW WITH HOLE	WHT003303 SCREW WITH HOLE	$12.08	2
036	400971059A	WIRING HARNESS	400971059A WIRING HARNESS	$173.83	1
037	N90533002	SCREW	N90533002 SCREW	$1.62 MSRP: ~~7.11~~ (77.2% off)	2
038	N90533002	SCREW	N90533002 SCREW	$1.62 MSRP: ~~7.11~~ (77.2% off)	2
039	N90533002	SCREW	N90533002 SCREW	$1.62 MSRP: ~~7.11~~ (77.2% off)	2
040	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.76	2
041	431129669	GROMMET	431129669 GROMMET	$6.89	2
042	N10562301	CABLE TIES	N10562301 CABLE TIES	$1.24 MSRP: ~~7.18~~ (82.7% off)	2
