Differential Case of Lamborghini Lamborghini Gallardo Spyder

View All

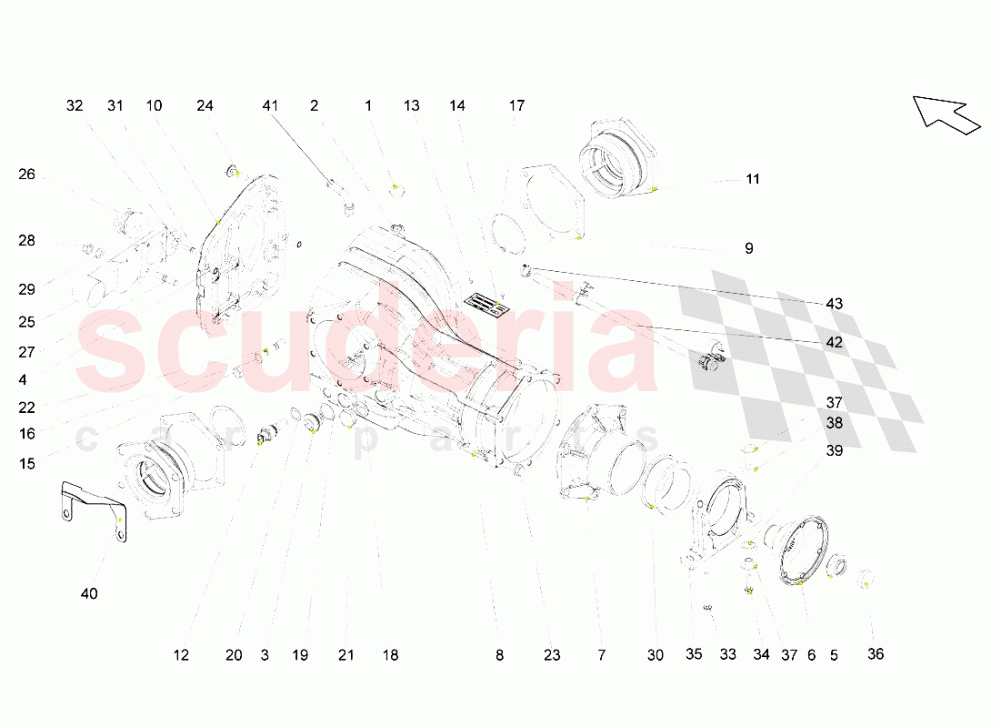

Lamborghini Gallardo Spyder - Differential Case

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86301047	BREATHER PIPE (UNTIL THE VIN 4982)	86301047 BREATHER PIPE (UNTIL THE VIN 4982)	$23.24	1
003	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$25.87	1
004	86301299	DOWEL	86301299 DOWEL	$6.06	2
005	86311495	HEXAGON NUT	86311495 HEXAGON NUT	$30.74	1
006	86311807B	FLANGE	86311807B FLANGE	$240.53	1
007	1S409129	FLANGE	1S409129 FLANGE	$2,243.30	1
009	1S409385	ADJUSTMENT SHIM	1S409385 ADJUSTMENT SHIM	$57.30	2
010	1S409410	COVER	1S409410 COVER	$305.51	1
011	1S409828	FLANGE	1S409828 FLANGE	$305.51	2
012	1S919529	SENSOR	1S919529 SENSOR	$264.89	1
015	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	12
016	N0115581	ROSETTE	N0115581 ROSETTE	$0.37	12
017	N0123191	RETAINING RING	N0123191 RETAINING RING	$5.58	2
018	N0138163	WASHER	N0138163 WASHER	-	1	Enquire
019	N0138271	SEAL RING IN STOCK	N0138271 SEAL RING IN STOCK	$3.95 MSRP: ~~7.16~~ (44.8% off)	1
020	N0138492	WASHER IN STOCK	N0138492 WASHER IN STOCK	$3.81 MSRP: ~~7.21~~ (47.2% off)	1
021	N0160291	PLUG	N0160291 PLUG	$8.44	1
022	N04440510	STUD BOLT M8X22	N04440510 STUD BOLT M8X22	$1.93 MSRP: ~~7.04~~ (72.6% off)	12
023	N0903295	SCREW	N0903295 SCREW	$2.75	6
024	N10128106	SCREW	N10128106 SCREW	$3.65	8
025	400399231C	SUPPORT	400399231C SUPPORT	$159.34	1
026	400399663	SILENTBLOCK	400399663 SILENTBLOCK	$59.17	2
027	N0444445	STUD BOLT	N0444445 STUD BOLT	$0.70	4
028	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	$2.25 MSRP: ~~7.22~~ (68.8% off)	4
029	400399195	SPACER	400399195 SPACER	$467.31	4
030	400399177	COLLAR	400399177 COLLAR	$127.44	1
031	N10569802	SCREW M12X85	N10569802 SCREW M12X85	$7.06	2
032	N90476702	ROSETTE	N90476702 ROSETTE	$11.37	2
033	N10036203	SCREW	N10036203 SCREW	$6.15	2
034	N10140203	SCREW	N10140203 SCREW	$10.87	2
035	400399153A	SUPPORT	400399153A SUPPORT	$267.41	1
036	1S409966	END CAP	1S409966 END CAP	$15.11	1
037	400399195A	SPACER	400399195A SPACER	$9.44	4
038	400399177A	SILENTBLOCK	400399177A SILENTBLOCK	$10.43	2
039	400399177B	SPACER	400399177B SPACER	$3.45	2
041	2D525118B	ELBOW FITTING	2D525118B ELBOW FITTING	$14.01	1
042	1S409831	BREATHER PIPE (FROM VIN 4983)	1S409831 BREATHER PIPE (FROM VIN 4983)	$61.10	1
043	N90686701	SPRING BAND CLAMP IN STOCK	N90686701 SPRING BAND CLAMP IN STOCK	$1.88 MSRP: ~~7.11~~ (73.6% off)	1
