Lamborghini Gallardo Spyder - Elettrical System

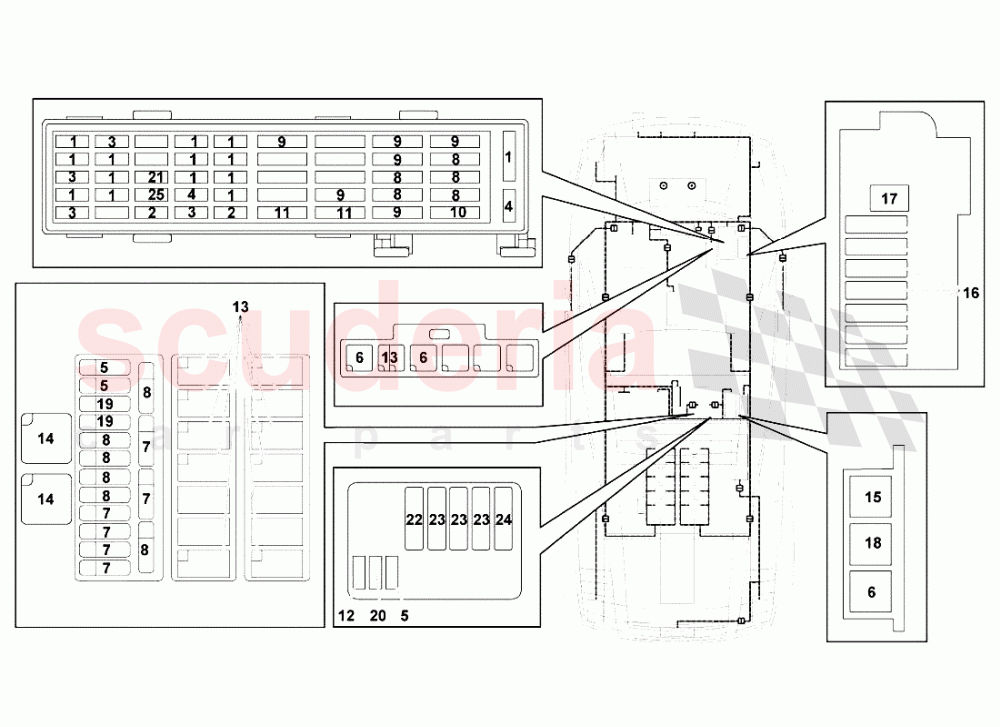

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407971135AE	CENTRAL WIRING HARNESS (RNS / CD CHANGER / TV / E-GEAR)	407971135AE CENTRAL WIRING HARNESS (RNS / CD CHANGER / TV / E-GEAR)	$7,917.77	1
001	407971135AA	CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / MANUAL GEARBOX)	407971135AA CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / MANUAL GEARBOX)	$7,605.58	1
001	407971135AD	CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / E-GEAR)	407971135AD CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / E-GEAR)	$14,552.39	1
001	407971135AC	CENTRAL WIRING HARNESS (RNS / CD CHANGER / E-GEAR)	407971135AC CENTRAL WIRING HARNESS (RNS / CD CHANGER / E-GEAR)	$7,536.89	1
001	407971135T	CENTRAL WIRING HARNESS (RNS / CD CHANGER / MANUAL GEARBOX)	407971135T CENTRAL WIRING HARNESS (RNS / CD CHANGER / MANUAL GEARBOX)	$6,999.90	1
003	400971036B	DOOR WIRING HARNESS (PASSENGER SIDE)	400971036B DOOR WIRING HARNESS (PASSENGER SIDE)	$211.69	1
005	407971258D	ENGINE RELAY BOX WIRING HARNESS	407971258D ENGINE RELAY BOX WIRING HARNESS	$442.10	1
006	407971771B	WIRING HARNESS (E-GEAR)	407971771B WIRING HARNESS (E-GEAR)	$194.84	1
008	400971194A	WIRING HARNESS	400971194A WIRING HARNESS	$204.18	1
011	400970264	TUNNEL WIRING HARNESS	400970264 TUNNEL WIRING HARNESS	$59.08	1
012	401971035B	DOOR WIRING HARNESS (DRIVER SIDE)	401971035B DOOR WIRING HARNESS (DRIVER SIDE)	$320.96	1
013	400971235B	CABLE	400971235B CABLE	$31.16	1
015	400971793B	CABLE (CABLE STARTER MOTOR EXCITATION)	400971793B CABLE (CABLE STARTER MOTOR EXCITATION)	$144.87	1
017	407971315G	WIRING HARNESS DASHBOARD (VERSIONS WITHOUT NAVIGATOR / BLUETOOTH)	407971315G WIRING HARNESS DASHBOARD (VERSIONS WITHOUT NAVIGATOR / BLUETOOTH)	$1,020.34	1
017	407971315H	WIRING HARNESS DASHBOARD (VERSIONS WITH NAVIGATOR)	407971315H WIRING HARNESS DASHBOARD (VERSIONS WITH NAVIGATOR)	$974.13	1
017	407971315F	WIRING HARNESS DASHBOARD (VERSIONS WITHOUT NAVIGATOR)	407971315F WIRING HARNESS DASHBOARD (VERSIONS WITHOUT NAVIGATOR)	$892.94	1
017	407971315J	WIRING HARNESS DASHBOARD (VERSIONS WITH NAVIGATOR -BLUETOOTH)	407971315J WIRING HARNESS DASHBOARD (VERSIONS WITH NAVIGATOR -BLUETOOTH)	$1,286.32	1
018	400971679A	WIRING HARNESS (PASSENGER SIDE DRAWER)	400971679A WIRING HARNESS (PASSENGER SIDE DRAWER)	$109.77	1
019	400971899	CLAMP ( - 23 MM)	400971899 CLAMP ( - 23 MM)	$7.25	3
019	400971930	CLAMP (0 31 MM)	400971930 CLAMP (0 31 MM)	$2.58	1
021	3D0971838E	CLAMP	3D0971838E CLAMP	$2.13	2
023	400971503	LH BRACKET	400971503 LH BRACKET	$27.05	1
024	400971504	RH BRACKET	400971504 RH BRACKET	$27.05	1
025	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.76	4
026	N10003703	SCREW M6X17.00 (M6X17)	N10003703 SCREW M6X17.00 (M6X17)	$0.65 MSRP: ~~7.31~~ (91.1% off)	4
027	1J0973803	FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM	1J0973803 FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM	$6.88	1
028	3D0973703	CONNECTOR FOR LICENSE PLATE'S LIGHT'S WIRING	3D0973703 CONNECTOR FOR LICENSE PLATE'S LIGHT'S WIRING	$9.38	1
