Electrical System 1 of Lamborghini Lamborghini Gallardo LP570 4 SL

View All

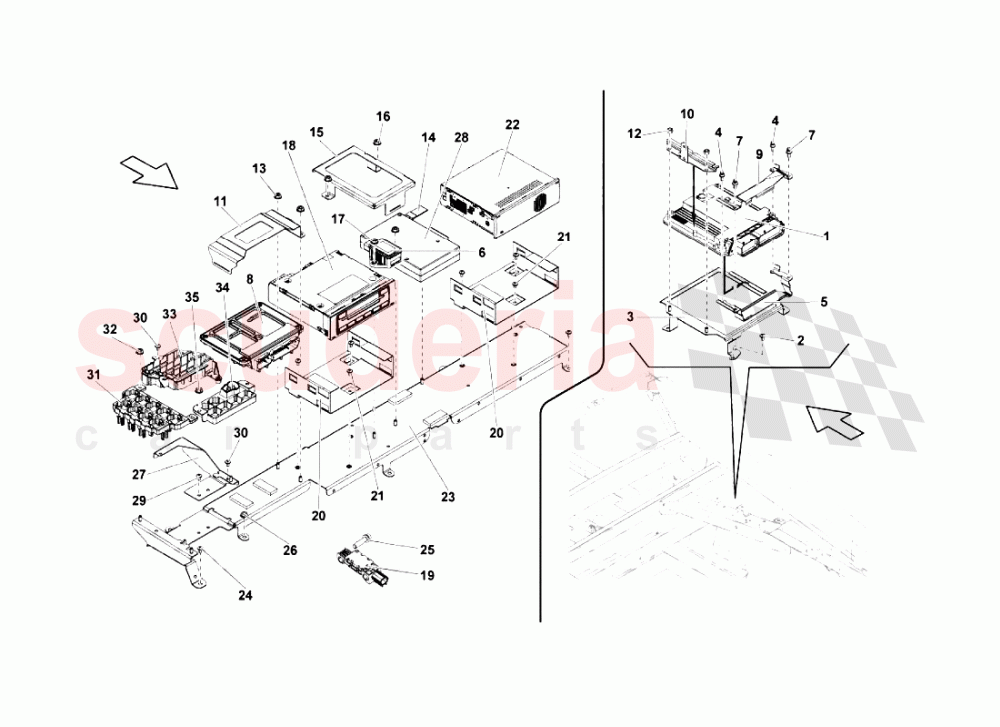

Lamborghini Gallardo LP570 4 SL - Electrical System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400907552G	LIE CONTROL UNIT - 4WD (ORDER ALSO REF. 4 - 7)	400907552G LIE CONTROL UNIT - 4WD (ORDER ALSO REF. 4 - 7)	$5,324.18	2
002	N91096601	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096601 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	6
003	408907348B	LH BRACKET	408907348B LH BRACKET	$86.11	1
003	408907324A	RH BRACKET	408907324A RH BRACKET	$1,109.90	1
004	N91217601	SHEAR BOLT IN STOCK	N91217601 SHEAR BOLT IN STOCK	$1.62	4
005	8E0907411J	BRACKET	8E0907411J BRACKET	$60.82	2
006	420907637	YAWRATE SENSOR (ESP)	420907637 YAWRATE SENSOR (ESP)	$1,065.08	1
007	N90980304	SCREW M6X12 IN STOCK	N90980304 SCREW M6X12 IN STOCK	$1.88 MSRP: ~~7.20~~ (73.9% off)	4
008	400927156D	E-GEAR CONTROL UNIT (4WD)	400927156D E-GEAR CONTROL UNIT (4WD)	$7,063.45	1
009	8E0907500J	BRACKET	8E0907500J BRACKET	$39.25	2
010	408907354A	LH BRACKET	408907354A LH BRACKET	$14.60	1
010	408907649A	RH BRACKET	408907649A RH BRACKET	$14.60	1
011	408907347B	BRACKET (E-GEAR)	408907347B BRACKET (E-GEAR)	$29.66	1
012	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	4
013	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
014	8P0035503E	ANTENNA BLUETOOTH	8P0035503E ANTENNA BLUETOOTH	$29.41	1
015	408862399	BRACKET (BLUETOOTH CONTROL UNIT)	408862399 BRACKET (BLUETOOTH CONTROL UNIT)	$41.17	1
016	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
017	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
019	400980655	AIR BAG SENSOR	400980655 AIR BAG SENSOR	$143.89	2
020	400919749	BRACKET (CD - TV)	400919749 BRACKET (CD - TV)	$21.98	2
021	N91020102	SCREW M6X14	N91020102 SCREW M6X14	$1.25 MSRP: ~~7.31~~ (82.9% off)	6
023	408035643B	SUPPORT	408035643B SUPPORT	$146.40	1
024	N91096601	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096601 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	7
025	N10227805	SCREW M6X20.0 IN STOCK	N10227805 SCREW M6X20.0 IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	2
026	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	1
027	420971845R	BRACKET	420971845R BRACKET	$19.45	1
028	8P0862335AA	BLUETOOTH CONTROL UNIT	8P0862335AA BLUETOOTH CONTROL UNIT	$772.05	1
029	N91020102	SCREW M6X14	N91020102 SCREW M6X14	$1.25 MSRP: ~~7.31~~ (82.9% off)	2
030	N10595002	ROUND HD. SCREW IN STOCK	N10595002 ROUND HD. SCREW IN STOCK	$1.56	2
031	4F0937503	SUPPORT (ENGINE RELAY BOX WIRING HARNESS)	4F0937503 SUPPORT (ENGINE RELAY BOX WIRING HARNESS)	$10.76	1
032	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
033	4F1971845A	RETAINER FOR FUSE SOCKET	4F1971845A RETAINER FOR FUSE SOCKET	$13.71	1
034	4F1937545	SUPPORT (CENTRAL WIRING HARNESS)	4F1937545 SUPPORT (CENTRAL WIRING HARNESS)	$6.77	1
035	N10597201	HEXAGON COLLAR NUT SELF-LOCKING	N10597201 HEXAGON COLLAR NUT SELF-LOCKING	$2.08 MSRP: ~~7.28~~ (71.4% off)	2
