Brake System of Lamborghini Lamborghini Gallardo LP570 4 SL

View All

Lamborghini Gallardo LP570 4 SL - Brake System

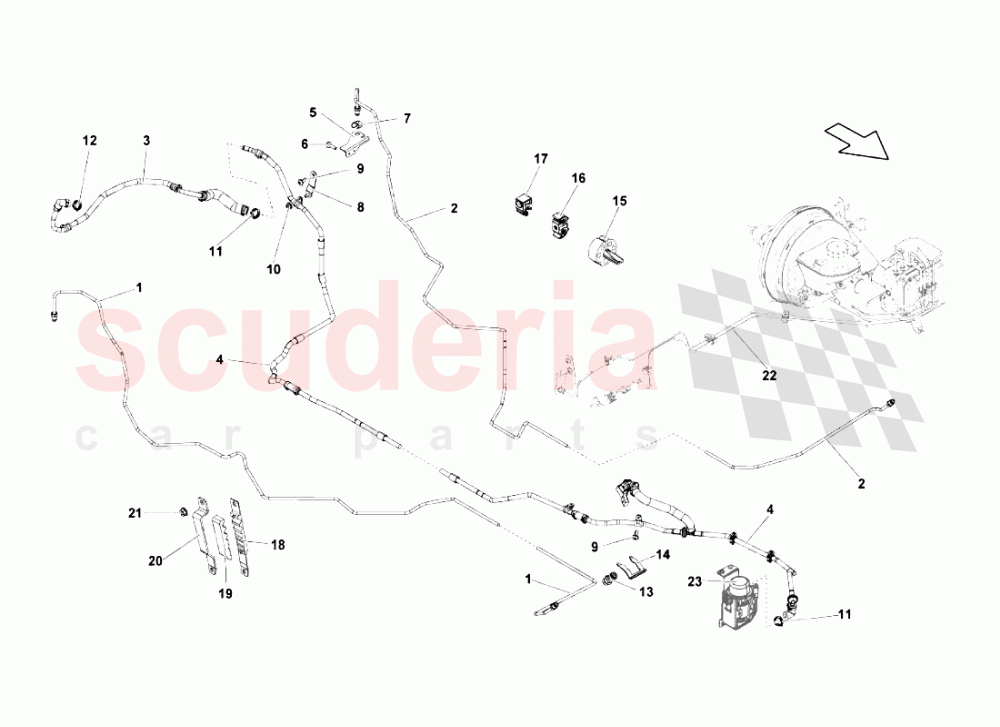

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400611742G	RH REAR PIPE	400611742G RH REAR PIPE	$184.34	1
002	400611741H	LH REAR PIPE	400611741H LH REAR PIPE	$166.17	1
003	420611931E	REAR PIPE	420611931E REAR PIPE	$203.18	1
004	402611931	FRONT PIPE (VACUM)	402611931 FRONT PIPE (VACUM)	$455.18	1
005	420611848A	RIGHT SUPPORT	420611848A RIGHT SUPPORT	$10.74	1
005	420611847A	LEFT SUPPORT	420611847A LEFT SUPPORT	$10.74	1
006	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	$1.44	4
007	4D0611715B	RETAINING SPRING IN STOCK	4D0611715B RETAINING SPRING IN STOCK	$0.96 MSRP: ~~7.27~~ (86.8% off)	2
008	420611793D	BRACKET	420611793D BRACKET	$29.72	1
009	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.69	2
010	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
011	N10255601	CLAMP	N10255601 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	2
012	N10201901	CLAMP	N10201901 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	1
013	400611809	CONNECTING PIECE	400611809 CONNECTING PIECE	$39.95	2
014	191611715	HOSE BRACKET	191611715 HOSE BRACKET	$1.94 MSRP: ~~7.14~~ (72.8% off)	2
015	1J0611853	SPACER IN STOCK	1J0611853 SPACER IN STOCK	$0.96 MSRP: ~~7.27~~ (86.8% off)	2
016	6Q0611797E	BRACKET	6Q0611797E BRACKET	$4.27	7
017	8D0611797D	BRACKET	8D0611797D BRACKET	$5.41	12
018	400121220E	RUBBER SUPPORT	400121220E RUBBER SUPPORT	$19.49	3
019	400121503	RUBBER SUPPORT	400121503 RUBBER SUPPORT	$17.01	3
020	400121097A	BRACKET	400121097A BRACKET	$12.78	3
021	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	6
