Air Conditioning System 3 of Lamborghini Lamborghini Gallardo LP570 4 SL

View All

Lamborghini Gallardo LP570 4 SL - Air Conditioning System 3

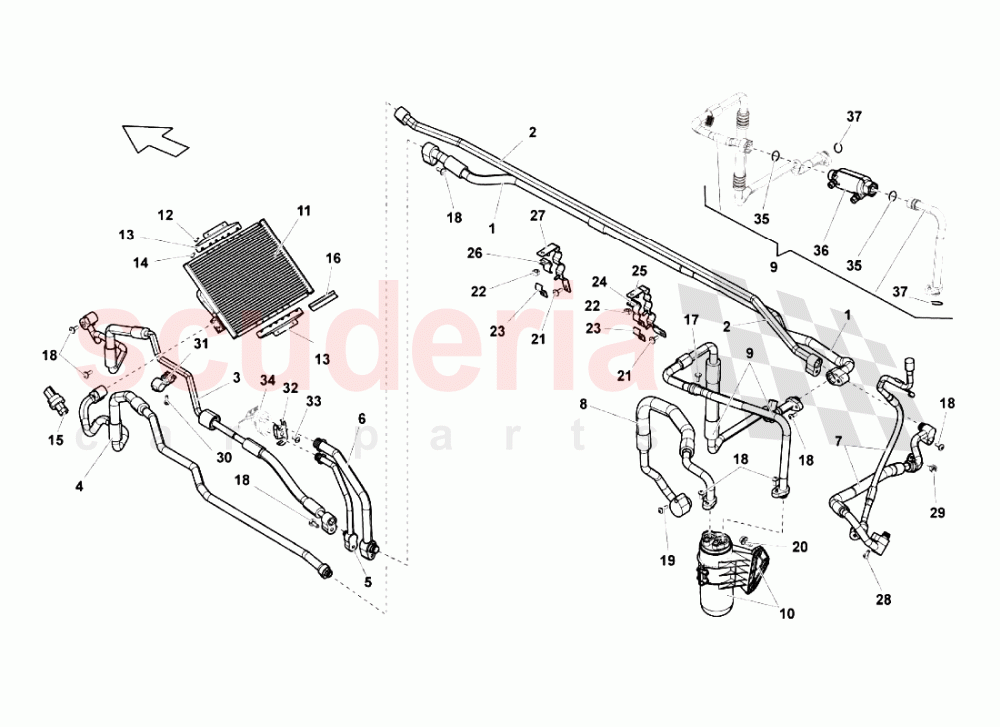

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400260740C	PIPE	400260740C PIPE	$231.55	1
002	400260702	PIPE	400260702 PIPE	$195.89	1
003	400260712B	PIPE	400260712B PIPE	$698.44	1
004	400260704	PIPE	400260704 PIPE	$289.13	1
005	400260711	PIPE	400260711 PIPE	$69.24	1
006	400260741B	PIPE	400260741B PIPE	$74.73	1
007	400260701C	PIPE	400260701C PIPE	$1,408.44	1
008	420260707A	PIPE	420260707A PIPE	$330.53 MSRP: ~~384.00~~ (13.9% off)	1
009	420260708A	PIPE	420260708A PIPE	$262.92	1
010	420820189	DEHYDRATOR FILTER IN STOCK	420820189 DEHYDRATOR FILTER IN STOCK	$560.76	1
011	400260401D	A/C CONDENSER IN STOCK	400260401D A/C CONDENSER IN STOCK	$805.43	1
012	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.76	4
013	400260197C	BRACKET	400260197C BRACKET	$68.61	2
014	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$2.32	4
015	3R0959126	PRESSURE SENSOR AIR CONDITIONING	3R0959126 PRESSURE SENSOR AIR CONDITIONING	$114.95	1
016	400820261	GASKET	400820261 GASKET	$143.33	2
017	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52	1
018	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.13 MSRP: ~~7.26~~ (70.7% off)	8
019	N10415402	SCREW M8X40	N10415402 SCREW M8X40	$3.21 MSRP: ~~7.17~~ (55.2% off)	1
020	N10340902	SCREW M6X30	N10340902 SCREW M6X30	$0.91 MSRP: ~~7.24~~ (87.4% off)	3
021	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52	4
022	N10017304	HEXAGON COLLAR NUT IN STOCK	N10017304 HEXAGON COLLAR NUT IN STOCK	$1.88	4
023	400260835	BRACKET	400260835 BRACKET	$8.15	1
024	400260427	BRACKET	400260427 BRACKET	$13.40	1
025	400260428	BRACKET	400260428 BRACKET	$21.03	1
026	400260420	BRACKET	400260420 BRACKET	$13.40	1
027	400260419	BRACKET	400260419 BRACKET	$18.16	1
028	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$3.21 MSRP: ~~7.07~~ (54.6% off)	1
029	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	1
030	N10156206	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10156206 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.76	2
031	8E0260759AP	BRACKET FOR REFRIGERANT HOSE	8E0260759AP BRACKET FOR REFRIGERANT HOSE	$4.57	2
032	400260862	BLIND FLANGE	400260862 BLIND FLANGE	$124.94	1
033	N90355904	SCREW M8X30	N90355904 SCREW M8X30	$4.21	1
