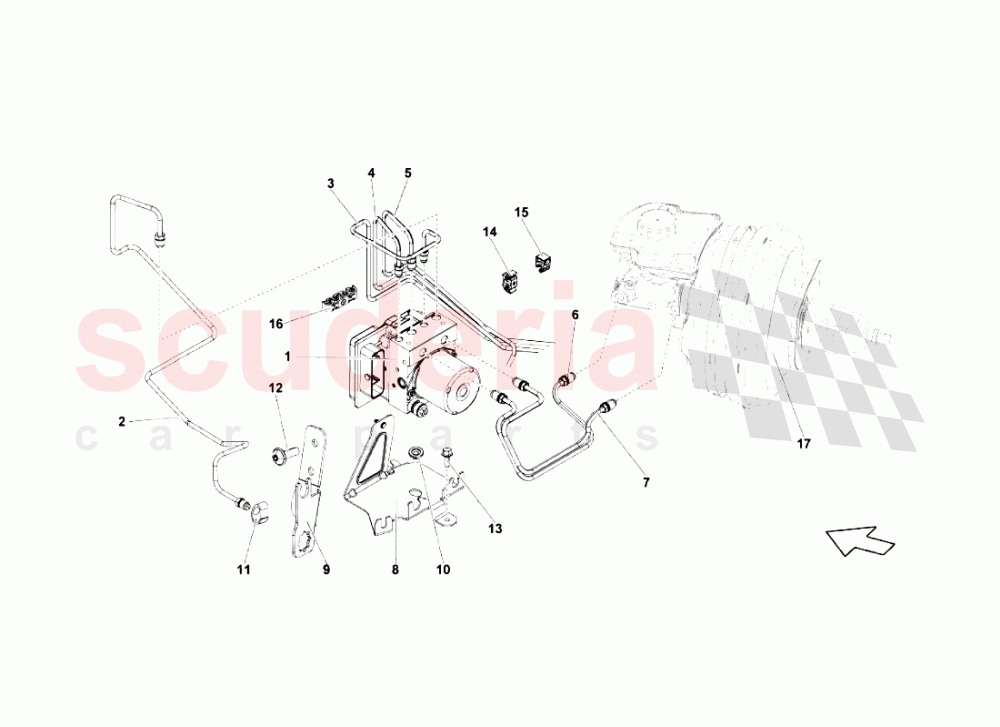

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400614517E	ABS/EPS CONTROL UNIT	400614517E ABS/EPS CONTROL UNIT	$1,405.11	1
002	400611761F	PIPE	400611761F PIPE	$113.43	1
003	400611763G	PIPE	400611763G PIPE	$120.28	1
004	400611762G	PIPE	400611762G PIPE	$120.54	1
005	400611764G	PIPE	400611764G PIPE	$113.43	1
006	402614739C	PIPE	402614739C PIPE	$113.54	1
007	402614740C	PIPE	402614740C PIPE	$122.82	1
008	400614115E	BRACKET	400614115E BRACKET	$31.98	1
009	400611851A	LH BRACKET	400611851A LH BRACKET	$20.55	1
009	400611852A	RH BRACKET	400611852A RH BRACKET	$20.55	1
010	4F0614177	BUFFER	4F0614177 BUFFER	$3.13	1
011	4D0611715B	RETAINING SPRING IN STOCK	4D0611715B RETAINING SPRING IN STOCK	$0.95 MSRP: ~~7.27~~ (86.9% off)	2
012	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	$1.44	4
013	N0902619	HEXAGON HEAD BOLT (COMBI)	N0902619 HEXAGON HEAD BOLT (COMBI)	$3.38 MSRP: ~~7.29~~ (53.6% off)	3
014	6Q0611797E	BRACKET	6Q0611797E BRACKET	$4.25	3
015	8D0611797D	BRACKET	8D0611797D BRACKET	$5.39	2
016	8Z0611797C	CLAMP	8Z0611797C CLAMP	$1.68 MSRP: ~~7.10~~ (76.3% off)	1
