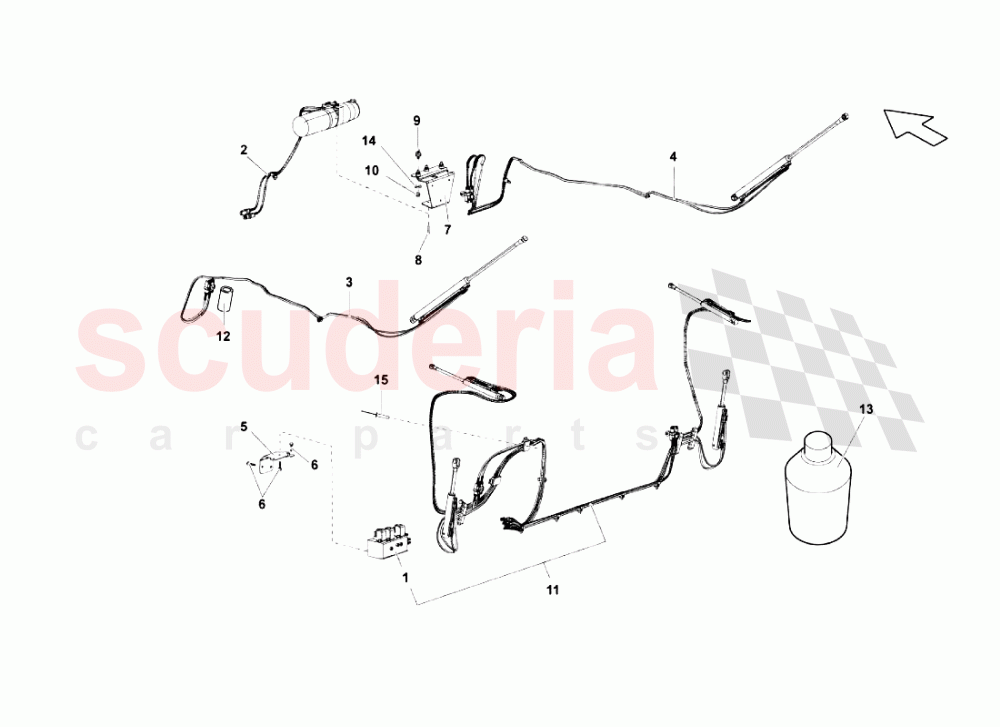

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	407871806	HYDRAULIC VALVE BLOCK	407871806 HYDRAULIC VALVE BLOCK	$16,586.79	1
002	407871791	HYDRAULIC PUMP	407871791 HYDRAULIC PUMP	$8,791.95	1
002	407871791B	HYDRAULIC PUMP	407871791B HYDRAULIC PUMP	$8,791.95	1
003	407871603	HYDRAULIC CYLINDER LEFT	407871603 HYDRAULIC CYLINDER LEFT	$2,618.23	1
004	407871604	HYDRAULIC CYLINDER RIGHT IN STOCK	407871604 HYDRAULIC CYLINDER RIGHT IN STOCK	$1,191.90	1
005	407813218A	BRACKET	407813218A BRACKET	$62.11	1
006	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.82	3
006	N90944603	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90944603 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.19	2
007	407813548D	BRACKET	407813548D BRACKET	$53.63	1
008	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.82	2
009	400972081C	FLEXIBLE SUPPORT	400972081C FLEXIBLE SUPPORT	$17.30	3
010	N1508213	NUT M6	N1508213 NUT M6	-	3	Enquire
011	407871789	HYDRAULIC UNIT SOFT TOP	407871789 HYDRAULIC UNIT SOFT TOP	$8,791.95	1
012	4B0971790B	PROTECTION	4B0971790B PROTECTION	$2.07 MSRP: ~~7.29~~ (71.6% off)	3
013	900000140	CENTR. HYDRAULIC OIL	900000140 CENTR. HYDRAULIC OIL	$128.05	1
014	N90107607	WASHER IN STOCK	N90107607 WASHER IN STOCK	$1.08 MSRP: ~~7.22~~ (85% off)	3
015	N161992	RIVET	N161992 RIVET	-	2	Enquire
