Water Cooling System 1 of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

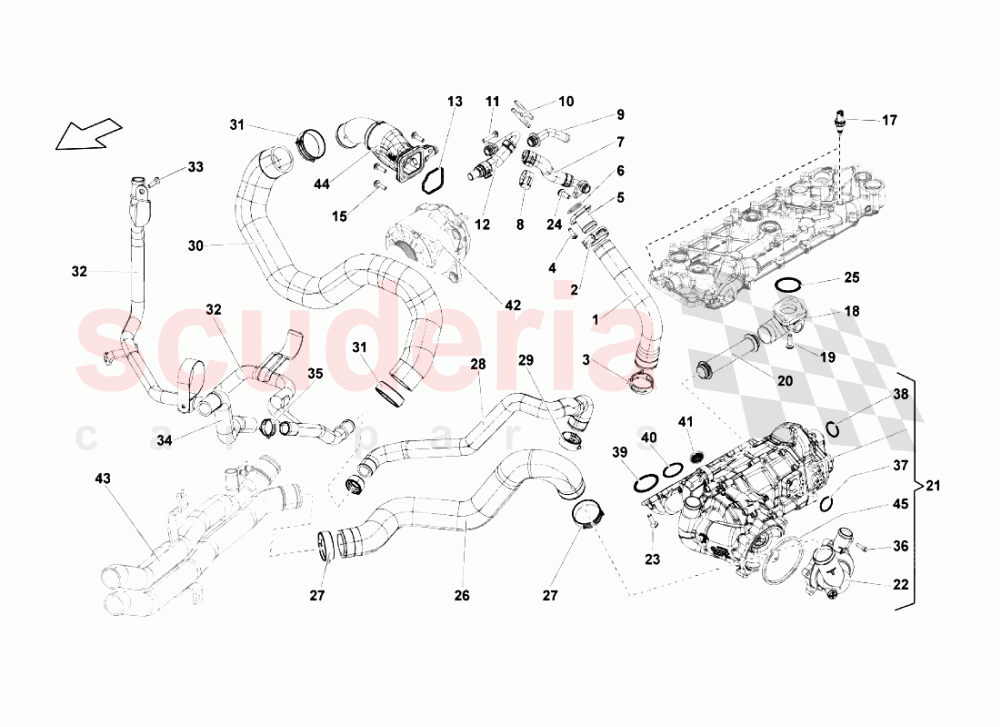

Lamborghini Gallardo LP560 Spyder - Water Cooling System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L121057T	COOLANT HOSE IN STOCK	7L121057T COOLANT HOSE IN STOCK	$19.21	1
002	N90687101	SPRING BAND CLAMP IN STOCK	N90687101 SPRING BAND CLAMP IN STOCK	$7.15	1
003	6B145917	SPRING BAND CLAMP IN STOCK	6B145917 SPRING BAND CLAMP IN STOCK	$6.01	1
004	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	$1.52	2
005	7L121133M	WATER CONNECTION	7L121133M WATER CONNECTION	$56.90	1
006	N90544501	SEAL RING	N90544501 SEAL RING	$4.54 MSRP: ~~16.90~~ (73.1% off)	1
007	7L121030C	COOLANT HOSE	7L121030C COOLANT HOSE	$117.92	1
008	N90926401	SPRING BAND CLAMP IN STOCK	N90926401 SPRING BAND CLAMP IN STOCK	$3.78	2
009	7L121131K	PIPE UNION	7L121131K PIPE UNION	$82.76	1
010	7C121077H	RETAINING PLATE	7C121077H RETAINING PLATE	$75.50	1
011	N10156206	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10156206 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.76	1
012	7L121030B	COOLANT HOSE	7L121030B COOLANT HOSE	$134.57	1
013	7L103121R	COOLANT PIPE GASKET IN STOCK	7L103121R COOLANT PIPE GASKET IN STOCK	$16.80	1
015	N10700201	HEXAGON SOCKET HEAD BOLT IN STOCK	N10700201 HEXAGON SOCKET HEAD BOLT IN STOCK	$2.75 MSRP: ~~7.25~~ (62.1% off)	3
017	59919523F	TEMPERATURE SENSOR IN STOCK	59919523F TEMPERATURE SENSOR IN STOCK	$59.92	2
018	7L121133J	WATER CONNECTION	7L121133J WATER CONNECTION	$122.43	1
019	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.74	2
020	7L121237B	Water Pipe	7L121237B Water Pipe	$54.77	1
021	7L115009AC	PUMP	7L115009AC PUMP	$4,399.15	1
022	79121115BM	COOLANT REGULATOR HOUSING WITH THERMOSTAT	79121115BM COOLANT REGULATOR HOUSING WITH THERMOSTAT	$650.94	1
023	N10700201	HEXAGON SOCKET HEAD BOLT IN STOCK	N10700201 HEXAGON SOCKET HEAD BOLT IN STOCK	$2.75 MSRP: ~~7.25~~ (62.1% off)	13
024	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.62	1
025	N91008501	O-RING	N91008501 O-RING	$5.12	1
026	420121082A	PIPE IN STOCK	420121082A PIPE IN STOCK	$69.73	1
027	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.71	2
028	420819370A	PIPE	420819370A PIPE	$46.94	1
029	N90687101	SPRING BAND CLAMP IN STOCK	N90687101 SPRING BAND CLAMP IN STOCK	$7.15	2
030	420121101D	WATER HOSE IN STOCK	420121101D WATER HOSE IN STOCK	$99.30	1
031	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.71	2
032	400121481A	PIPE	400121481A PIPE	$958.50	1
033	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52	3
034	400819371A	PIPE	400819371A PIPE	$79.34	1
035	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$5.77	2
036	WHT003868	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT003868 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$20.41	5
037	WHT003732	O-RING 24 X 3.5 IN STOCK	WHT003732 O-RING 24 X 3.5 IN STOCK	$26.76	1
038	WHT003731	O-RING 27 X 3.5 IN STOCK	WHT003731 O-RING 27 X 3.5 IN STOCK	$26.76	1
039	7L121119B	O-RING	7L121119B O-RING	$47.59	1
040	7L115446A	ENGINE OIL PUMP SEAL IN STOCK	7L115446A ENGINE OIL PUMP SEAL IN STOCK	$30.79	1
041	7L103081	OIL STRAINER	7L103081 OIL STRAINER	$26.91	8
044	7L121127B	WATER CONNECTION	7L121127B WATER CONNECTION	$264.76	1
045	79121119C	O-RING IN STOCK	79121119C O-RING IN STOCK	$17.46	1
