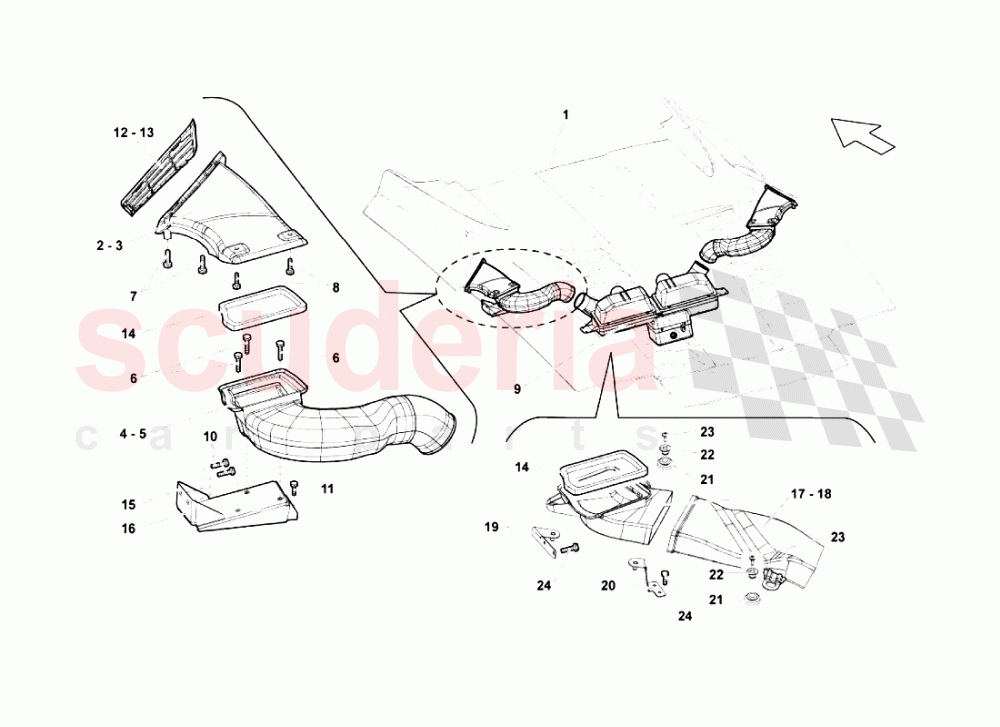

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	407827961C	LH CONVEYOR	407827961C LH CONVEYOR	$635.28	1
003	407827962C	RH CONVEYOR	407827962C RH CONVEYOR	$635.28	1
007	N10621601	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10621601 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$2.13	4
008	1Z0860505C	SCREW IN STOCK	1Z0860505C SCREW IN STOCK	$10.54	4
012	407827967	LEFT GRID	407827967 LEFT GRID	$252.03	1
012	407827967A	LEFT GRID (STYLE PACK)	407827967A LEFT GRID (STYLE PACK)	$252.03	1
013	407827968	RIGHT GRID	407827968 RIGHT GRID	$252.03	1
013	407827968A	RIGHT GRID (STYLE PACK) IN STOCK	407827968A RIGHT GRID (STYLE PACK) IN STOCK	$213.28 MSRP: ~~232.00~~ (8.1% off)	1
014	407827709A	RH GASKET	407827709A RH GASKET	$203.84	1
014	407827705A	LH GASKET	407827705A LH GASKET	$248.85	1
017	407129519	LH CONVEYOR	407129519 LH CONVEYOR	$295.77	1
018	407129520	RH CONVEYOR	407129520 RH CONVEYOR	$295.77	1
019	407133193	LH BRACKET	407133193 LH BRACKET	$17.77	1
019	407133194	RH BRACKET	407133194 RH BRACKET	$17.77	1
020	407133688	RH BRACKET	407133688 RH BRACKET	$19.74	1
020	407133689	LH BRACKET	407133689 LH BRACKET	$19.74	1
021	867129669	GROMMET	867129669 GROMMET	$2.32 MSRP: ~~7.07~~ (67.2% off)	6
022	6N0129734	BUSHING	6N0129734 BUSHING	$3.65	6
023	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.44	6
024	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.44	8
