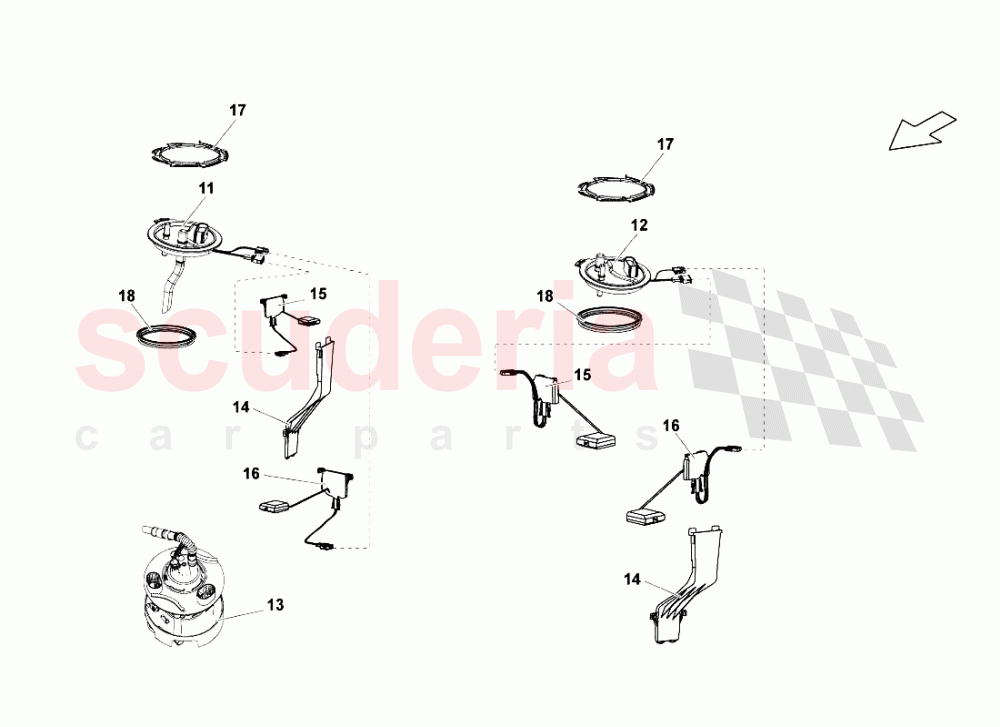

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
011	420201319C	BLIND FLANGE	420201319C BLIND FLANGE	$160.12	1
012	420201319B	BLIND FLANGE	420201319B BLIND FLANGE	$160.12	1
013	420201444A	FUEL PUMP IN STOCK	420201444A FUEL PUMP IN STOCK	$1,214.40	1
014	420919669	BRACKET	420919669 BRACKET	$8.14	2
015	420919673A	SENDER FOR FUEL GAUGE IN STOCK	420919673A SENDER FOR FUEL GAUGE IN STOCK	$180.87	2
016	420919673A	SENDER FOR FUEL GAUGE IN STOCK	420919673A SENDER FOR FUEL GAUGE IN STOCK	$180.87	2
017	4E0201375	UNION NUT	4E0201375 UNION NUT	$29.39	2
018	8E0919133G	SEAL RING IN STOCK	8E0919133G SEAL RING IN STOCK	$106.69	2
