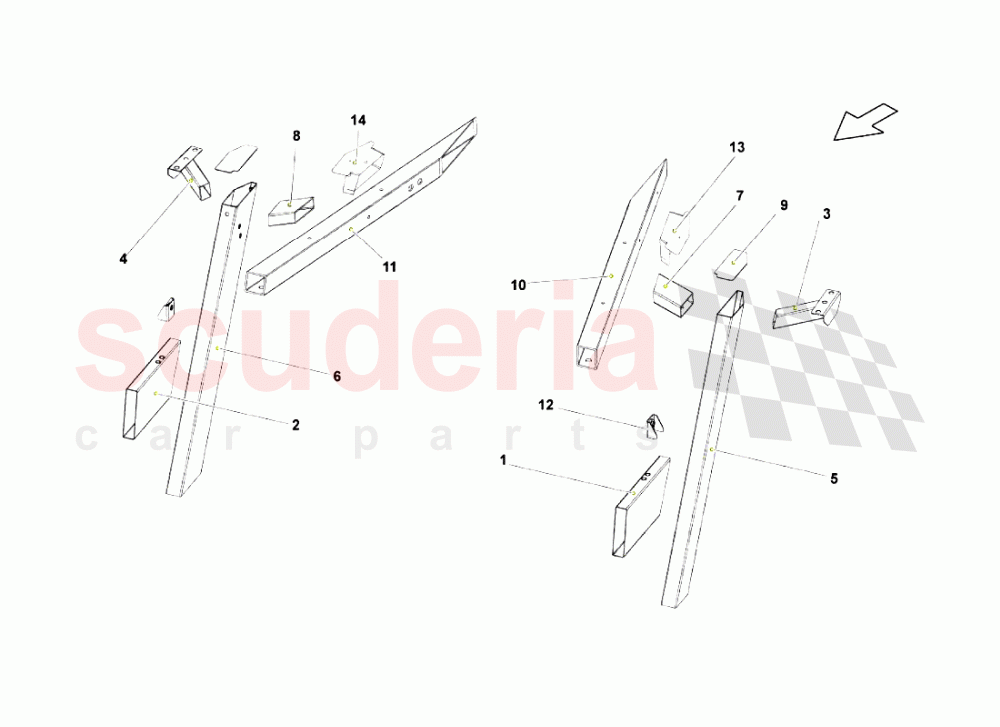

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400810243	BRACKET	$410.49	To Order

Photo	Part No	Description	Price (each)	Stock
	400810244	BRACKET	$410.49	To Order

Photo	Part No	Description	Price (each)	Stock
	400813891	FIXING ANGLE	$102.26	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	400803503	SIDE MEMBER	400803503 SIDE MEMBER	$352.90	1
02	400803504	SIDE MEMBER	400803504 SIDE MEMBER	$352.90	1
03	400810229A	CARRIER PART	400810229A CARRIER PART	$321.62	1
04	400810230A	CARRIER PART	400810230A CARRIER PART	$321.62	1
05	400809239	C A-PILLAR	400809239 C A-PILLAR	$525.59	1
06	400809240	C A-PILLAR	400809240 C A-PILLAR	$525.59	1
07	400809261	REINF.PILLAR C	400809261 REINF.PILLAR C	$119.38	1
08	400809262	REINF.PILLAR C	400809262 REINF.PILLAR C	$119.38	1
09	400809645	SHEET	400809645 SHEET	$89.12	2
10	400810243	BRACKET	400810243 BRACKET	$410.49	1
11	400810244	BRACKET	400810244 BRACKET	$410.49	1
12	400813891	FIXING ANGLE	400813891 FIXING ANGLE	$102.26	2
