Brake System

Lamborghini Gallardo (2003-2005)

Find Your Part

Lamborghini Gallardo (2003-2005) - Brake System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
400611742 RH PIPE (UNTIL THE VIN 6LA3976) $85.44 To Order
Photo Part No Description Price (each) Stock
400611949 PLATE $27.54 To Order
Photo Part No Description Price (each) Stock
400612173 CONNECTOR $1.33 To Order
Photo Part No Description Price (each) Stock
N10017303 NUT $0.44 To Order
Photo Part No Description Price (each) Stock
400611797 BRACKET $17.24 To Order
Photo Part No Description Price (each) Stock
443131541 VACUUM TANK ASSEMBLY $32.25 To Order
Photo Part No Description Price (each) Stock
400611741 LH PIPE (UNTIL THE VIN 6LA3976) $73.61 To Order
Photo Part No Description Price (each) Stock
400611809 CONNECTING PIECE $39.80 To Order
Photo Part No Description Price (each) Stock
402611764 RH REAR PIPE (UNTIL THE VIN 6LA3976) $50.14 To Order
Photo Part No Description Price (each) Stock
402611763 LH PIPE (UNTIL THE VIN 6LA3976) $43.99 To Order
Photo Part No Description Price (each) Stock
402611761 LH PIPE (UNTIL THE VIN 6LA3976) $40.92 To Order
Photo Part No Description Price (each) Stock
8Z0611797C CLAMP $1.68 To Order
Photo Part No Description Price (each) Stock
402611762 RH FRONT PIPE (UNTIL THE VIN 6LA3976) $25.60 To Order
Photo Part No Description Price (each) Stock
400611724 RH PIPE $48.39 To Order
Photo Part No Description Price (each) Stock
400611939A HOSE $47.60 To Order
Photo Part No Description Price (each) Stock
N10171102 SCREW (UNTIL THE VIN 6LA3976) $1.37 To Order
Photo Part No Description Price (each) Stock
400121220C RUBBER SUPPORT (UNTIL THE VIN 6LA3976) $31.17 To Order
Photo Part No Description Price (each) Stock
400121097A BRACKET $12.73 To Order
Photo Part No Description Price (each) Stock
N150825 NUT Enquire To Order
Photo Part No Description Price (each) Stock
1J0611853 SPACER $0.95 IN STOCK
Photo Part No Description Price (each) Stock
400611799 BRACKET 0 5 MM $0.72 IN STOCK
View All

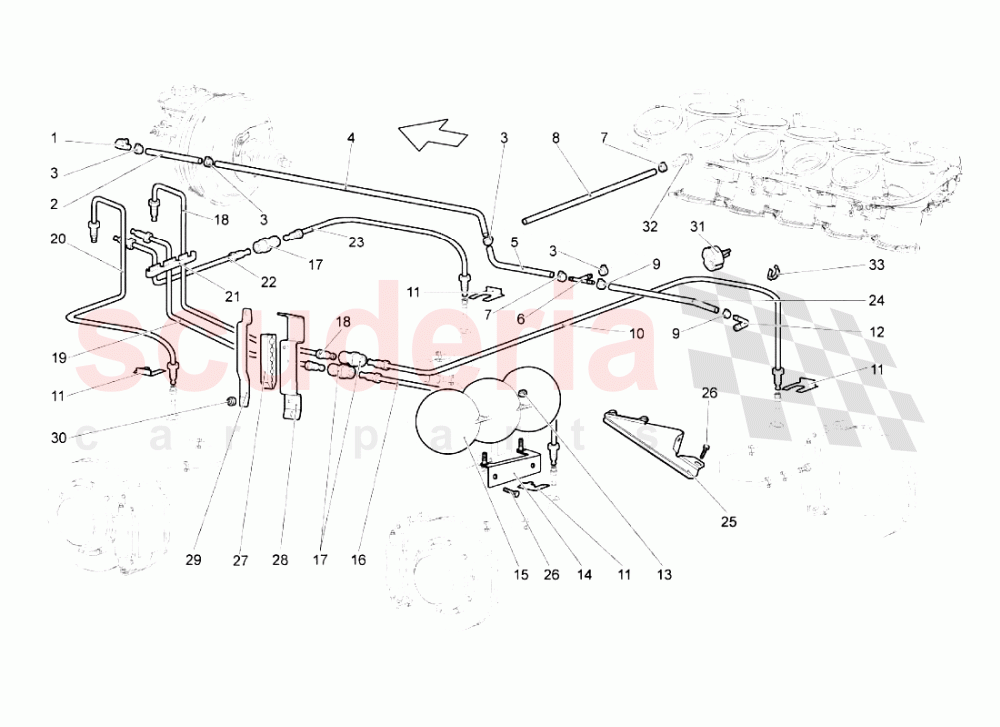

Brake System of Lamborghini Lamborghini Gallardo (2003-2005) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 400616807
CHECK VALVE 		$25.55 1
02 400611937A
HOSE (UNTIL THE VIN 6LA3976) 		$107.80 1
03 N10201901
CLAMP 		$1.93 (72.8% off) 4
04 400611936
PIPE (UNTIL THE VIN 6LA3976) 		$38.42 1
05 400611940
HOSE (UNTIL THE VIN 6LA3976) 		$72.32 1
06 400611921
CONNECTOR 		$1.88 (73.3% off) 1
07 N245097
CLAMP 		- 2 Enquire
08 400611937A
HOSE (UNTIL THE VIN 6LA3976) 		$107.80 1
09 400251189E
CLAMP 		$13.49 2
10 400611742
RH PIPE (UNTIL THE VIN 6LA3976) 		$85.44 1
11 400611949
PLATE 		$27.54 7
12 400612173
CONNECTOR 		$1.33 (81.5% off) 1
13 N10017303
NUT 		$0.44 (94% off) 2
14 400611797
BRACKET 		$17.24 1
15 443131541
VACUUM TANK ASSEMBLY 		$32.25 1
16 400611741
LH PIPE (UNTIL THE VIN 6LA3976) 		$73.61 1
17 400611809
CONNECTING PIECE 		$39.80 3
18 402611764
RH REAR PIPE (UNTIL THE VIN 6LA3976) 		$50.14 1
19 402611763
LH PIPE (UNTIL THE VIN 6LA3976) 		$43.99 1
20 402611761
LH PIPE (UNTIL THE VIN 6LA3976) 		$40.92 1
21 8Z0611797C
CLAMP 		$1.68 (76.3% off) 1
22 402611762
RH FRONT PIPE (UNTIL THE VIN 6LA3976) 		$25.60 1
23 400611724
RH PIPE 		$48.39 1
24 400611939A
HOSE 		$47.60 1
26 N10171102
SCREW (UNTIL THE VIN 6LA3976) 		$1.37 2
27 400121220C
RUBBER SUPPORT (UNTIL THE VIN 6LA3976) 		$31.17 8
29 400121097A
BRACKET 		$12.73 2
30 N150825
NUT 		- 4 Enquire
31 1J0611853
SPACER
IN STOCK 		$0.95 (86.9% off) 6
33 400611799
BRACKET 0 5 MM
IN STOCK 		$0.72 (90.1% off) 16
