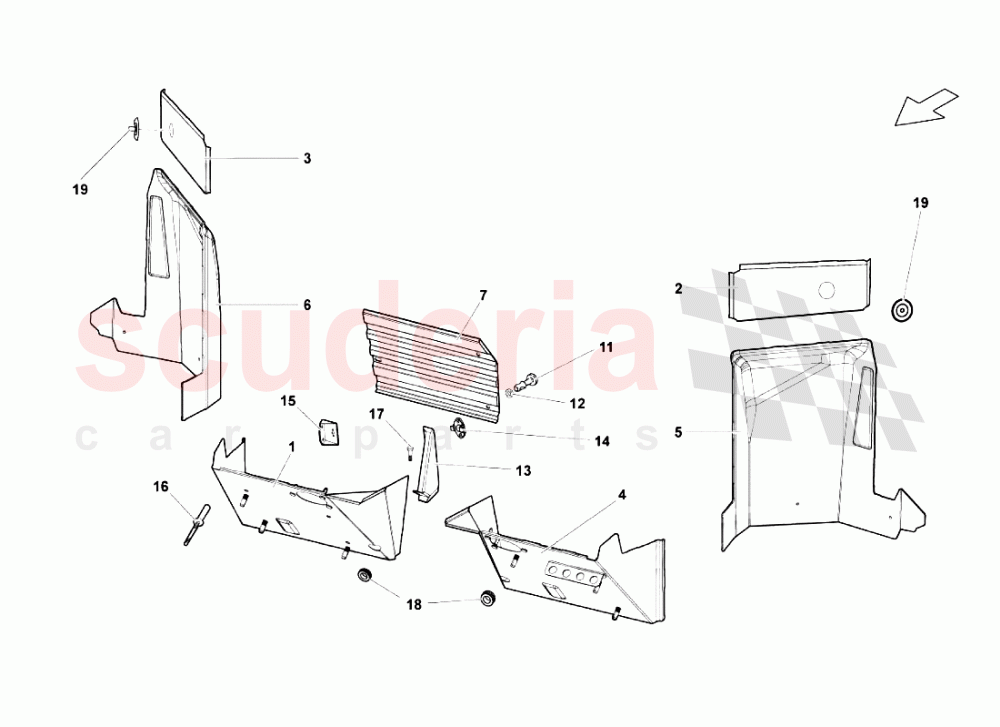

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400864519	CLOSING	$16.37	To Order

Photo	Part No	Description	Price (each)	Stock
	400864179	RUBBER WASHER	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	402864775C	SUPPORT	$52.14	To Order

Photo	Part No	Description	Price (each)	Stock
	470864994	CLIP	$7.44	To Order

Photo	Part No	Description	Price (each)	Stock
	400864776A	SUPPORT	$35.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N90931101	POP RIVET	$0.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10049309	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400820287	FAIRLEAD 18,5X25X1,5	$9.07	To Order

Photo	Part No	Description	Price (each)	Stock
	8D0721495B	FAIRLEAD	$13.54	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400805486	FRONT PANEL	400805486 FRONT PANEL	$388.36	1
02	400805863	LH PLATE	400805863 LH PLATE	$193.56	1
03	400805864	RH PLATE	400805864 RH PLATE	$193.56	1
04	400805485	FRONT PANEL	400805485 FRONT PANEL	$397.09	1
05	408805115	RIGHT FRONT WHEEL ARCH	408805115 RIGHT FRONT WHEEL ARCH	$698.03	1
06	408805116	RIGHT FRONT WHEEL ARCH	408805116 RIGHT FRONT WHEEL ARCH	$698.03	1
07	402864420B	FOOTREST	402864420B FOOTREST	$80.06	1
07	401864420B	FOOTREST	401864420B FOOTREST	$80.06	1
11	400864519	CLOSING	400864519 CLOSING	$16.37	3
12	400864179	RUBBER WASHER	400864179 RUBBER WASHER	$1.88	3
13	402864775C	SUPPORT	402864775C SUPPORT	$52.14	1
14	470864994	CLIP	470864994 CLIP	$7.44	3
15	400864776A	SUPPORT	400864776A SUPPORT	$35.66	1
16	N90931101	POP RIVET IN STOCK	N90931101 POP RIVET IN STOCK	$0.64 MSRP: ~~7.37~~ (91.3% off)	6
17	N10049309	SCREW	N10049309 SCREW	-	4	Enquire
18	400820287	FAIRLEAD 18,5X25X1,5	400820287 FAIRLEAD 18,5X25X1,5	$9.07	2
19	8D0721495B	FAIRLEAD	8D0721495B FAIRLEAD	$13.54	2
