Brake System of Lamborghini Lamborghini Gallardo (2008)

View All

Lamborghini Gallardo (2008) - Brake System

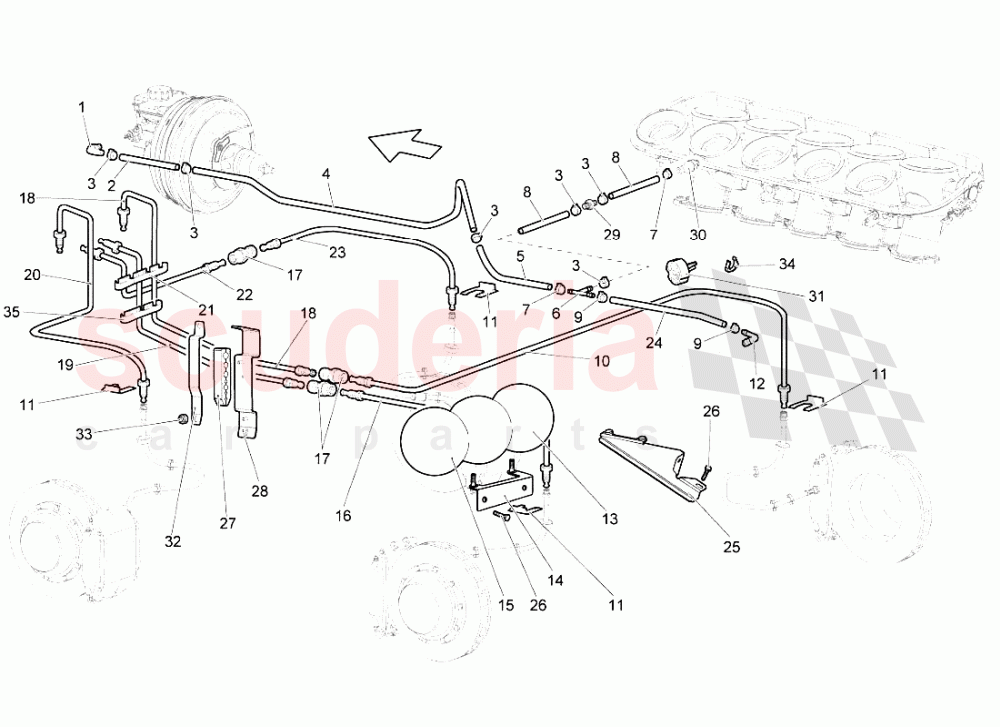

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400616807	CHECK VALVE	400616807 CHECK VALVE	$25.64	1
002	401611971B	HOSE	401611971B HOSE	$48.08	1
003	N10201901	CLAMP	N10201901 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	6
004	400611936A	PIPE	400611936A PIPE	$59.42	1
005	400611940B	HOSE	400611940B HOSE	$195.59	1
006	400611921	CONNECTOR	400611921 CONNECTOR	$1.89 MSRP: ~~7.04~~ (73.2% off)	1
007	N0245097	CLAMP	N0245097 CLAMP	$17.06	1
008	400611937C	HOSE	400611937C HOSE	$77.99	2
009	400251189E	CLAMP	400251189E CLAMP	$13.54	2
010	400611742B	RH PIPE	400611742B RH PIPE	$85.76	1
011	191611715	HOSE BRACKET	191611715 HOSE BRACKET	$1.94 MSRP: ~~7.14~~ (72.8% off)	7
012	400612173	CONNECTOR	400612173 CONNECTOR	$1.33 MSRP: ~~7.17~~ (81.5% off)	1
013	N10017303	NUT	N10017303 NUT	$0.44 MSRP: ~~7.32~~ (94% off)	2
014	400611797	BRACKET	400611797 BRACKET	$17.30	1
015	443131541	VACUUM TANK ASSEMBLY	443131541 VACUUM TANK ASSEMBLY	$32.36	1
016	400611741A	LH PIPE	400611741A LH PIPE	$73.88	1
017	400611809	CONNECTING PIECE	400611809 CONNECTING PIECE	$39.95	3
018	400611764A	RH REAR PIPE	400611764A RH REAR PIPE	$105.69	1
019	400611763A	LH PIPE	400611763A LH PIPE	$105.69	1
020	400611761A	LH PIPE	400611761A LH PIPE	$116.24	1
021	6N0611797D	CLAMP	6N0611797D CLAMP	$6.83	3
022	400611762A	RH FRONT PIPE	400611762A RH FRONT PIPE	$105.69	1
023	400611724	RH PIPE	400611724 RH PIPE	$48.57	1
024	400611939A	HOSE	400611939A HOSE	$47.78	1
026	N10171105	SCREW M6X16	N10171105 SCREW M6X16	$1.44	2
027	400121220D	RUBBER SUPPORT	400121220D RUBBER SUPPORT	$51.34	8
029	410616807	VALVE	410616807 VALVE	$33.38	1
031	1J0611853	SPACER IN STOCK	1J0611853 SPACER IN STOCK	$0.96 MSRP: ~~7.27~~ (86.8% off)	6
032	400121097A	BRACKET	400121097A BRACKET	$12.78	2
033	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	4
034	400611799	BRACKET 0 5 MM IN STOCK	400611799 BRACKET 0 5 MM IN STOCK	$0.72 MSRP: ~~7.28~~ (90.1% off)	12
035	8Z0611797C	CLAMP	8Z0611797C CLAMP	$1.69 MSRP: ~~7.10~~ (76.2% off)	1
