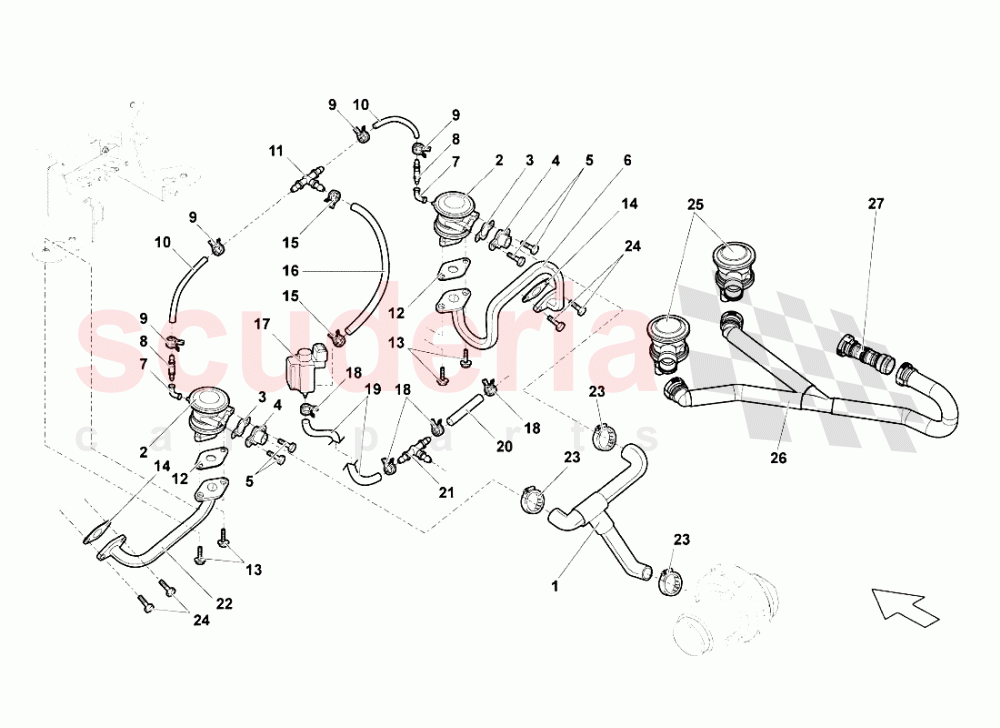

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
006	7L131626B	PIPE	7L131626B PIPE	$129.94	1
007	7L131756	CONNECTOR	7L131756 CONNECTOR	$26.58	4
008	400131791	CONNECTOR	400131791 CONNECTOR	$0.64	2
009	400133348	CLIP	400133348 CLIP	$0.37	4
010	7L131845	PIPE	7L131845 PIPE	$21.95	2
011	7L133579	T-PIECE	7L133579 T-PIECE	$7.45	1
012	7L131354	GASKET	7L131354 GASKET	$21.63	2
013	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$49.04	4
014	7L131357	GASKET	7L131357 GASKET	$44.98	2
015	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.37 MSRP: ~~7.33~~ (95% off)	2
016	7L133264	PIPE	7L133264 PIPE	$32.92	1
017	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE IN STOCK	$53.19	1
018	400133348	CLIP	400133348 CLIP	$0.37	4
019	7L131058	PIPE	7L131058 PIPE	$103.21	1
020	7L131385	PIPE	7L131385 PIPE	$24.30	1
021	7L133579	T-PIECE	7L133579 T-PIECE	$7.45	1
022	7L131625	PIPE	7L131625 PIPE	$126.20	1
024	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$49.04	4
025	79131101F	VALVE	79131101F VALVE	$144.94	2
026	7L133580	PIPE (UNTIL THE VIN 8LA05810)	7L133580 PIPE (UNTIL THE VIN 8LA05810)	$1,942.94	1
026	7L133580A	PIPE (FROM VIN 8LA05811)	7L133580A PIPE (FROM VIN 8LA05811)	$105.87	1
027	7L133383	PIPE (FROM VIN 8LA05811)	7L133383 PIPE (FROM VIN 8LA05811)	$24.55	1
