Lamborghini Gallardo (2008) - Doors 1

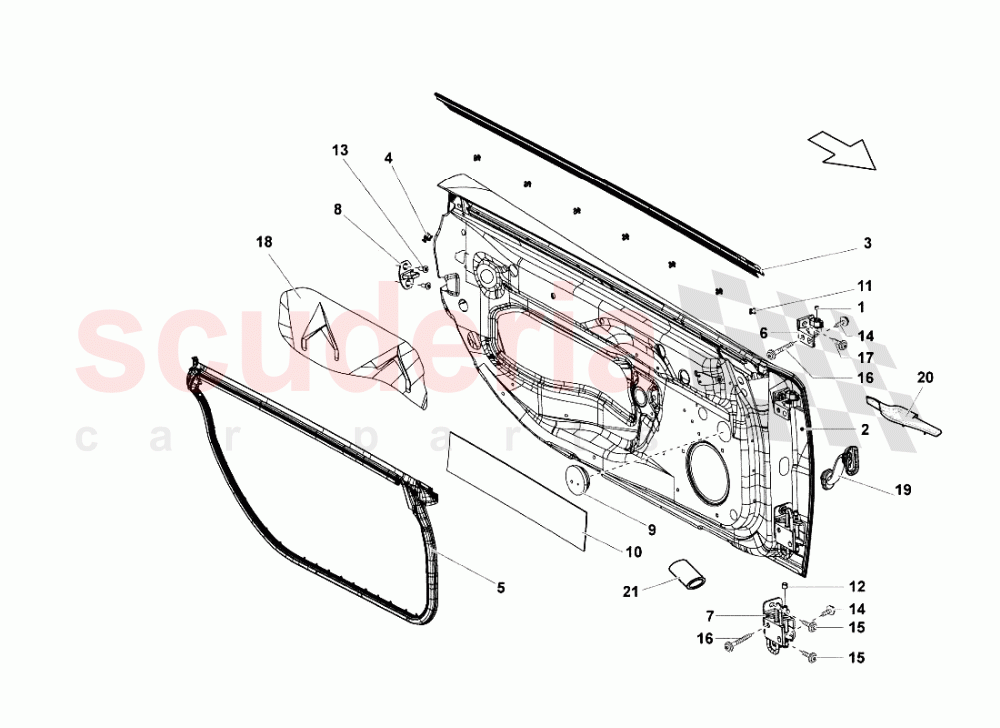

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	1H0837947	SCREW COVER IN STOCK	1H0837947 SCREW COVER IN STOCK	$0.37 MSRP: ~~7.34~~ (95% off)	2
002	400831021	DOOR, LH	400831021 DOOR, LH	$10,481.82	1
002	400831022	DOOR, RH	400831022 DOOR, RH	$10,481.82	1
003	400837478A	GLASS WEATHERSTRIP, RH	400837478A GLASS WEATHERSTRIP, RH	$139.61	1
003	400837477A	GLASS WEATHERSTRIP, LH	400837477A GLASS WEATHERSTRIP, LH	$139.61	1
004	400837498	COUPLING RING, RH	400837498 COUPLING RING, RH	$5.27	1
004	400837497	COUPLING RING, LH	400837497 COUPLING RING, LH	$5.27	1
005	400837911C	DOOR WEATHERSTRIP, OUTER LH	400837911C DOOR WEATHERSTRIP, OUTER LH	$299.89	1
005	400837912C	DOOR WEATHERSTRIP, OUTER RH	400837912C DOOR WEATHERSTRIP, OUTER RH	$299.89	1
006	4E0831401A	HINGE, UPPER LH	4E0831401A HINGE, UPPER LH	$70.38	1
006	4E0831402A	HINGE, UPPER RH	4E0831402A HINGE, UPPER RH	$70.38	1
007	4E0831411C	HINGE, LOWER LH	4E0831411C HINGE, LOWER LH	$104.20	1
007	4E0831412C	HINGE, LOWER RH	4E0831412C HINGE, LOWER RH	$104.20	1
008	8E0837033	LOCK STRIKER	8E0837033 LOCK STRIKER	$27.49	2
009	8E0971841E	BUSHING	8E0971841E BUSHING	$11.78	2
010	8L0837805	INSULATING COVERING	8L0837805 INSULATING COVERING	$3.88	4
011	8L3837199B	CLIP IN STOCK	8L3837199B CLIP IN STOCK	$0.97 MSRP: ~~7.25~~ (86.6% off)	16
012	8L3837947	SCREW COVER IN STOCK	8L3837947 SCREW COVER IN STOCK	$0.37 MSRP: ~~7.34~~ (95% off)	2
013	N91017401	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT IN STOCK	N91017401 COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT IN STOCK	$3.02 MSRP: ~~7.19~~ (58% off)	4
014	WHT001237	HEX SOCKET HEAD COLLARED BOLT IN STOCK	WHT001237 HEX SOCKET HEAD COLLARED BOLT IN STOCK	$1.37 MSRP: ~~7.16~~ (80.9% off)	4
015	WHT001230	HEXAGON SOCKET HEAD BOLT IN STOCK	WHT001230 HEXAGON SOCKET HEAD BOLT IN STOCK	$3.82	4
016	N91060501	SCREW M8X130X80	N91060501 SCREW M8X130X80	$51.01	4
017	8H0831701	HEX SOCKET HEAD COLLARED BOLT IN STOCK	8H0831701 HEX SOCKET HEAD COLLARED BOLT IN STOCK	$1.88 MSRP: ~~7.07~~ (73.4% off)	4
018	400863979	LH INSULATION	400863979 LH INSULATION	$1,940.67	1
018	400863980	RH INSULATION	400863980 RH INSULATION	$1,940.67	1
019	8P3959845A	SHEATH	8P3959845A SHEATH	$9.26	2
020	400863051	LH COVER	400863051 LH COVER	$5.27	1
020	400863052	RH COVER	400863052 RH COVER	$5.27	1
