DRIVEN SHAFT - PTO of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

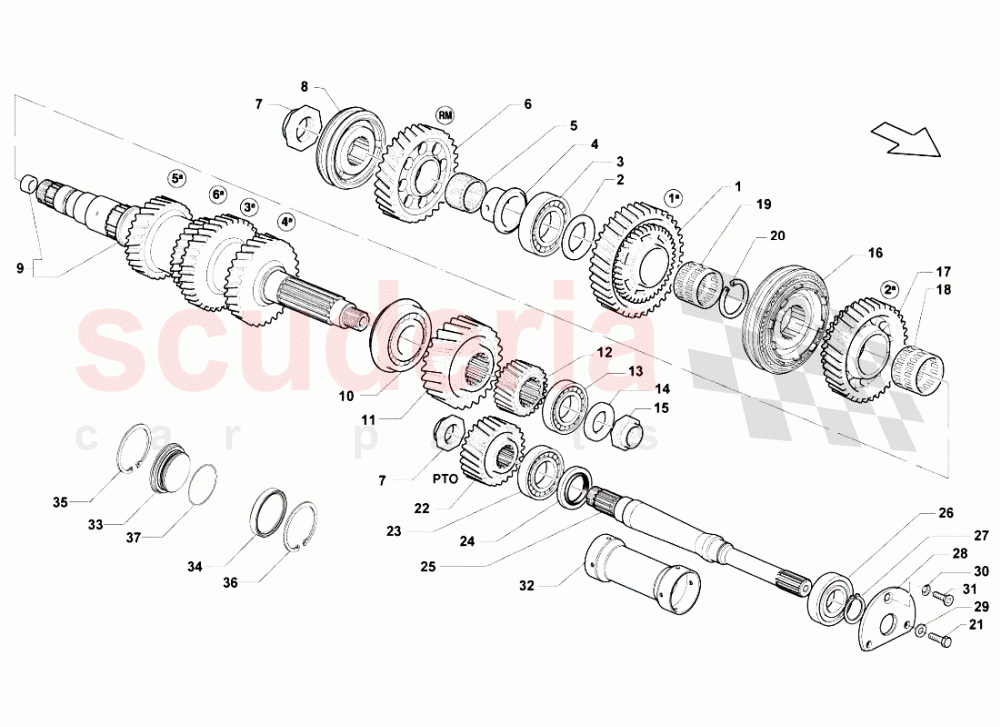

Lamborghini Gallardo LP550 Spyder - DRIVEN SHAFT - PTO

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	86311257A	FIRST GEAR	86311257A FIRST GEAR	$1,012.44	1
001	86311257G	FIRST GEAR (MANUAL GEARBOX)	86311257G FIRST GEAR (MANUAL GEARBOX)	$1,012.44	1
002	86311231	SPACER	86311231 SPACER	$83.97	1
003	86311372E	BEARING 35X72X17	86311372E BEARING 35X72X17	$207.75 MSRP: ~~212.00~~ (2% off)	1
004	86311423	BUSHING	86311423 BUSHING	$235.92	1
005	86311770	ROLLER CAGE	86311770 ROLLER CAGE	$82.48	1
006	86311532G	REVERSE IDLE GEAR (ORDER ALSO RIF.8 COD. 086311762E) -	86311532G REVERSE IDLE GEAR (ORDER ALSO RIF.8 COD. 086311762E) -	$1,044.98	1
007	86307303	RING NUT M27 X 15 IN STOCK	86307303 RING NUT M27 X 15 IN STOCK	$94.11	2
008	86311762D	SYNCHRONIZING GEAR (E-GEAR)	86311762D SYNCHRONIZING GEAR (E-GEAR)	$476.82	1
008	86311762E	SYNCHRONIZING GEAR (MANUAL GEARBOX-ORDER ALSO -	86311762E SYNCHRONIZING GEAR (MANUAL GEARBOX-ORDER ALSO -	$3,253.80	1
009	86311195M	MAIN SHAFT	86311195M MAIN SHAFT	$2,421.60	1
010	86311235C	BEARING 35X80X21	86311235C BEARING 35X80X21	$133.91	1
011	86311352D	GEAR	86311352D GEAR	$3,766.09	1
012	86311348E	GEAR	86311348E GEAR	$526.77	1
013	86311372F	BEARING 30X62X16	86311372F BEARING 30X62X16	$234.66 MSRP: ~~239.50~~ (2% off)	1
014	86307293	WASHER	86307293 WASHER	$26.71	1
015	86307304	RING NUT	86307304 RING NUT	$91.11	1
016	86311243C	SYNCHRONIZING GEAR (E-GEAR) -	86311243C SYNCHRONIZING GEAR (E-GEAR) -	$2,096.22	1
016	86311243B	SYNCHRONIZING GEAR (MANUAL GEARBOX)	86311243B SYNCHRONIZING GEAR (MANUAL GEARBOX)	$2,096.22	1
017	86311163F	SECOND GEAR	86311163F SECOND GEAR	$441.78	1
018	86311150	ROLLER CAGE	86311150 ROLLER CAGE	$73.98	1
019	86311132	ROLLER CAGE IN STOCK	86311132 ROLLER CAGE IN STOCK	$56.88	1
020	86311187A	RING	86311187A RING	$16.41	1
022	86311345A	GEAR	86311345A GEAR	$372.93	1
023	86311372G	BEARING 30X62X20 (4WD)	86311372G BEARING 30X62X20 (4WD)	$325.33	1
024	86311113A	RETAINING RING	86311113A RETAINING RING	$48.50	1
025	86311106B	PTO SHAFT (4WD)	86311106B PTO SHAFT (4WD)	$974.68	1
026	86311133A	BEARING IN STOCK	86311133A BEARING IN STOCK	$82.48	1
027	86311317	RING IN STOCK	86311317 RING IN STOCK	$5.45	1
028	86525283B	COVER	86525283B COVER	$162.67	1
030	86311276	WASHER ( FOR 086525283A)	86311276 WASHER ( FOR 086525283A)	$0.86 MSRP: ~~7.25~~ (88.1% off)	1
032	86311713	PROTECTION (4WD)	86311713 PROTECTION (4WD)	$41.29	1
033	86311137	PLUG (2WD - VALENTINO BALBONI)	86311137 PLUG (2WD - VALENTINO BALBONI)	$145.75	1
034	86311120	PLUG (2WD - VALENTINO BALBONI)	86311120 PLUG (2WD - VALENTINO BALBONI)	$145.75	1
