LEFT HEAD TIMING SYSTEM of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

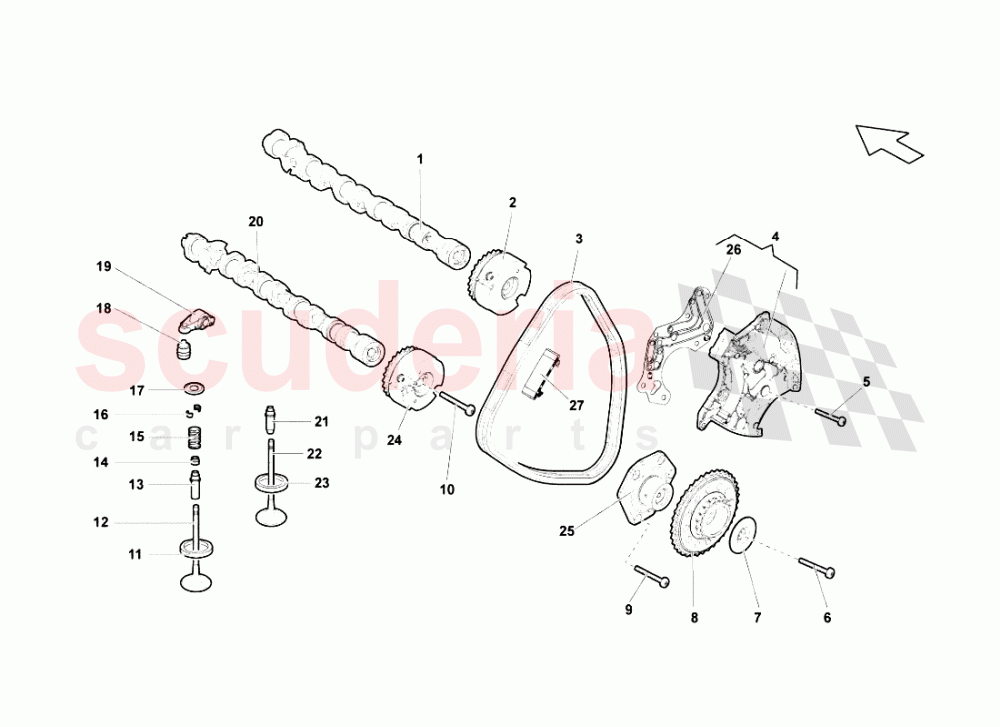

Lamborghini Gallardo LP550 Spyder - LEFT HEAD TIMING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L109103AG	INTAKE CAMSHAFT -	7L109103AG INTAKE CAMSHAFT -	$1,114.33	1
002	7L109083H	CAMSHAFT ADJUSTER UNIT	7L109083H CAMSHAFT ADJUSTER UNIT	$527.20	1
003	6E109465AN	PHASE TRANSFORMER - IN STOCK	6E109465AN PHASE TRANSFORMER - IN STOCK	$204.83	1
004	79109217R	Chain Tightener IN STOCK	79109217R Chain Tightener IN STOCK	$269.77	1
005	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.68	6
006	N90888502	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90888502 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.32 MSRP: ~~7.13~~ (67.5% off)	1
007	79109180A	AXIAL BEARING	79109180A AXIAL BEARING	$20.49	1
008	79109077G	THRUST BEARING -	79109077G THRUST BEARING -	$222.37	1
009	N90954903	HEX SOCKET COUNTERSUNK BOLT	N90954903 HEX SOCKET COUNTERSUNK BOLT	$1.44 MSRP: ~~7.29~~ (80.2% off)	3
010	N91042802	FLAT HEAD MULTI-POINT SOCKET BOLT M12 X 1.25 X 60 X 30 IN STOCK	N91042802 FLAT HEAD MULTI-POINT SOCKET BOLT M12 X 1.25 X 60 X 30 IN STOCK	$6.97	2
011	6D103431M	EXHAUST VALVE SEAT -	6D103431M EXHAUST VALVE SEAT -	$17.99	10
012	6D109611H	EXHAUST VALVE	6D109611H EXHAUST VALVE	$948.18	10
014	57109675	VALVE STEM SEAL IN STOCK	57109675 VALVE STEM SEAL IN STOCK	$28.83	20
015	6E109623	SPRING	6E109623 SPRING	$44.47	20
016	36109651	COTTER, SPLIT	36109651 COTTER, SPLIT	$2.58	40
017	6E109641A	SPRING DISC	6E109641A SPRING DISC	$17.26	20
018	22109423C	HYDRAULIC ELEMENT - IN STOCK	22109423C HYDRAULIC ELEMENT - IN STOCK	$20.49	20
019	79109409B	ROLLER ROCKER ARM	79109409B ROLLER ROCKER ARM	$82.94	20
020	7L109104N	EXHAUST CAMSHAFT -	7L109104N EXHAUST CAMSHAFT -	$1,114.33	1
022	79109601B	INTAKE VALVE -	79109601B INTAKE VALVE -	$50.49	10
023	79103441D	INTAKE VALVE SEAT -	79103441D INTAKE VALVE SEAT -	$17.99	10

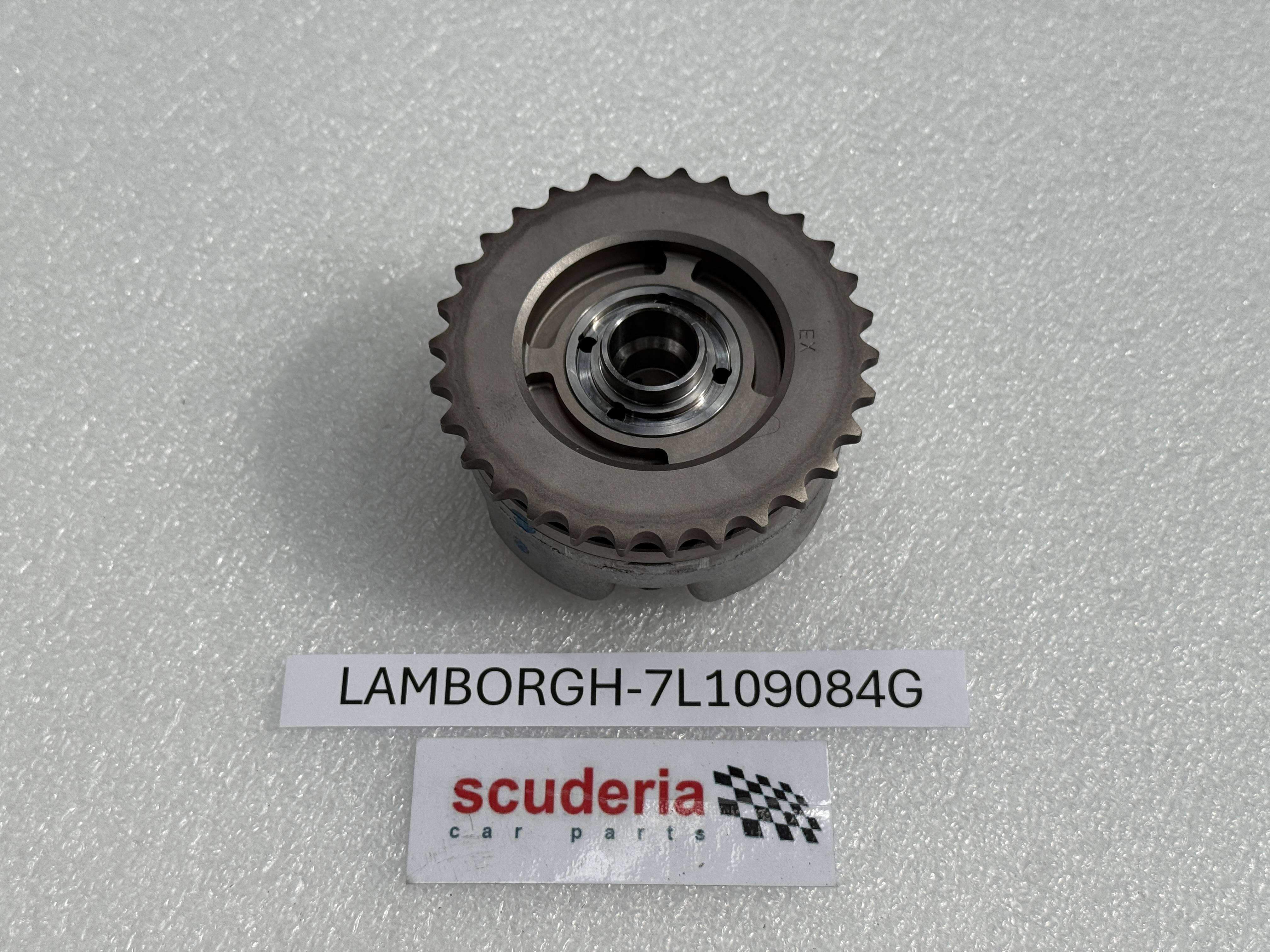

024	7L109084G	CAMSHAFT ADJUSTER UNIT IN STOCK	7L109084G CAMSHAFT ADJUSTER UNIT IN STOCK	$544.54	1
025	79109224F	BEARING PIN	79109224F BEARING PIN	$96.82	1
026	79109139J	SEAL IN STOCK	79109139J SEAL IN STOCK	$19.04	1
027	79109470	COVERING IN STOCK	79109470 COVERING IN STOCK	$5.39	1
