Lamborghini Gallardo LP550 Spyder - TIMING CHAIN COVER ? PROPELLER SHAFT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

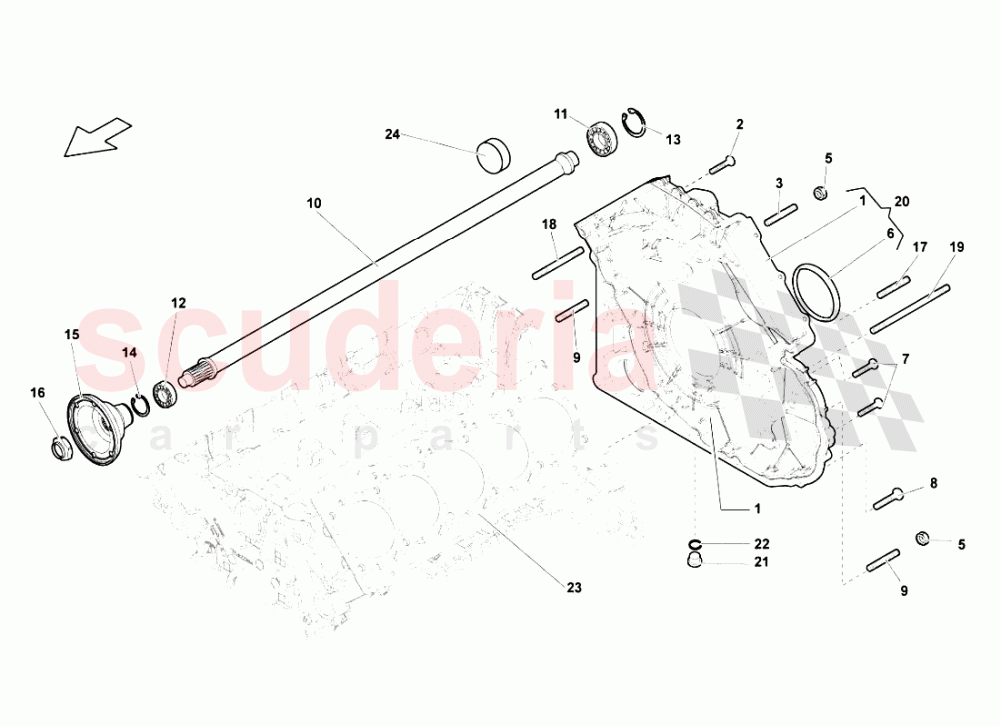

TIMING CHAIN COVER ? PROPELLER SHAFT of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 N10124306
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$1.75 13
003 WHT000198
STUD BOLT M10XM12X84 		$43.92 3
005 N10261311
HEXAGON NUT
IN STOCK 		$2.13 (70.7% off) 9
006 7L103051A
O-RING
IN STOCK 		$61.48 1
007 N10156206
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.76 10
008 N91068601
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.39 (52.2% off) 6
009 WHT002302
STUD BOLT M10 2MX59 		$5.89 2
010 86311101H
Input Shaft 		$874.55 1
011 86311435A
Ball Bearing (35x52x14)
ARRIVING SOON 		$120.77 1
012 86311430A
Ball Bearing (25x52x15) 		$56.95 1
013 N0123191
RETAINING RING 		$5.60 1
014 N0122902
RETAINING RING
IN STOCK 		$4.39 1
015 86311845
FLANGE 		$159.74 1
016 86311495
HEXAGON NUT 		$30.82 1
017 WHT002302
STUD BOLT M10 2MX59 		$5.89 2
018 WHT000197
STUD BOLT M10XM12X90 		$31.31 1
019 WHT002301
STUD BOLT M10 2MX167 		$27.06 1
020 7L103171AP
STUD BOLT M10 2MX167 - 		$1,115.12 (7.1% off) 1
021 N91119401
SEALING PLUG M10 X 1 X 10
IN STOCK 		$6.14 1
022 N0138063
SEAL RING OUTER D.14 INNER D.10
ARRIVING SOON 		$3.05 1
024 7L103037
BUNGS 		$5.46 1
