Engine Control Unit of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

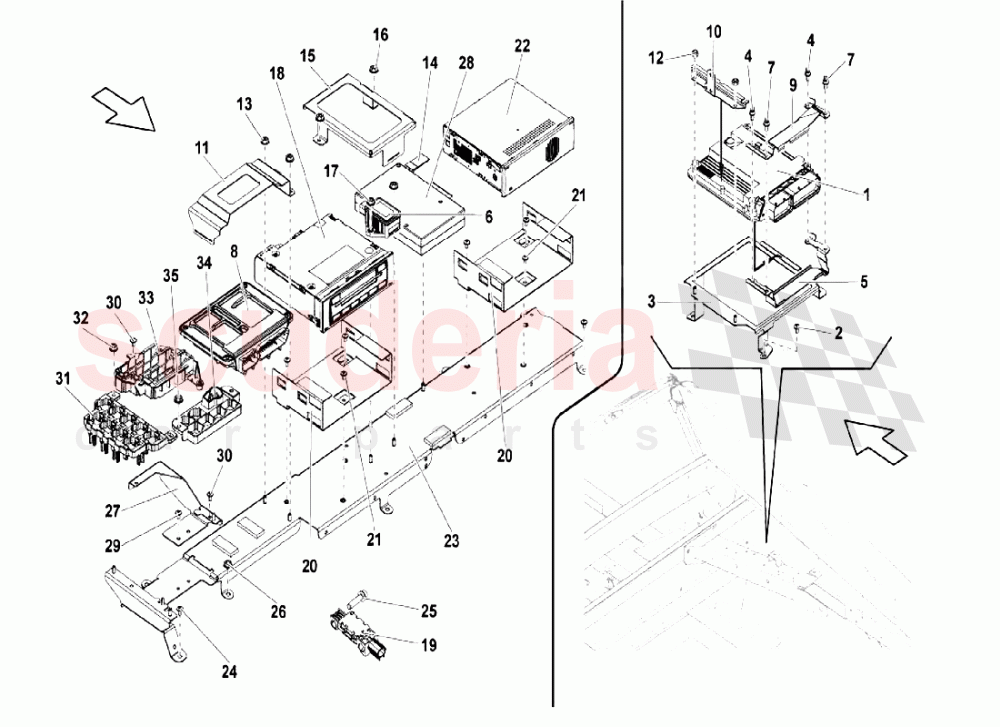

Lamborghini Gallardo LP550 Coupe - Engine Control Unit

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400907552E	LIE CONTROL UNIT - 2WD (NOT FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	400907552E LIE CONTROL UNIT - 2WD (NOT FOR A MARKET SCANDINAVIA -ORDER ALSO REF. 4 - 7)	$5,271.81	1
002	N91096601	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096601 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	6
003	408907348B	LH BRACKET	408907348B LH BRACKET	$85.95	1
003	408907324A	RH BRACKET	408907324A RH BRACKET	$1,107.86	1
004	N91217601	SHEAR BOLT IN STOCK	N91217601 SHEAR BOLT IN STOCK	$1.62	4
005	8E0907411J	BRACKET	8E0907411J BRACKET	$60.70	2
006	420907637	YAWRATE SENSOR (ESP)	420907637 YAWRATE SENSOR (ESP)	$1,063.11	1
007	N90980304	SCREW M6X12 IN STOCK	N90980304 SCREW M6X12 IN STOCK	$1.88 MSRP: ~~7.20~~ (73.9% off)	4
008	400927156B	E-GEAR CONTROL UNIT (2WD)	400927156B E-GEAR CONTROL UNIT (2WD)	$1,548.74	3
009	8E0907500J	BRACKET	8E0907500J BRACKET	$39.18	2
010	408907354A	LH BRACKET	408907354A LH BRACKET	$14.57	1
010	408907649A	RH BRACKET	408907649A RH BRACKET	$14.57	1
011	408907347B	BRACKET (E-GEAR)	408907347B BRACKET (E-GEAR)	$29.61	1
012	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	4
013	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
015	408862399	BRACKET (BLUETOOTH CONTROL UNIT)	408862399 BRACKET (BLUETOOTH CONTROL UNIT)	$41.10	1
016	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
017	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
019	400980655	AIR BAG SENSOR	400980655 AIR BAG SENSOR	$143.63	2
021	N91020102	SCREW M6X14	N91020102 SCREW M6X14	$1.24 MSRP: ~~7.31~~ (83% off)	6
023	408035643B	SUPPORT	408035643B SUPPORT	$146.13	1
024	N91096601	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096601 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	7
025	N10227805	SCREW M6X20.0 IN STOCK	N10227805 SCREW M6X20.0 IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	2
026	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	1
027	420971845R	BRACKET	420971845R BRACKET	$19.42	1
029	N91020102	SCREW M6X14	N91020102 SCREW M6X14	$1.24 MSRP: ~~7.31~~ (83% off)	2
030	N10595002	ROUND HD. SCREW IN STOCK	N10595002 ROUND HD. SCREW IN STOCK	$1.56	2
031	4F0937503	SUPPORT (ENGINE RELAY BOX WIRING HARNESS)	4F0937503 SUPPORT (ENGINE RELAY BOX WIRING HARNESS)	$10.74	1
032	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
033	4F1971845A	RETAINER FOR FUSE SOCKET	4F1971845A RETAINER FOR FUSE SOCKET	$13.68	1
034	4F1937545	SUPPORT (CENTRAL WIRING HARNESS)	4F1937545 SUPPORT (CENTRAL WIRING HARNESS)	$6.75	1
035	N10597201	HEXAGON COLLAR NUT SELF-LOCKING	N10597201 HEXAGON COLLAR NUT SELF-LOCKING	$2.07 MSRP: ~~7.28~~ (71.6% off)	2
