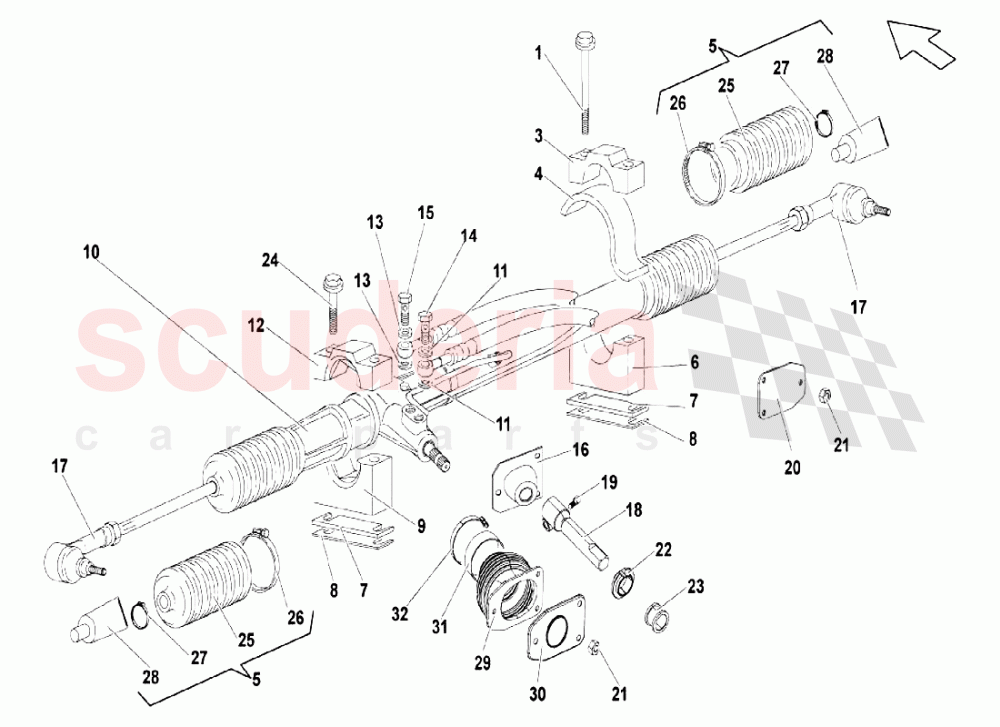

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10570202	SCREW BM10X90X45	N10570202 SCREW BM10X90X45	$6.13	2
003	423422874	RIGHT SUPPORT	423422874 RIGHT SUPPORT	$83.12	1
004	420422850	RUBBER SHIM	420422850 RUBBER SHIM	$9.06	1
006	423422761	SUPPORT	423422761 SUPPORT	$72.17	1
010	402422061H	POWER STEERING RACK	402422061H POWER STEERING RACK	$5,324.59	1
011	N0138487	SEAL RING IN STOCK	N0138487 SEAL RING IN STOCK	$4.04 MSRP: ~~7.21~~ (44% off)	2
013	N0138495	SEAL RING IN STOCK	N0138495 SEAL RING IN STOCK	$4.04 MSRP: ~~7.21~~ (44% off)	2
014	N90467405	SCREW	N90467405 SCREW	$5.49	1
015	8E0422529	CHECK VALVE	8E0422529 CHECK VALVE	$17.49	1
018	400419753C	SLEEVE	400419753C SLEEVE	$536.28	1
019	N10518405	SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. IN STOCK	N10518405 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. IN STOCK	$3.30 MSRP: ~~7.10~~ (53.5% off)	1
020	400419780	GASKET	400419780 GASKET	$42.65	1
021	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.20	1
024	N90956402	SCREW AM10X45	N90956402 SCREW AM10X45	$4.47	2
025	420419831	BOOT	420419831 BOOT	$32.44	2
026	N10728901	CLAMP	N10728901 CLAMP	$6.20	2
027	6Q0423933B	CLAMP IN STOCK	6Q0423933B CLAMP IN STOCK	$3.33	2
029	400422326A	GASKET	400422326A GASKET	$49.41	1
030	400422268	PLATE	400422268 PLATE	$28.54	1
031	420422389	GASKET	420422389 GASKET	$13.48	1
032	N10279501	CLAMP	N10279501 CLAMP	$12.19	1
