Frame Elements - Floor Assembly of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

Lamborghini Gallardo LP550 Coupe - Frame Elements - Floor Assembly

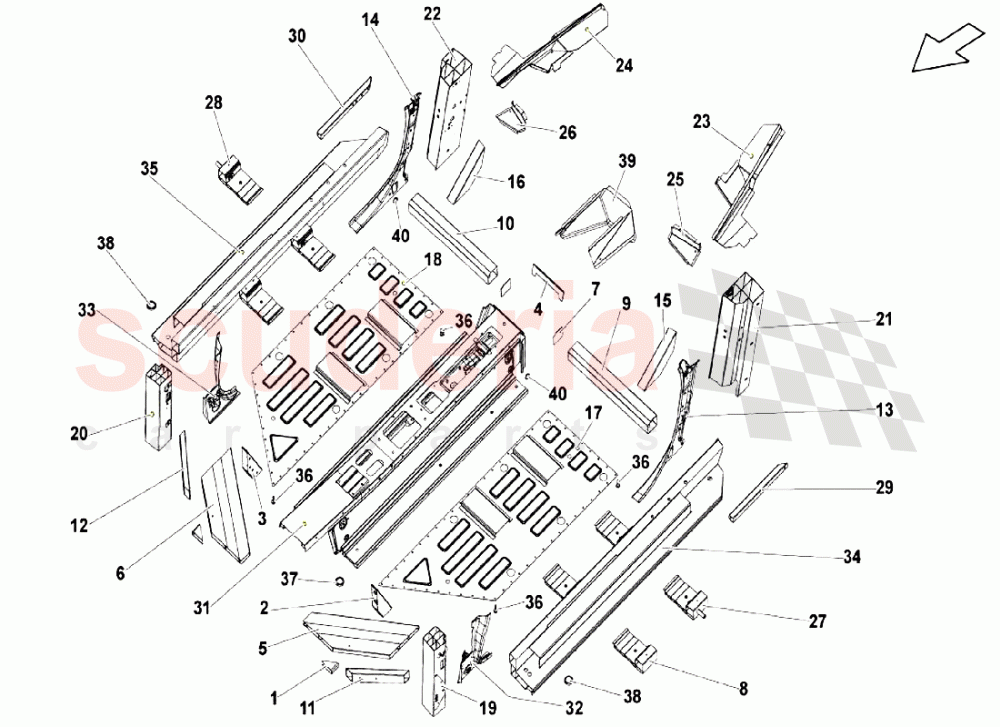

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400802451	SUPPORT	400802451 SUPPORT	$372.01	2
002	400802725	SUPPORT	400802725 SUPPORT	$1,073.50	1
003	400802726	SUPPORT	400802726 SUPPORT	$1,073.50	1
005	400803033A	SIDE MEMBER	400803033A SIDE MEMBER	$418.51	1
006	400803034A	SIDE MEMBER	400803034A SIDE MEMBER	$4,976.67	1
007	400803177	SHEET	400803177 SHEET	$79.81	2
008	400803243	BRACKET	400803243 BRACKET	$287.80	1
009	400803291A	CROSS MEMBER	400803291A CROSS MEMBER	$487.61	1
010	400803292A	CROSS MEMBER	400803292A CROSS MEMBER	$487.61	1
011	400805861	SIDE MEMBER	400805861 SIDE MEMBER	$1,690.67	1
012	400805862	SIDE MEMBER	400805862 SIDE MEMBER	$1,690.67	1
013	400809223	C A-PILLAR, INSIDE	400809223 C A-PILLAR, INSIDE	$721.36 MSRP: ~~1,425.00~~ (49.4% off)	1
014	400809224	C A-PILLAR, INSIDE	400809224 C A-PILLAR, INSIDE	$1,621.19	1
015	400809971	BRACKET	400809971 BRACKET	$242.55	1
016	400809972	BRACKET	400809972 BRACKET	$242.55	1
017	408803061	BOARD	408803061 BOARD	$923.91	1
018	408803062	BOARD	408803062 BOARD	$923.91	1
019	408809205	A A-PILLAR, INFERIOR	408809205 A A-PILLAR, INFERIOR	$3,104.80	1
020	408809206	A A-PILLAR, INFERIOR	408809206 A A-PILLAR, INFERIOR	$3,104.80	1
021	408809221A	B A-PILLAR, OUTSIDE	408809221A B A-PILLAR, OUTSIDE	$772.90	1
022	408809222A	B A-PILLAR, OUTSIDE	408809222A B A-PILLAR, OUTSIDE	$765.37	1
023	408810205	SUPPORT	408810205 SUPPORT	$510.25	1
024	408810206	SUPPORT	408810206 SUPPORT	$510.25	1
025	408813563	LH ANGLE PIECE	408813563 LH ANGLE PIECE	$339.31	1
026	408813564	RH ANGLE PIECE	408813564 RH ANGLE PIECE	$339.31	1
027	400803151F	BRACKET	400803151F BRACKET	$1,389.01	1
028	400803152F	BRACKET	400803152F BRACKET	$1,389.01	1
029	400809321A	BRACKET	400809321A BRACKET	$254.50	1
030	400809322A	BRACKET	400809322A BRACKET	$254.50	1
031	408802061F	FLOOR,CENTER	408802061F FLOOR,CENTER	$4,028.68	1
032	408802125A	A A-PILLAR, INSIDE	408802125A A A-PILLAR, INSIDE	$501.44	1
033	408802126A	A A-PILLAR, INSIDE	408802126A A A-PILLAR, INSIDE	$470.02	1
034	408802255G	SIDE MEMBER	408802255G SIDE MEMBER	$4,669.76	1
035	408802256G	SIDE MEMBER	408802256G SIDE MEMBER	$4,669.76	1
036	N90919302	SCREW M5X18	N90919302 SCREW M5X18	$0.72 MSRP: ~~7.27~~ (90.1% off)	54
038	4E0804297	PLUG D = 30 IN STOCK	4E0804297 PLUG D = 30 IN STOCK	$2.60 MSRP: ~~7.25~~ (64.1% off)	13
039	400802853A	SHEET	400802853A SHEET	$428.54	1
040	N10249701	PLUG D = 18	N10249701 PLUG D = 18	$0.63 MSRP: ~~7.35~~ (91.4% off)	5
