Pedal Lever System - Brake Servo 2

Lamborghini Gallardo LP550 Coupe

Find Your Part

Lamborghini Gallardo LP550 Coupe - Pedal Lever System - Brake Servo 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

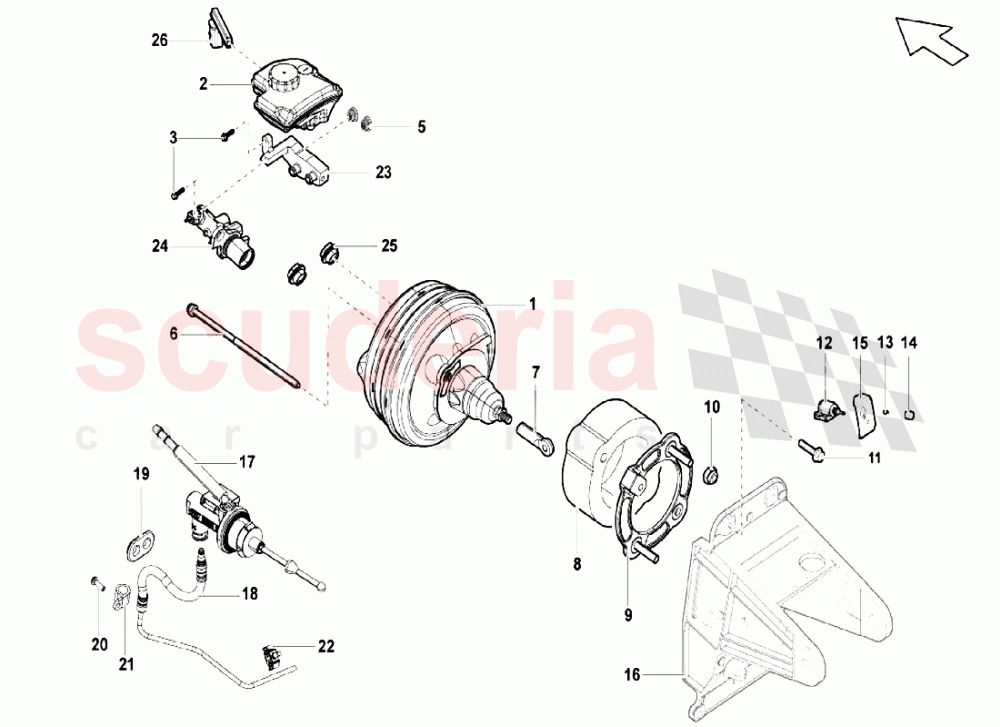

Pedal Lever System - Brake Servo 2 of Lamborghini Lamborghini Gallardo LP550 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4E1612107B
POWER BRAKE - 		$974.19 1
002 3D0611301B
RESERVOIR FOR BRAKE FLUID 		$144.88 1
003 N90638803
HEXAGON BOLT 		$1.62 (77.7% off) 2
005 4A0611817A
BUNGS
IN STOCK 		$4.50 (53.1% off) 2
006 N91087301
SCREW M8X250X70 		$8.86 2
007 402721339
BALL JOINT COUPLING (FOR GDX CARS) 		$183.57 1
008 402614209
SPACER 		$279.70 1
009 400614130
SPACER 		$360.87 1
010 N10609202
HEXAGON COLLAR NUT
IN STOCK 		$0.35 2
011 N10025004
SCREW 		$2.50 (65.5% off) 4
012 1K2945511RDW
SWITCH (WARNING USE 410721633B)
IN STOCK 		$69.72 1
013 N10620801
OVAL HEAD PANEL SCREW
IN STOCK 		$0.83 (88.7% off) 2
014 400721589A
BUFFER 		$57.27 1
015 400721633B
STOP SWITCH SUPPORT 		$57.07 1
017 400721401A
CLUTCH PUMP (MANUAL GEARBOX) 		$749.21 1
018 402721461C
PIPE (MANUAL GEARBOX) 		$285.34 1
019 400721493
FAIRLEAD 		$28.11 1
020 N10124304
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.68 1
021 N0206027
CLAMP 		$3.77 1
022 6Q0611797E
BRACKET 		$4.25 1
023 400611329A
SUPPORT (MANUAL GEARBOX) - 		$278.45 1
024 3D0611021
MASTERCYLINDER (MANUAL GEARBOX) - 		$525.82 1
025 WHT000428
MASTERCYLINDER (MANUAL GEARBOX) - 		$11.18 2
026 8E0611377
OIL LEVEL SENSOR - 		$26.85 1
