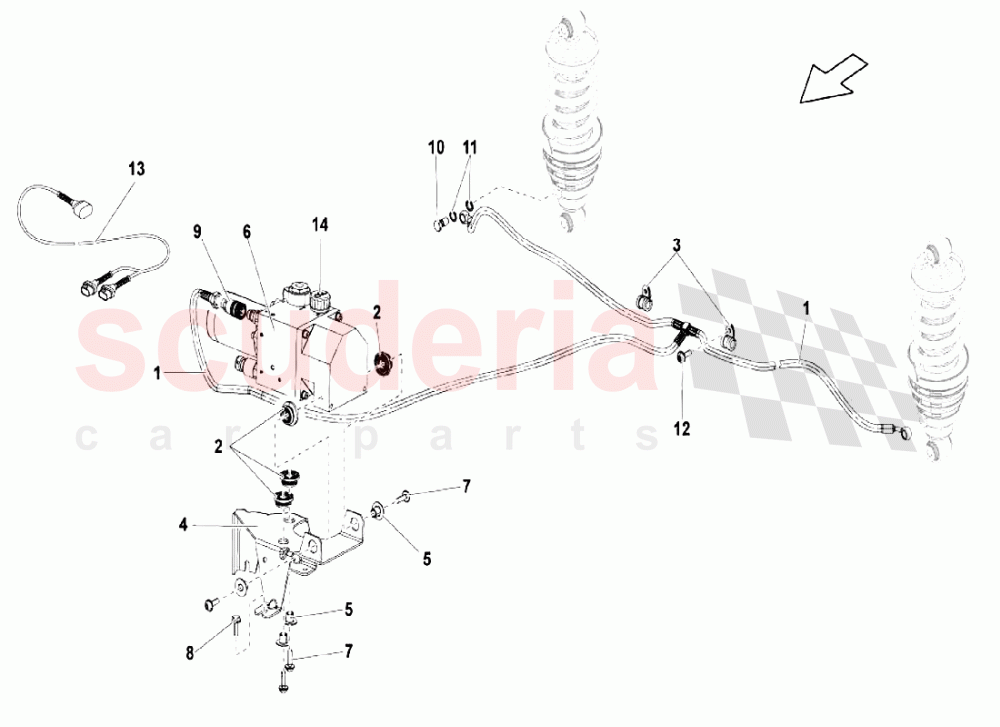

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	401616733A	HOSE	401616733A HOSE	$436.49	1
001	402616733A	HOSE	402616733A HOSE	$335.18	1
002	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$5.88	4
003	N0206517	CLAMP	N0206517 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	2
004	402412161	SUPPORT	402412161 SUPPORT	$51.72	1
004	401412161A	SUPPORT	401412161A SUPPORT	$228.26	1
005	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$7.96	4
007	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.69	4
008	N90533003	BOLT, HEX. HD. (COMBI.) SELF-LOCKING IN STOCK	N90533003 BOLT, HEX. HD. (COMBI.) SELF-LOCKING IN STOCK	$2.83	3
009	86325273A	CONNECTION (FROM VIN 6LA04010) IN STOCK	86325273A CONNECTION (FROM VIN 6LA04010) IN STOCK	$271.69 MSRP: ~~295.00~~ (7.9% off)	1
010	WHT003303	SCREW WITH HOLE	WHT003303 SCREW WITH HOLE	$12.09	2
011	400616817A	WASHER IN STOCK	400616817A WASHER IN STOCK	$2.75	4
012	N10553804	HEXAGON HEAD BOLT (COMBI)	N10553804 HEXAGON HEAD BOLT (COMBI)	$1.83 MSRP: ~~7.07~~ (74.1% off)	2
013	400971059C	WIRING HARNESS	400971059C WIRING HARNESS	$71.28	1
014	400412409	OIL FILLER CAP	400412409 OIL FILLER CAP	$59.49 MSRP: ~~75.00~~ (20.7% off)	1
