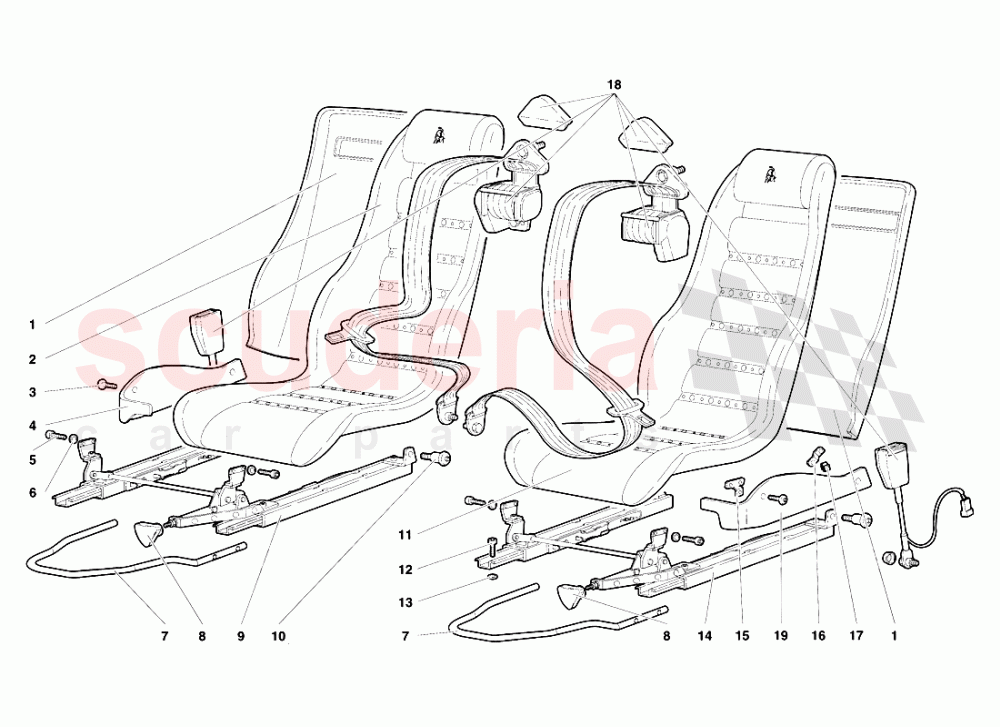

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9435231	REAR PANEL SEAT	9435231 REAR PANEL SEAT PANNELLO RETROSCHIENALE	$240.41	2
002	9435004	RIGHT SEAT	9435004 RIGHT SEAT SEDILEDX	-	1	Enquire
003	8700543	SCREW	8700543 SCREW VITE	$3.07	4
004	9435312	RIGHT SIDE PANEL	9435312 RIGHT SIDE PANEL PANNELLO LATERALE DX	$150.48	1
005	8700617	SCREW IN STOCK	8700617 SCREW VITE IN STOCK	$0.23 MSRP: ~~7.35~~ (96.9% off)	8
006	8410601	WASHER	8410601 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	8
007	9435207	LEVER	9435207 LEVER LEVA	-	2	Enquire
008	7035114	KNOB	7035114 KNOB POMELLO	$166.04	2
009	9435002	RIGHT SEAT GUIDE	9435002 RIGHT SEAT GUIDE GUIDA SEDILEDX	$947.81	1
010	9435232	PIN	9435232 PIN PERNO	$29.11 MSRP: ~~32.70~~ (11% off)	4
011	9435005	LEFT SEAT	9435005 LEFT SEAT SEDILE SX	-	1	Enquire
012	8700847	SCREW	8700847 SCREW VITE	$1.73 MSRP: ~~7.06~~ (75.5% off)	8
013	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	8
014	9435003	LEFT SEAT GUIDE	9435003 LEFT SEAT GUIDE GUIDA SEDILE SX	$947.81	1
015	9435228	RIGHT BRACKET IN STOCK	9435228 RIGHT BRACKET STAFFA DX IN STOCK	$10.38	1
015	9435229	LEFT BRACKET	9435229 LEFT BRACKET STAFFA SX	$10.38	1
016	9435227	BRACKET	9435227 BRACKET STAFFA	$7.50	2
017	8220503	CLIP	8220503 CLIP MOLLETTA	$9.75 MSRP: ~~10.90~~ (10.6% off)	4
018	9490300	SEATS BELTS	9490300 SEATS BELTS CINTURE Dl SICUREZZA	$207.19	1
019	9435313	LEFT SIDE PANEL	9435313 LEFT SIDE PANEL PANNELLO LATERALE SX	$175.57	1
