Rear Brakes of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

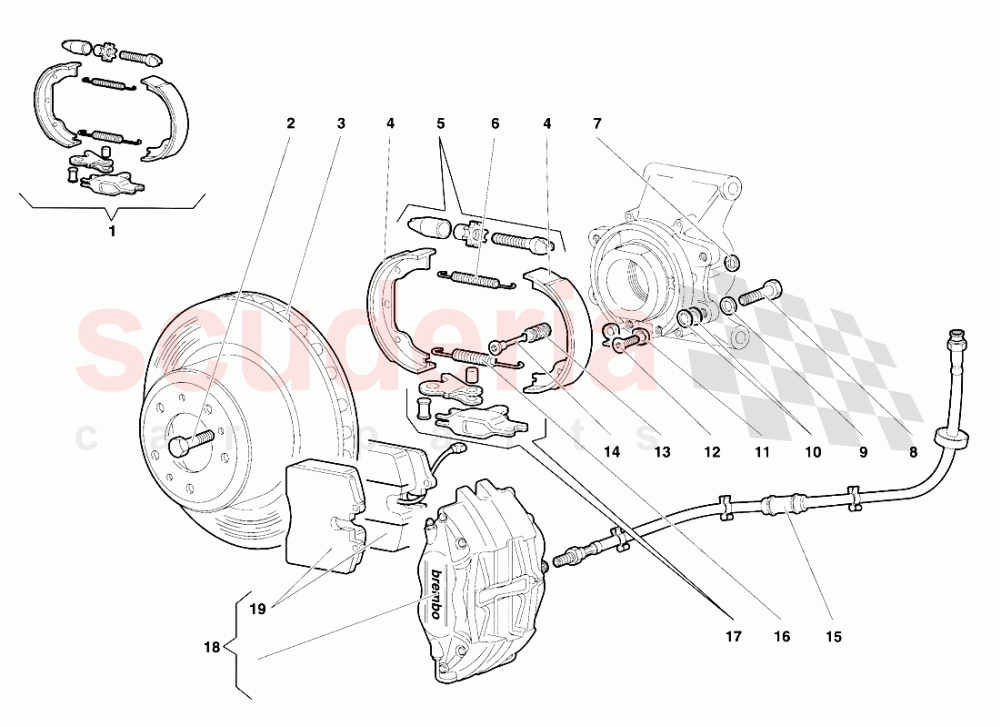

Lamborghini Diablo VT (1993-1998) - Rear Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3334400	KIT HAND BRAKE SYS.	3334400 KIT HAND BRAKE SYS. KIT FRENO A MANO PER VETTURA	$972.22	2
002	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.16 MSRP: ~~7.23~~ (70.1% off)	6
003	3233608	REAR BRAKE DISC	3233608 REAR BRAKE DISC DISCO FRENO POST.	$965.77	2
004	3334931	BRAKE SHOE	3334931 BRAKE SHOE GANASCIA FRENI	$382.34	2
005	3334935	ADJ/SCREW	3334935 ADJ/SCREW VITE REGOLAZIONE	$125.27	1
006	3334934	SPRING	3334934 SPRING MOLLA	$37.75	1
007	3332391	CLIP	3332391 CLIP FERMAGLIO	$8.62	4
008	3132195	SCREW	3132195 SCREW VITE	$29.03	4
009	8401306	WASHER	8401306 WASHER RONDELLA	$2.16	4
010	3230727	SHIM	3230727 SHIM SPESSORE Dl REGISTRO 1 MM	$3.06	1
010	3230724	SHIM	3230724 SHIM SPESSORE Dl REGISTRO 0,5 MM	$0.38	1
010	3230720	SHIM	3230720 SHIM SPESSORE Dl REGISTRO 0,1 MM	$13.82	1
010	3230721	SHIM	3230721 SHIM SPESSORE Dl REGISTRO 0,2 MM	$0.38	1
011	3332388	SUPPORT - SUPPORTO	3332388 SUPPORT - SUPPORTO O	$197.84	1
012	8701023	SCREW	8701023 SCREW VITE	$0.38	2
013	3332390	SPRING	3332390 SPRING MOLLA	$34.42	4
014	3332389	PIN	3332389 PIN PERNO	$88.74	4
015	3229882	PIPE IN STOCK	3229882 PIPE TUBO FRENO IN STOCK	$162.63 MSRP: ~~174.50~~ (6.8% off)	2
016	3334933	SPRING	3334933 SPRING MOLLA	$37.75	1
017	3334932	IDLE LEVER	3334932 IDLE LEVER LEVERAGGIO	$128.20	1
018	3233612	RIGHT BRAKE CALIPER	3233612 RIGHT BRAKE CALIPER PINZA FRENI DX	$1,913.98	1
018	3233611	LEFT BRAKE CALIPER	3233611 LEFT BRAKE CALIPER PINZA FRENI SX	$2,411.49	1
019	3234508	PAGID KIT PADS BRAKE	3234508 PAGID KIT PADS BRAKE KIT FRENO PAGID	-	1	Enquire
019	3234514	GULFER KIT PADS BRA.	3234514 GULFER KIT PADS BRA. KIT PASTIGLIE GULFER	-	1	Enquire
