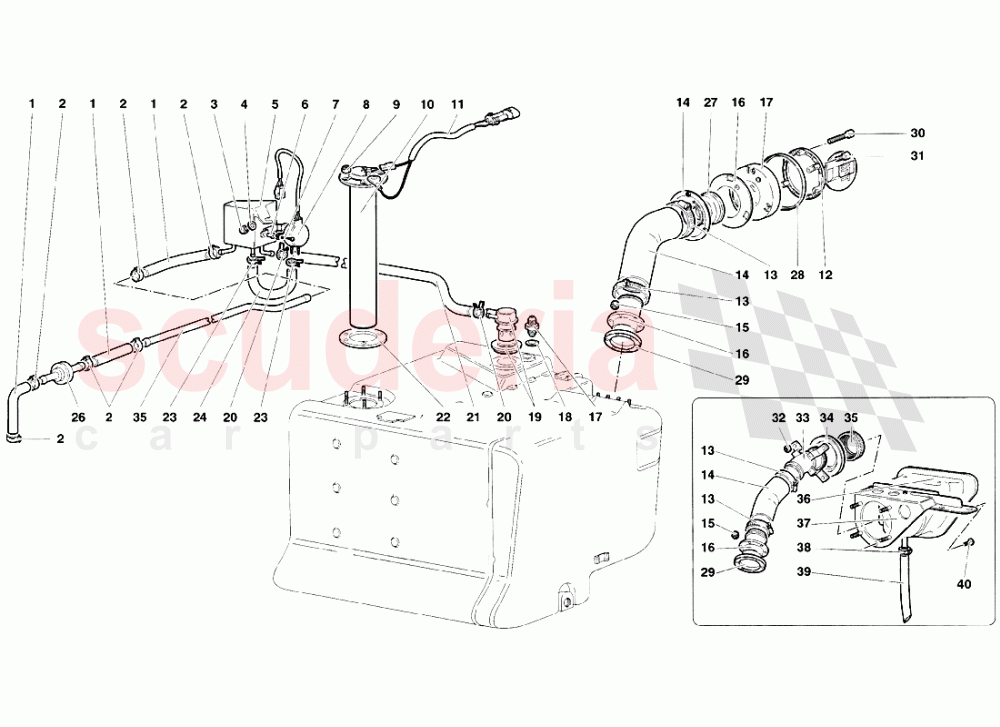

Lamborghini Diablo SV (1998) - Fuel System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	62001398	PIPE	62001398 PIPE TUBO	$12.45 MSRP: ~~13.50~~ (7.8% off)	3
002	8831528	CLAMP	8831528 CLAMP FASCETTA	$8.75	6
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	1
004	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
005	62001351	SEGREGATOR	62001351 SEGREGATOR SEPARATORE VAPORI BENZ.	$297.81 MSRP: ~~431.00~~ (30.9% off)	1
006	62001396	RUBBER BUSHING	62001396 RUBBER BUSHING BOCCOLA GOMMA	$1.90 MSRP: ~~2.10~~ (9.5% off)	2
007	8700346	SCREW	8700346 SCREW VITE	$0.08 MSRP: ~~7.38~~ (98.9% off)	2
008	400906206	EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	400906206 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	$2,465.14	1
009	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	5
010	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE INDICATORE LIVELLO CARBUR.	$319.21 MSRP: ~~666.00~~ (52.1% off)	1
011	6135126	ELECT CABLE	6135126 ELECT CABLE CABLAGGIO GALLEGGIANTE	$8.93 MSRP: ~~9.75~~ (8.4% off)	1
012	9490521	TANK CAP	9490521 TANK CAP TAPPO SERBATOIO	$231.07	1
013	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
014	6235263	PIPE	6235263 PIPE TUBO	$289.24	1
015	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.77 MSRP: ~~7.26~~ (89.4% off)	6
016	6237497	UNION	6237497 UNION BOCCHETTONE	$119.27 MSRP: ~~129.50~~ (7.9% off)	1
017	62001267	CONNECTION	62001267 CONNECTION RACCORDO	$31.41 MSRP: ~~35.40~~ (11.3% off)	1
018	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
019	62001272	ROLL OVER VALVE	62001272 ROLL OVER VALVE VALVOLA ROLL OVER	$314.63 MSRP: ~~343.00~~ (8.3% off)	1
020	8830131	CLAMP	8830131 CLAMP FASCETTA	$5.52	2
021	62001160	PIPE	62001160 PIPE TUBO	$12.90 MSRP: ~~14.45~~ (10.7% off)	1
022	6229649	FUEL LEVEL GAUGE FLANGE SEAL IN STOCK	6229649 FUEL LEVEL GAUGE FLANGE SEAL GUARNIZIONE IN STOCK	$27.72	1
023	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
024	62001397	PIPE	62001397 PIPE TUBO	$5.41 MSRP: ~~5.95~~ (9.1% off)	1
025	6237081	PIPE	6237081 PIPE TUBO	$41.55 MSRP: ~~45.10~~ (7.9% off)	1
026	62001313	VALVE	62001313 VALVE VALVOLA	$29.57 MSRP: ~~32.15~~ (8% off)	1
027	9490531	REDUCER	9490531 REDUCER (Valid for ARABIA - November 1998) RIDUZIONE	-	1	Enquire
027	9490529	REDUCER	9490529 REDUCER RIDUZIONE	$107.19	1
027	9490531	REDUCER	9490531 REDUCER (Valid for SOUTH AFRICA - November 1998) RIDUZIONE	-	1	Enquire
027	9490531	REDUCER	9490531 REDUCER (Valid for DUBAI - November 1998) RIDUZIONE	-	1	Enquire
028	9490523	RING	9490523 RING ANELLO	$16.62	1
029	6205360	GASKET IN STOCK	6205360 GASKET GUARNIZIONE IN STOCK	$130.77	1
030	8740505	SCREW	8740505 SCREW VITE	$0.32	3
031	8740512	DOWEL	8740512 DOWEL GRAND	$0.19	3
032	8200513	NUT	8200513 NUT (Valid for USA - November 1998) DADO	$0.15	4
033	62001582	UNION	62001582 UNION (Valid for DUBAI - November 1998) BOCCHETTONE	$471.33 MSRP: ~~513.00~~ (8.1% off)	1
033	62001582	UNION	62001582 UNION (Valid for ARABIA - November 1998) BOCCHETTONE	$471.33 MSRP: ~~513.00~~ (8.1% off)	1
033	62001582	UNION	62001582 UNION (Valid for SOUTH AFRICA - November 1998) BOCCHETTONE	$471.33 MSRP: ~~513.00~~ (8.1% off)	1
033	6237498	UNION	6237498 UNION (Valid for USA - November 1998) BOCCHETTONE	$479.40 MSRP: ~~520.00~~ (7.8% off)	1
034	9409215	GASKET	9409215 GASKET (Valid for USA - November 1998) GUARNIZIONE	$30.48 MSRP: ~~34.30~~ (11.1% off)	1
035	62006258	TANK CAP	62006258 TANK CAP (Valid for USA - November 1998) TAPPO SERBATOIO	-	1	Enquire
036	66001581	CASE	66001581 CASE (Valid for USA - November 1998) SCATOLA	$102.00 MSRP: ~~111.00~~ (8.1% off)	1
037	66001339	SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO	66001339 SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO (Valid for USA - November 1998) O	$220.68	1
038	8832205	STRAP	8832205 STRAP (Valid for USA - November 1998) FASCETTA	$19.20 MSRP: ~~21.50~~ (10.7% off)	1
039	9490516	PIPE	9490516 PIPE (Valid for USA - November 1998) TUBO	$12.34 MSRP: ~~13.45~~ (8.3% off)	1
040	8740685	SCREW IN STOCK	8740685 SCREW (Valid for USA - November 1998) VITE IN STOCK	$19.90	3
