Rear Suspension of Lamborghini Lamborghini Diablo SV (1998)

View All

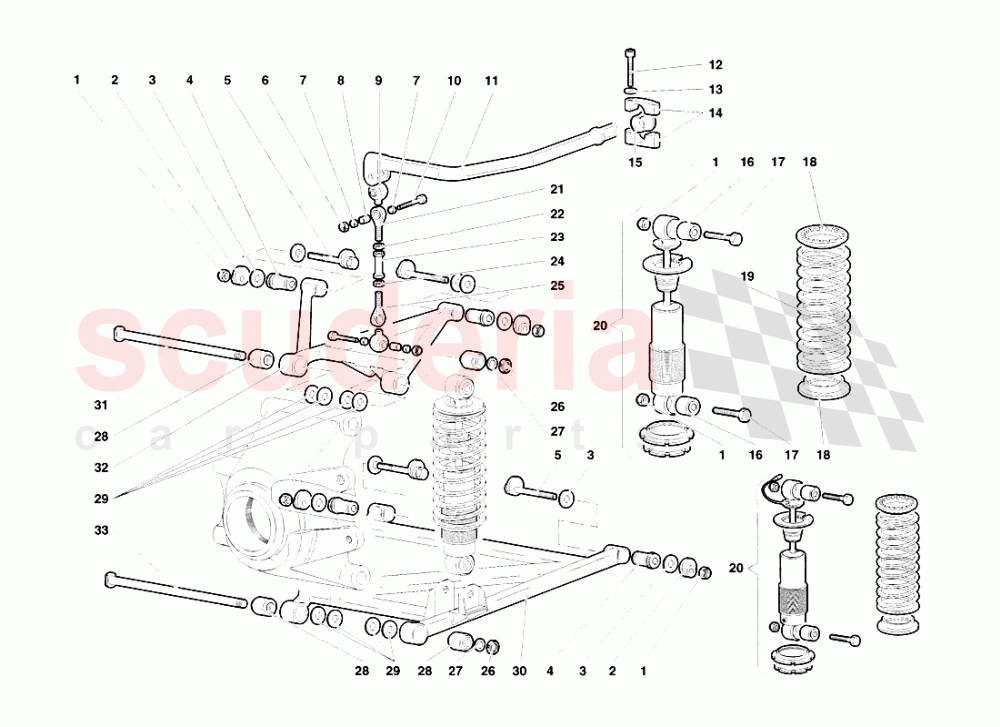

Lamborghini Diablo SV (1998) - Rear Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.57	8
002	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,181.77	8
003	410407295D	WASHER	410407295D WASHER SPESSORE 3 MM	$27.73	1
003	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM SPESSORE 2 MM	$6.27	1
003	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE 1 MM	$4.27	1
003	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM SPESSORE 2,5 MM	$6.90	1
003	5133488	SHIM	5133488 SHIM SPESSORE 1,5 MM	$3.12	1
004	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$46.94	8
005	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,181.77	8
006	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	4
007	5227297	BUSHING	5227297 BUSHING BOCCOLA	$30.19	8
008	5227298	BUSHING	5227298 BUSHING BOCCOLA	$16.44 MSRP: ~~17.80~~ (7.6% off)	4
009	5109714	BOOT	5109714 BOOT CUFFIA	$24.50	4
010	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	4
011	5234393	TORSION BAR	5234393 TORSION BAR BARRATORSIONE	$3,206.79	1
012	WHT002960	SCREW IN STOCK	WHT002960 SCREW VITE IN STOCK	$8.28	4
013	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	4
014	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$290.56	2
015	5238302	BUSHING IN STOCK	5238302 BUSHING BOCCOLA IN STOCK	$135.13	2
016	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$552.97	8
017	8101269	SCREW	8101269 SCREW VITE	$4.88	8
018	410512385	RUBBER RING	410512385 RUBBER RING	$49.85	8
019	5226157	SPRING	5226157 SPRING MOLLA	$355.42 MSRP: ~~398.00~~ (10.7% off)	4
020	5233269	SHOCK ABSORBER	5233269 SHOCK ABSORBER AMMORTIZZATORE	$707.35	4
020	5233166	SHOCK ABSORBER (lifting system)	5233166 SHOCK ABSORBER (lifting system) use part number 0R1320014 kit	-	4	Enquire
021	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$249.53	2
022	8201034	NUT	8201034 NUT DADO	$1.57 MSRP: ~~7.10~~ (77.9% off)	2
023	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$106.51 MSRP: ~~115.00~~ (7.4% off)	2
024	8201035	NUT	8201035 NUT DADO	$1.23 MSRP: ~~7.13~~ (82.7% off)	2
025	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$142.50	2
026	8251702	PLUG IN STOCK	8251702 PLUG GHIERA IN STOCK	$3.59 MSRP: ~~3.95~~ (9.1% off)	4
027	8401708	WASHER	8401708 WASHER RONDELLA	$2.38 MSRP: ~~2.55~~ (6.7% off)	4
028	5225207	RESILIENT BUSHING	5225207 RESILIENT BUSHING BOCCOLA ELASTICA	$424.10	8
029	8401710	WASHER	8401710 WASHER RONDELLA	$38.68	24
030	5225906	ARM	5225906 ARM BRACCIO INFERIORE DX	$1,857.16	1
030	5225907	ARM	5225907 ARM BRACCIO INFERIORE SX	$1,836.86	1
031	5225204	PIN	5225204 PIN PERNO	$85.68 MSRP: ~~92.50~~ (7.4% off)	2
032	5225909	ARM	5225909 ARM BRACCIO SUPERIORE SX	$2,498.15	1
032	5225908	RH UPPER SUSPENSION ARM	5225908 RH UPPER SUSPENSION ARM	$2,228.55	1
033	5225205	PIN	5225205 PIN PERNO	$85.68 MSRP: ~~92.50~~ (7.4% off)	2
