Lamborghini Diablo SV (1998) - Front Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

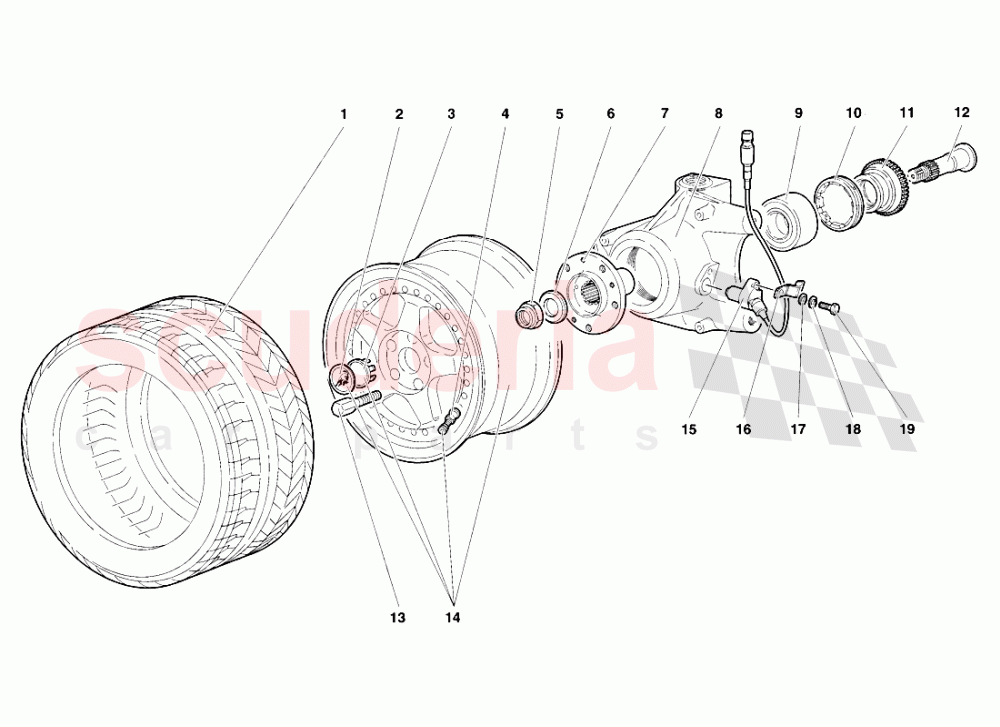

Front Wheel and Hub Carrier of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 51000542
FRONT TYRE
PNEUMATICO ANT. 235/35 ZR 18 		$900.81 2
002 5236291
ORNAMENT
FREGIO -USE: 0052006285 		$32.33 2
003 5335195
SUPPORT - SUPPORTO
O 		$30.61 (11.1% off) 2
004 5330906
VALVE
VALVOLA 		$47.54 2
005 410407338
NUT
DADO 		$572.93 2
006 410407631
WASHER 		$174.13 2
007 51001039
HUB
MOZZO 		$514.00 (10.9% off) 2
008 51000983
LEFT HUB HOUSING
PORTAMOZZO SX 		$3,589.84 (11% off) 1
008 51000984
RIGHT HUB HOUSING
PORTAMOZZO DX 		$3,589.84 (11% off) 1
009 8514501
BEARING
CUSCINETTO 		$107.41 (11.2% off) 2
010 5233369
PLUG
GHIERA 		$223.00 (11.2% off) 2
011 51001033
PHONIC WHEEL
RUOTA FONICA 		$446.00 (11.2% off) 2
012 51001038
PIN
PERNO 		$653.45 2
013 51001075LB
LOCKING WHEEL BOLT SET
(includes 1 bolt for each wheel and removal tool) 		- 1 Enquire
013 51001075
STUD
COLONNETTA 		$30.61 (11.1% off) 10
014 51001073
FRONT RIM
CERCHIO RUOTA ANTERIORE 		$1,359.87 2
015 51001139
TYRE REVOLUT. SENS.
SENSORE GIRI RUOTA LAVOR. 		$234.53 2
016 51001477
SUPPORT - SUPPORTO
O 		- 2 Enquire
017 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
018 WHT002963
WASHER
RONDELLA
IN STOCK 		$0.12 (98.4% off) 2
019 8100603
SCREW
VITE 		$1.28 (82.6% off) 2
