Exhaust System 2

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Exhaust System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

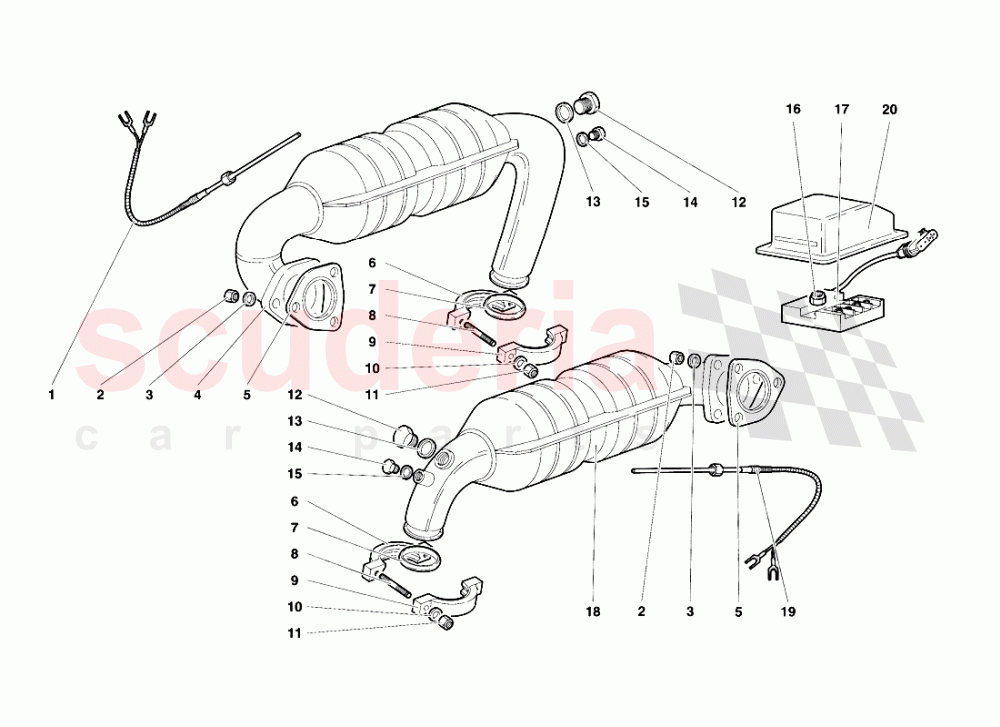

Exhaust System 2 of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 R1470005
THERMOCOUPLE KIT
(x2 heat probs & x1 ECU) 		$1,281.49 1
002 N02214621
HEXAGON NUT M8 SELF-LOCKING
DADO
IN STOCK 		$81.90 6
003 8440806
WASHER
use : WHT001185 		$0.25 (96.6% off) 6
004 4431146
RIGHT CATALYTIC CON.
CONVERTITORE CATALITICO DX 		$5,875.80 1
005 4432145
GASKET
GUARNIZIONE 		$42.15 2
006 4425084
HALF RING
SEMIANELLO FILETTATO 		$468.55 2
007 4424070
BI-CONE RING
ANELLO DOPPIO CONO 		$155.53 2
008 N0444416
STUD BOLT
PRIGIONIERO
IN STOCK 		$3.65 (48.2% off) 4
009 4425084
HALF RING
SEMIANELLO 		$468.55 2
010 8440806
WASHER
use : WHT001185 		$0.25 (96.6% off) 4
011 N02214621
HEXAGON NUT M8 SELF-LOCKING
DADO
IN STOCK 		$81.90 4
012 4431147
PLUG
TAPPO 		$49.89 2
013 N91122801
WASHER 18,5X24X1,5
RONDELLA
IN STOCK 		$2.83 (60.6% off) 2
014 4431148
PLUG
TAPPO 		$31.45 (11.2% off) 2
015 WHT001191
WASHER
RONDELLA
IN STOCK 		$0.35 (95.2% off) 2
016 WHT002959
CLAMPING NUT
DADO
IN STOCK 		$0.77 (89.4% off) 2
017 6033680
ELECTR. CONT. UNIT
CENTRALINA ELETTRONICA 		- 1 Enquire
018 4431143
LEFT CATALYTIC CON.
CONVERTITORE CATALITICO SX 		$14,140.95 1
019 6033687
THERMOCOUPLE
TERMOCOPPIA (L=500 MM) 		- 1 Enquire
020 5934453
SHIELD
PROTEZIONE 		$40.29 (11% off) 1
