Phase Sensors of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

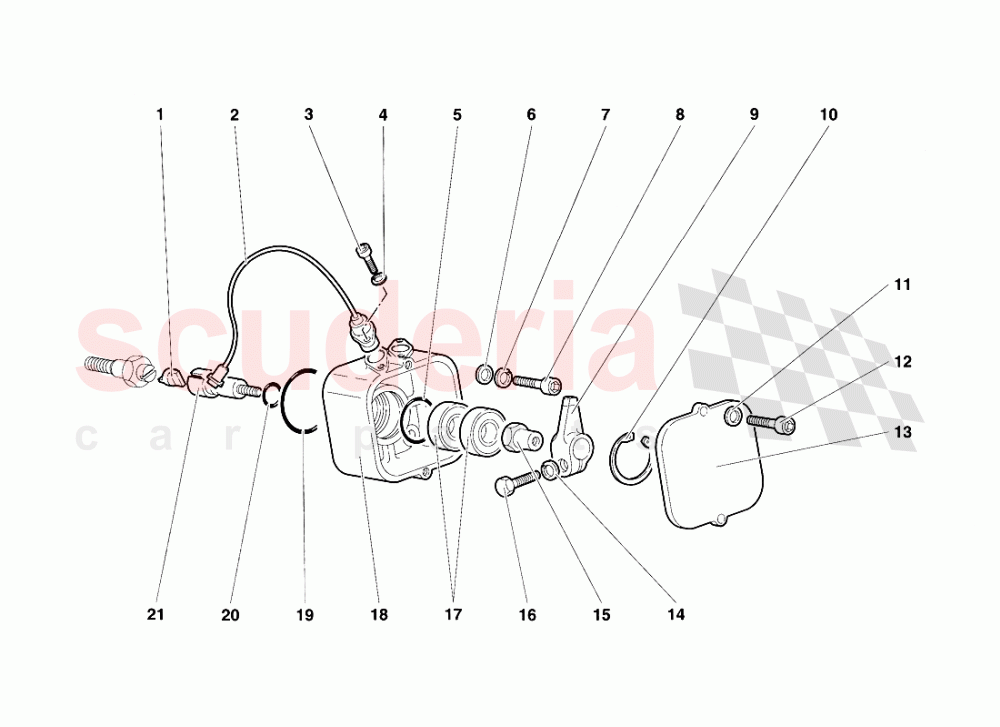

Lamborghini Diablo SV (1995-1997) - Phase Sensors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1634052	COUPLING	1634052 COUPLING GIUNTO A CROCE	$322.81 MSRP: ~~362.00~~ (10.8% off)	1
002	556742296801	TIMING SENSOR	556742296801 TIMING SENSOR (replaces: 001625411)	-	1	Enquire
002	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$651.00	2
003	N10648502	SCREW M5X10 IN STOCK	N10648502 SCREW M5X10 VITE IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	4
004	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	4
005	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$3.87	1
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
007	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	4
008	WHT003101	SCREW IN STOCK	WHT003101 SCREW VITE IN STOCK	$1.37 MSRP: ~~7.26~~ (81.1% off)	4
009	1632292	PULSE GENERATOR	1632292 PULSE GENERATOR GENERATORE Dl IMPULSI	$206.38 MSRP: ~~224.00~~ (7.9% off)	1
010	7M109381	RETAINING RING IN STOCK	7M109381 RETAINING RING ANELLO RITEGNO IN STOCK	$1.56 MSRP: ~~7.14~~ (78.2% off)	1
011	8410503	WASHER	8410503 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
012	8700504	SCREW	8700504 SCREW VITE	$0.08	2
013	1634715	COVER	1634715 COVER COPERCHIO	$66.07	1
014	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	1
015	1632291	NUT	1632291 NUT DADO	$51.83 MSRP: ~~56.30~~ (7.9% off)	1
016	8100607	SCREW	8100607 SCREW VITE	$5.41	1
017	410109264	BEARING IN STOCK	410109264 BEARING CUSCINETTO IN STOCK	$27.34	2
018	1635932	CASE	1635932 CASE SCATOLA	$206.38	1
019	8605001	SEAL IN STOCK	8605001 SEAL ANELLO TENUTA IN STOCK	$1.05 MSRP: ~~7.28~~ (85.6% off)	1
020	8600901	SEAL	8600901 SEAL use : WHT003058	-	1	Enquire
021	1632289	SMALL SHAFT	1632289 SMALL SHAFT ALBERINO	$69.17 MSRP: ~~75.10~~ (7.9% off)	1
