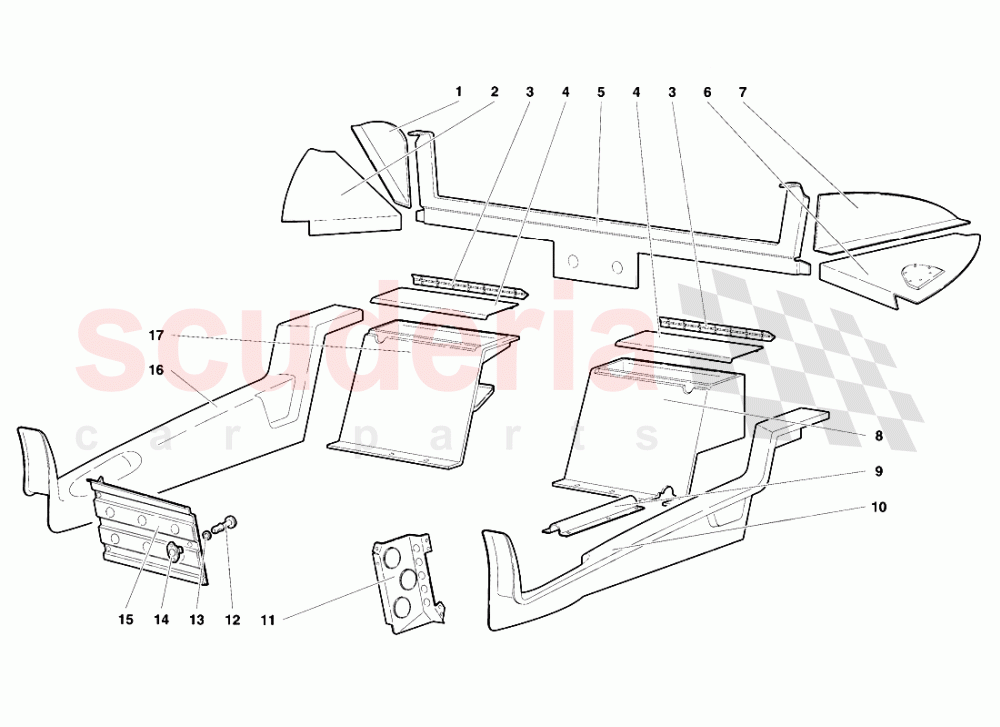

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9458248	RIGHT PANEL	9458248 RIGHT PANEL PANNELLO DX	$94.82 MSRP: ~~101.50~~ (6.6% off)	1
002	9458245	RIGHT LOWER PANEL	9458245 RIGHT LOWER PANEL PANNELLO INFERIORE DX	$345.55	1
003	9458377	HINGE	9458377 HINGE CERNIERA	$8.54	2
004	9458375	LID	9458375 LID SPORTELLO	$916.60	2
005	9458247	PANEL	9458247 PANEL PANNELLO	$163.87	1
006	9458246	LEFT LOWER PANEL	9458246 LEFT LOWER PANEL PANNELLO INFERIORE SX	$198.00	1
007	9458249	LEFT PANEL	9458249 LEFT PANEL PANNELLO SX	$94.82 MSRP: ~~101.50~~ (6.6% off)	1
008	9458369	LEFT UTILITY HOLDER	9458369 LEFT UTILITY HOLDER PORTAOGGETTI SX	$1,995.93	1
009	9458378	WIRE SHIELD	9458378 WIRE SHIELD PROTEZIONE CAVO	$48.69	1
010	9458367	LEFT PANEL	9458367 LEFT PANEL COPRIBRANCARDO SX	$5,946.79	1
011	4135230	PLATE	4135230 PLATE PIASTRA	$340.09	1
012	9458391	PIN	9458391 PIN VITE Dl FERMO	$11.48 MSRP: ~~12.35~~ (7% off)	3
013	9458350	RUBBER RING	9458350 RUBBER RING ANELLO COMMA	$0.83 MSRP: ~~7.22~~ (88.5% off)	3
014	9458349	CLIP	9458349 CLIP FERMAGLIO	$5.65 MSRP: ~~6.15~~ (8.1% off)	3
015	9458383	PLATE	9458383 PLATE PIASTRA POGGIAPIEDI	$113.45 MSRP: ~~121.50~~ (6.6% off)	1
016	9458366	RIGHT PANEL	9458366 RIGHT PANEL COPRIBRANCARDO DX	$7,805.16	1
017	9458368	RIGHT UTILITY HOLDER	9458368 RIGHT UTILITY HOLDER PORTAOGGETTI DX	-	1	Enquire
