Seats and Safety Belts of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

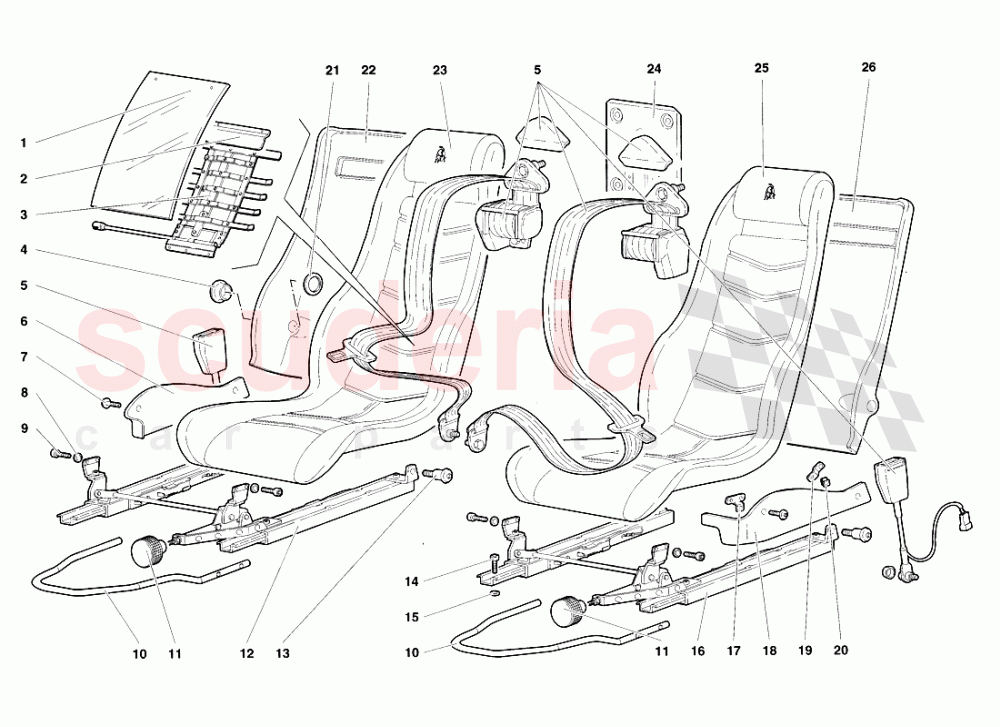

Lamborghini Diablo VT Roadster (1998-2000) - Seats and Safety Belts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9435123	SHIELD	9435123 SHIELD PROTEZIONE	-	2	Enquire
002	9435118	ANGLE PIECE	9435118 ANGLE PIECE ANGOLARE	$30.22 MSRP: ~~33.85~~ (10.7% off)	2
003	9435117	BACK-REST ADJU. - R.	9435117 BACK-REST ADJU. - R. REGOLATORE LOMBARE DX	-	1	Enquire
003	9435121	BACK-REST ADJU. - L.	9435121 BACK-REST ADJU. - L. REGOLATORE LOMBARE SX	-	1	Enquire
004	9435119	BUSHING	9435119 BUSHING BOCCOLA	$75.97	2
005	97001596	SEATS BELTS	97001596 SEATS BELTS CINTURE Dl SICUREZZA	$439.12	1
006	9435331	RIGHT SIDE PANEL	9435331 RIGHT SIDE PANEL PANNELLO LATERALE DX	$70.80 MSRP: ~~76.70~~ (7.7% off)	1
007	8700544	SCREW	8700544 SCREW VITE	$1.62	4
008	8410601	WASHER	8410601 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	8
009	8700670	SCREW	8700670 SCREW VITE	$0.26 MSRP: ~~7.35~~ (96.5% off)	8
010	9435207	LEVER	9435207 LEVER LEVA	-	2	Enquire
011	9435264	KNOB	9435264 KNOB POMELLO	$6.07 MSRP: ~~6.60~~ (8% off)	2
012	9435018	RIGHT SEAT GUIDE	9435018 RIGHT SEAT GUIDE GUIDA SEDILE DX	$949.23 MSRP: ~~1,030.00~~ (7.8% off)	1
013	9435232	PIN	9435232 PIN PERNO	$29.15 MSRP: ~~32.70~~ (10.9% off)	4
014	8700847	SCREW	8700847 SCREW VITE	$1.73 MSRP: ~~7.06~~ (75.5% off)	8
015	9435257	SPACER	9435257 SPACER DISTANZIALE	$13.51	8
016	9435019	LEFT SEAT GUIDE	9435019 LEFT SEAT GUIDE GUIDA SEDILE SX	$949.23 MSRP: ~~1,030.00~~ (7.8% off)	1
017	9435263	LEFT BRACKET	9435263 LEFT BRACKET STAFFA SX	$6.24 MSRP: ~~6.85~~ (8.9% off)	1
017	9435262	RIGHT BRACKET	9435262 RIGHT BRACKET STAFFA DX	$6.24 MSRP: ~~6.85~~ (8.9% off)	1
018	9435332	RIGHT SIDE PANEL	9435332 RIGHT SIDE PANEL PANNELLO LATERALE SX	$70.80 MSRP: ~~76.70~~ (7.7% off)	1
019	9435261	BRACKET	9435261 BRACKET STAFFA	$6.24 MSRP: ~~6.85~~ (8.9% off)	2
020	8220503	CLIP	8220503 CLIP MOLLETTA	$9.76 MSRP: ~~10.90~~ (10.5% off)	4
022	9435112	R. REAR PANEL SEAT	9435112 R. REAR PANEL SEAT PANNELLO RETROSCHIENALE DX	$213.04 MSRP: ~~231.00~~ (7.8% off)	1
023	9935004	RIGHT SEAT	9935004 RIGHT SEAT SEDILE DX	-	1	Enquire
024	9490324	SUPPORT - SUPPORTO	9490324 SUPPORT - SUPPORTO O	$63.18	1
025	9935005	LEFT SEAT	9935005 LEFT SEAT SEDILE SX	-	1	Enquire
026	9435113	L. REAR PANEL SEAT	9435113 L. REAR PANEL SEAT PANNELLO RETROSCHIENALE SX	$213.04 MSRP: ~~231.00~~ (7.8% off)	1
