Front Wheel and Hub Carrier of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

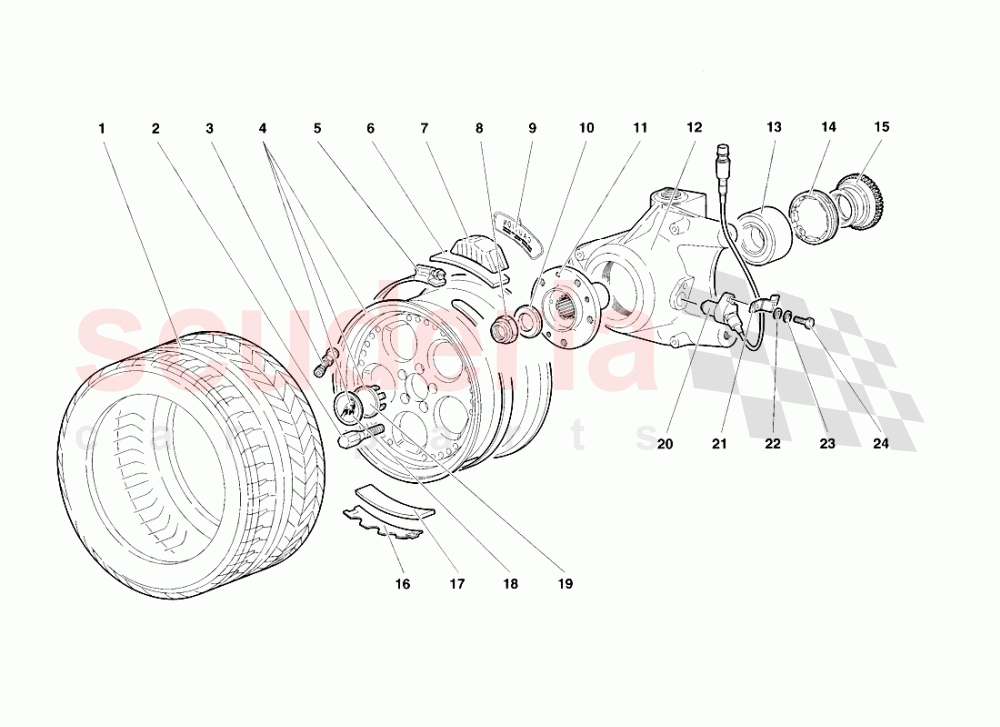

Lamborghini Diablo VT Roadster (1998-2000) - Front Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	51000542	FRONT TYRE	51000542 FRONT TYRE PNEUMATICO ANT. 235/35 ZR 18	$901.15	2
002	51001075LB	LOCKING WHEEL BOLT SET	51001075LB LOCKING WHEEL BOLT SET (includes 1 bolt for each wheel and removal tool)	-	1	Enquire
002	51001075	STUD	51001075 STUD COLONNETTA	$30.62 MSRP: ~~34.45~~ (11.1% off)	10
003	5335195	SUPPORT - SUPPORTO	5335195 SUPPORT - SUPPORTO VALVOLA	$30.62 MSRP: ~~34.45~~ (11.1% off)	2
004	51001024	FRONT RIM 18''	51001024 FRONT RIM 18''	$1,519.87	2
005	5131893	STRAP	5131893 STRAP FASCETTA	-	2	Enquire
006	5131894	GASKET	5131894 GASKET PROTEZIONE	$2.49 MSRP: ~~2.70~~ (7.8% off)	2
007	5136176	LOW TYRE P. SENSOR	5136176 LOW TYRE P. SENSOR TRASMETTITORE PRESSIONE	$1,093.28	2
008	410407338	NUT	410407338 NUT DADO	$573.14	2
009	5132551	PLATE	5132551 PLATE TARGHETTA	$15.10	2
010	410407631	WASHER	410407631 WASHER	$174.20	2
011	51001039	HUB	51001039 HUB MOZZO	$514.19 MSRP: ~~577.00~~ (10.9% off)	2
012	51000983	LEFT HUB HOUSING	51000983 LEFT HUB HOUSING PORTAMOZZO SX	$3,591.20 MSRP: ~~4,035.00~~ (11% off)	1
012	51000984	RIGHT HUB HOUSING	51000984 RIGHT HUB HOUSING PORTAMOZZO DX	$3,591.20 MSRP: ~~4,035.00~~ (11% off)	1
013	8514501	BEARING	8514501 BEARING CUSCINETTO	$107.45 MSRP: ~~121.00~~ (11.2% off)	2
014	5233369	PLUG	5233369 PLUG GHIERA	$223.09 MSRP: ~~251.00~~ (11.1% off)	2
015	51001033	PHONIC WHEEL	51001033 PHONIC WHEEL RUOTA FONICA	$446.17 MSRP: ~~502.00~~ (11.1% off)	2
016	5131892	BALANCE WEIGHT	5131892 BALANCE WEIGHT CONTRAPPESO	$30.68 MSRP: ~~33.30~~ (7.9% off)	2
017	5131895	GASKET	5131895 GASKET PROTEZIONE	$3.19 MSRP: ~~3.50~~ (8.9% off)	2
018	52006282	ORNAMENT	52006282 ORNAMENT FREGIO	$168.13	2
019	5236021	SUPPORT - SUPPORTO	5236021 SUPPORT - SUPPORTO O	-	2	Enquire
020	51001139	TYRE REVOLUT. SENS.	51001139 TYRE REVOLUT. SENS. SENSORE GIRI RUOTA LAVOR.	$234.61	2
021	51001477	SUPPORT - SUPPORTO	51001477 SUPPORT - SUPPORTO O	-	2	Enquire
022	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
023	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	2
024	8100603	SCREW	8100603 SCREW VITE	$1.28 MSRP: ~~7.35~~ (82.6% off)	2
