Fuel System 3 of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

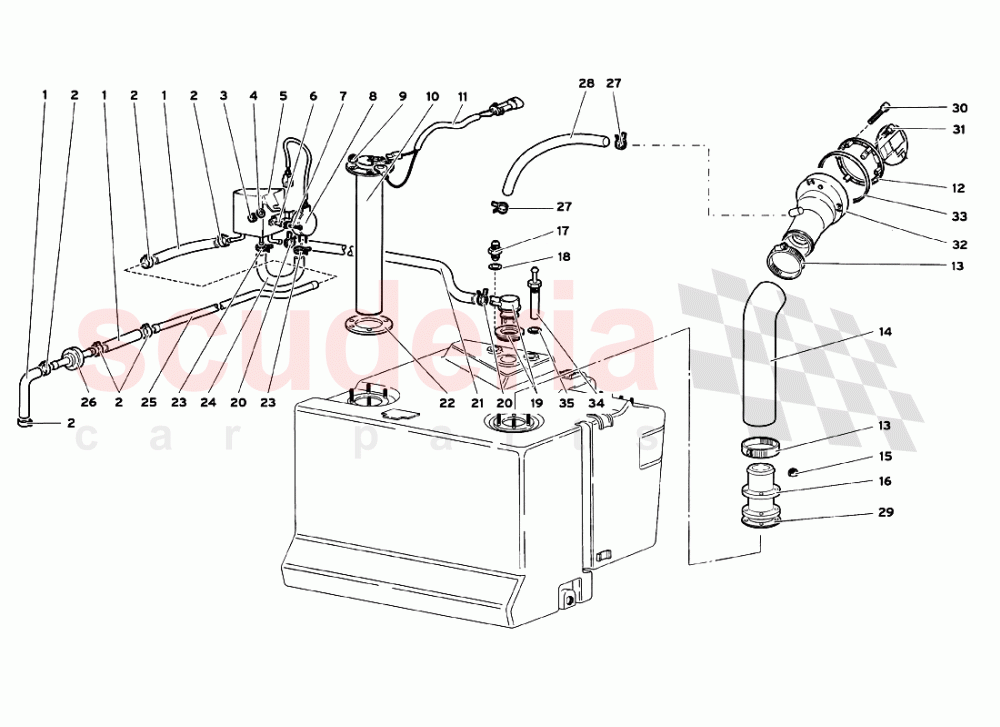

Lamborghini Diablo GT (1999-2000) - Fuel System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	62001398	PIPE	62001398 PIPE TUBO	$12.51 MSRP: ~~13.50~~ (7.3% off)	3
002	8831528	CLAMP	8831528 CLAMP FASCETTA	$8.79	6
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	1
004	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
005	62001351	SEGREGATOR	62001351 SEGREGATOR SEPARATORE VAPORI BENZ.	$299.30 MSRP: ~~431.00~~ (30.6% off)	1
006	62001396	RUBBER BUSHING	62001396 RUBBER BUSHING BOCCOLA COMMA	$1.91 MSRP: ~~2.10~~ (9% off)	2
007	8700346	SCREW	8700346 SCREW VITE	$0.08 MSRP: ~~7.38~~ (98.9% off)	2
008	400906206	EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	400906206 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	$2,477.47	1
009	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	5
010	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE INDICATORE LIVELLO CARBUR.	$320.81 MSRP: ~~666.00~~ (51.8% off)	1
011	6135126	ELECT CABLE	6135126 ELECT CABLE CABLAGGIO GALLEGGIANTE	$8.97 MSRP: ~~9.75~~ (8% off)	1
012	9490521	TANK CAP	9490521 TANK CAP TAPPO SERBATOIO	$232.22	1
013	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
014	62004384	PIPE	62004384 PIPE TUBO	$109.80	1
015	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.78 MSRP: ~~7.26~~ (89.3% off)	6
016	62004581	UNION	62004581 UNION BOCCHETTONE	$903.95	1
017	62001267	CONNECTION	62001267 CONNECTION RACCORDO	$31.57 MSRP: ~~35.40~~ (10.8% off)	1
018	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
019	62001272	ROLL OVER VALVE	62001272 ROLL OVER VALVE VALVOLA ROLL OVER	$316.20 MSRP: ~~343.00~~ (7.8% off)	1
020	8830131	CLAMP	8830131 CLAMP FASCETTA	$5.55	2
021	62001160	PIPE	62001160 PIPE TUBO	$12.97 MSRP: ~~14.45~~ (10.2% off)	1
022	6229649	FUEL LEVEL GAUGE FLANGE SEAL IN STOCK	6229649 FUEL LEVEL GAUGE FLANGE SEAL GUARNIZIONE IN STOCK	$27.86	1
023	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
024	62001397	PIPE	62001397 PIPE TUBO	$5.44 MSRP: ~~5.95~~ (8.6% off)	1
025	6237081	PIPE	6237081 PIPE TUBO	$41.76 MSRP: ~~45.10~~ (7.4% off)	1
026	62001313	VALVE	62001313 VALVE VALVOLA	$29.72 MSRP: ~~32.15~~ (7.6% off)	1
027	8830214	STRAP	8830214 STRAP FASCETTA	$3.52	2
028	62005002	PIPE	62005002 PIPE TUBO SFIATO	$30.76	1
029	6205360	GASKET IN STOCK	6205360 GASKET GUARNIZIONE IN STOCK	$131.42	1
030	8740505	SCREW	8740505 SCREW VITE	$0.32	3
031	8740512	DOWEL	8740512 DOWEL GRAND	$0.19	3
032	62004922	UNION IN STOCK	62004922 UNION BOCCHETTONE IN STOCK	$450.53 MSRP: ~~853.00~~ (47.2% off)	1
033	9490527	GASKET	9490527 GASKET GUARNIZIONE	$80.26	1
034	62006319	CONNECTION	62006319 CONNECTION RACCORDO	$57.46	1
035	8402018	GASKET	8402018 GASKET GUARNIZIONE	$10.35	1
