Clutch Control Levers of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

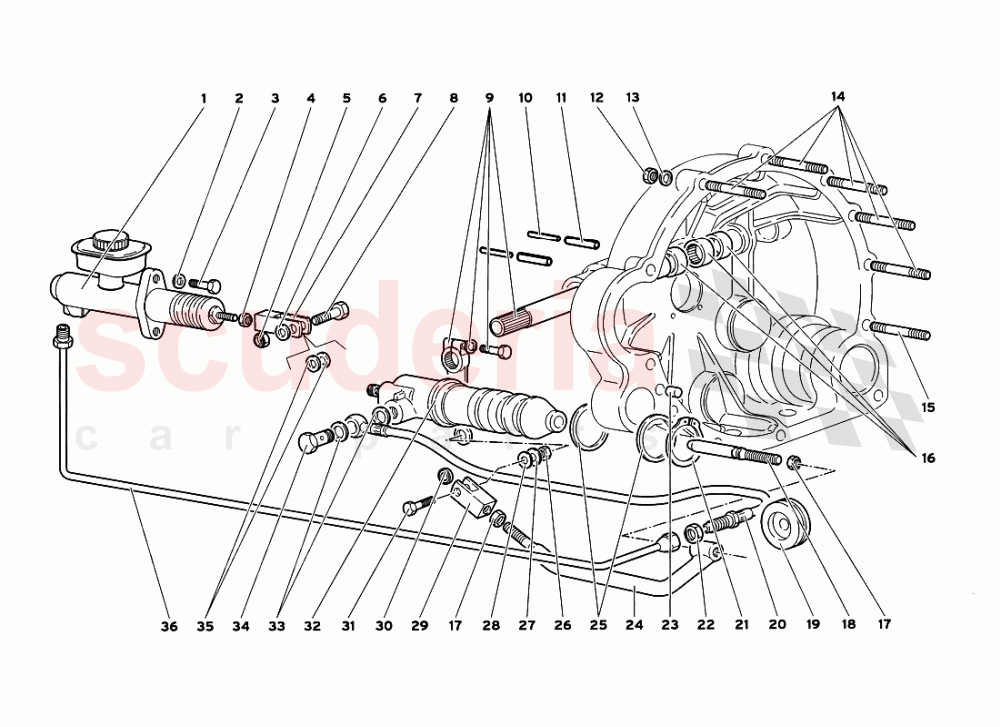

Lamborghini Diablo GT (1999-2000) - Clutch Control Levers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4219984	CLUTCH PUMP IN STOCK	4219984 CLUTCH PUMP POMPA FRIZIONE IN STOCK	$339.56	1
002	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
003	N0124032	SCREW	N0124032 SCREW VITE	-	2	Enquire
004	8200811	NUT	8200811 NUT DADO	$5.43 MSRP: ~~6.00~~ (9.5% off)	1
005	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	1
006	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 RONDELLA IN STOCK	$1.44	1
007	4219591	FORK	4219591 FORK FORCELLA	-	1	Enquire
008	2129460	JOURNAL	2129460 JOURNAL PERNO	$30.21 MSRP: ~~32.70~~ (7.6% off)	1
009	2134952	SHAFT	2134952 SHAFT ALBERO	$595.98 MSRP: ~~645.00~~ (7.6% off)	1
010	8900505	PIN - SPINA	8900505 PIN - SPINA SA	-	2	Enquire
011	8900804	PIN - SPINA	8900804 PIN - SPINA SA	$1.76 MSRP: ~~7.25~~ (75.7% off)	2
012	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	11
013	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	11
014	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.67	5
015	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.80	1
016	8522204	ROLLER CAGE	8522204 ROLLER CAGE CUSCINETTO	$18.76 MSRP: ~~20.90~~ (10.2% off)	3
017	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.01 MSRP: ~~7.24~~ (72.2% off)	2
018	2134687	ROD	2134687 ROD PUNTALE	$842.45	1
019	8612804	RUBBER RING	8612804 RUBBER RING ANELLO COMMA	$5.86 MSRP: ~~6.55~~ (10.5% off)	1
020	2137394	FLEX. HOSE	2137394 FLEX. HOSE TUBO FLESSIBILE	$198.45	1
021	8583701	RETAINER RING IN STOCK	8583701 RETAINER RING ANELLO RITEGNO IN STOCK	$0.51 MSRP: ~~7.31~~ (93% off)	1
022	8201216	NUT	8201216 NUT DADO	$4.38	1
023	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
024	2134956	IDLE LEVER	2134956 IDLE LEVER RINVIO A LEVA	$2,592.12	1
025	2129128	SPACER	2129128 SPACER DISTANZIALE	$57.12	2
026	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	1
027	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
028	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
029	2134957	FORK	2134957 FORK FORCELLA	$206.57	1
030	4225225	COUPLING	4225225 COUPLING TESTA A SNODO	-	1	Enquire
031	WHT002952	SCREW M8X1,25X30 IN STOCK	WHT002952 SCREW M8X1,25X30 VITE IN STOCK	$4.70	1
032	2136948	PUMP CYLINDER IN STOCK	2136948 PUMP CYLINDER CILINDRO POMPA IN STOCK	$129.85	1
033	WHT003544	WASHER IN STOCK	WHT003544 WASHER RONDELLA IN STOCK	$29.39	2
034	2134973	SCREW	2134973 SCREW VITE FORATA	$212.93	1
035	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	$0.54 MSRP: ~~7.29~~ (92.6% off)	2
036	2137085	PIPE	2137085 PIPE TUBO	$156.81 MSRP: ~~170.50~~ (8% off)	1
