Climate Control 2 of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

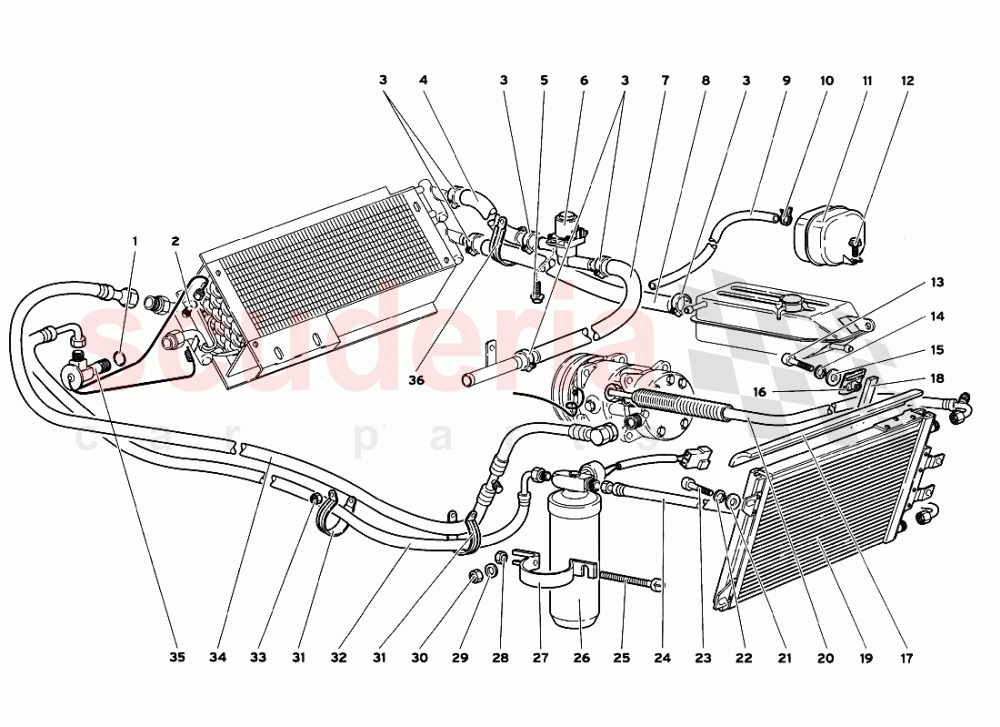

Lamborghini Diablo GT (1999-2000) - Climate Control 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4535912	SEAL	4535912 SEAL ANELLO TENUTA	$2.90 MSRP: ~~3.15~~ (7.9% off)	1
002	4535915	SEAL	4535915 SEAL ANELLO TENUTA	$1.80 MSRP: ~~2.00~~ (10% off)	1
003	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$40.98	6
004	4734346	PIPE	4734346 PIPE TUBO	$188.96	1
005	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
006	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	$280.44	1
007	4734347	PIPE	4734347 PIPE TUBO	$184.95	1
008	1734332	PIPE	1734332 PIPE TUBO	$373.60	1
009	62005141	PIPE	62005141 PIPE TUBO	-	1	Enquire
010	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.43	2
011	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO VUOTO	$42.27 MSRP: ~~45.90~~ (7.9% off)	1
012	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	2
013	8700614	SCREW	8700614 SCREW VITE	$0.25	2
014	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	2
015	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
016	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT IN STOCK	$1.23	2
017	4531592	GASKET	4531592 GASKET GUARNIZIONE	$8.66 MSRP: ~~9.45~~ (8.4% off)	2
018	4531591	GASKET	4531591 GASKET GUARNIZIONE	$1.80 MSRP: ~~2.00~~ (10% off)	2
019	45001234	A/C CONDENSER	45001234 A/C CONDENSER CONDENSATORE CONDIZIONATORE	$1,395.21 MSRP: ~~1,560.00~~ (10.6% off)	1
020	45001269	PIPE	45001269 PIPE TUBO	$490.08	1
021	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
022	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	4
023	8700614	SCREW	8700614 SCREW VITE	$0.25	4
024	45001270	PIPE	45001270 PIPE TUBO	$186.24 MSRP: ~~202.50~~ (8% off)	1
025	8700542	SCREW	8700542 SCREW VITE	$0.64 MSRP: ~~7.26~~ (91.2% off)	1
026	45003629	FILTER	45003629 FILTER FILTRO DEIDRATORE	$241.01	1
027	4531395	STRAP	4531395 STRAP FASCETTA	$8.33 MSRP: ~~9.30~~ (10.4% off)	1
028	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	1
029	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	2
030	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	2
031	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.07 MSRP: ~~13.50~~ (10.6% off)	6
032	4535415	PIPE	4535415 PIPE TUBO	$303.27 MSRP: ~~341.00~~ (11.1% off)	1
033	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	8
034	4535416	PIPE	4535416 PIPE TUBO	$289.91	1
035	4535412	VALVE	4535412 VALVE VALVOLA Dl ESPANSIONE	$337.87 MSRP: ~~366.00~~ (7.7% off)	1
036	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.07 MSRP: ~~13.50~~ (10.6% off)	2
