Electrical System 5

Lamborghini Diablo GT (1999-2000)

Find Your Part

Lamborghini Diablo GT (1999-2000) - Electrical System 5

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

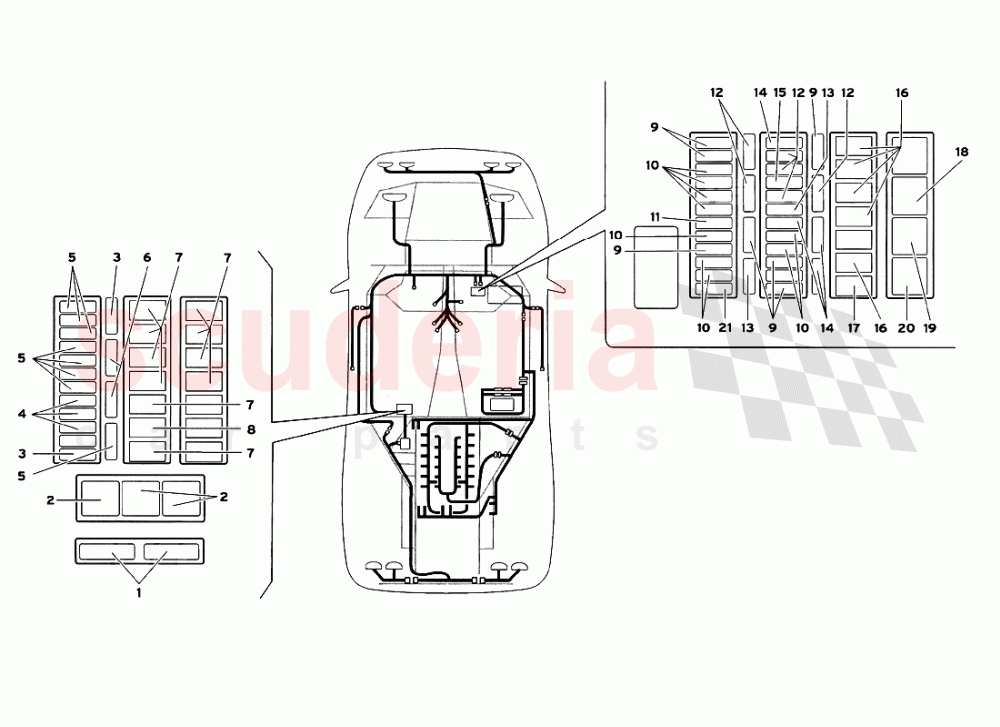

Electrical System 5 of Lamborghini Lamborghini Diablo GT (1999-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6038331
FUSE
FUSIBILE40A 		$6.49 2
002 6138330
RELAY
RELE70A 		$32.61 3
003 1638095
FUSE
FUSIBILE7.5A 		$0.64 (91.2% off) 3
004 1638096
FUSE
FUSIBILE10A 		$0.64 (91.2% off) 3
005 1638097
FUSE
FUSIBILE15A 		$0.43 (94.1% off) 8
006 1638094
FUSE
FUSIBILE5A 		$0.43 (94.1% off) 2
007 6138214
RELAY
RELE SIEMENS A302 		$11.86 (8.1% off) 10
008 6038006
RELAY
RELE SIEMENS A303 		$17.83 (10.6% off) 1
009 1638094
FUSE
FUSIBILE5A 		$0.43 (94.1% off) 7
010 1638097
FUSE
FUSIBILE15A 		$0.43 (94.1% off) 8
011 1638371
FUSE
FUSIBILE3A 		$0.43 (94.1% off) 1
012 1638096
FUSE
FUSIBILE10A 		$0.64 (91.2% off) 7
013 1638121
FUSE
FUSIBILE30A 		$0.64 (91.2% off) 2
014 1638098
FUSE
FUSIBILE20A 		$0.64 (91.2% off) 4
015 1638099
FUSE
FUSIBILE25A 		$0.43 (94.1% off) 1
016 6138214
RELAY
RELE SIEMENS A302 		$11.86 (8.1% off) 5
017 6138104
RELAY
CONNETTORE 		$7.07 (8.2% off) 1
018 6038007
RELAY
RELE ANABBAGLIANTI 		$11.40 (7.7% off) 1
019 6311154
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151
RELE VENTOLA CLIMATIZZ. 		$44.84 1
020 6138003
RELAY
RELE 		$29.79 (7.8% off) 1
021 6137306
DIODES ASSEMBLY
DIODO 		$17.20 (7.5% off) 1
